| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | GSJ0.2-3 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | $4300 1unit |
| Packaging Details: | Standard export packaging |
| Delivery Time: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 units |
| Application: | Agricultural | Test Report: | Provided |
|---|---|---|---|
| CE Certificate: | Provided | Packaging: | Standard Export Packing |
| Power: | Cooperated With Fortune 500,Competitive OEM Factory,Company Industry Experience(17 Year),Full Customization | Brand Name: | SINOLIFT |
| Minimum Order Quantity: | 1 UNIT | Method Of Payment: | L/C,D/P,D/A,T/T,Credit Card,PayPal |
| The Delivery Period: | Negotiation | Warranty: | 1 Year |
The (electric) pipe rail trolleys are invaluable to the horticultural industry. All machines can thus be moved easily and in a stable manner, which is how the transport mechanism got the name ‘pipe rail trolley’.
The greenhouse picking up machine is powered by traction batteries, can be charged easily with a high-frequency battery charger.
Harvesting trolleys are widely used in greenhouse horticulture for processing and transporting the harvest, and artificial pollination. The harvesting trolleys can be used for various crops, which include the cultivation of tomatoes, roses, and gerberas and so on.

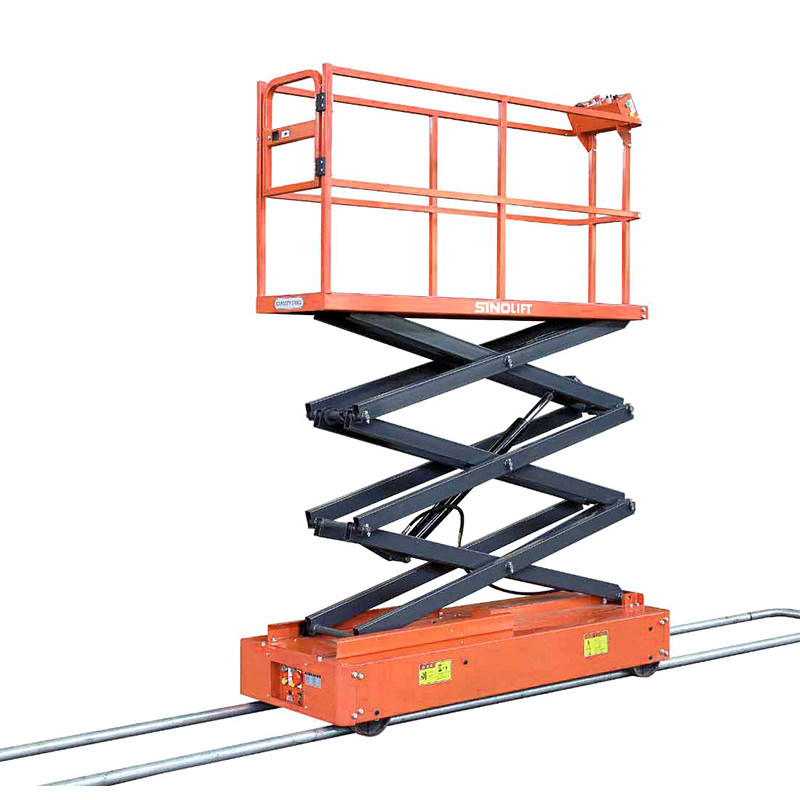

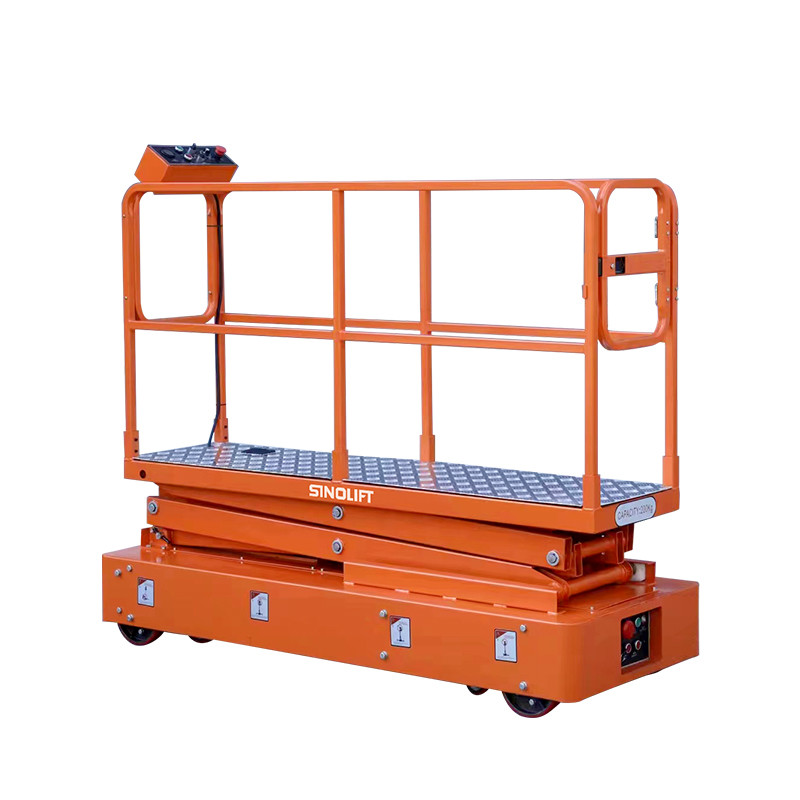

According to special ground and actual needs in the greenhouse, harvest trolley is designed. The trolley adopts electric chassis and hydraulic scissor lift table, which can achieve small size, low noise, stepless speed control, simple structure and zero emission.
|
Model Number |
|
GSJT0.2-3 |
GSJT0.2-4 |
GSJT0.2-3W |
GSJT0.2-4W |
|
Lifting capacity |
kg |
200 |
150 |
200 |
150 |
|
Maximum working height |
mm |
5000 |
6000 |
5000 |
6000 |
|
Maximum platform height |
mm |
3000 |
4000 |
3000 |
4000 |
|
Minimum platform height |
mm |
600 |
705 |
600 |
705 |
|
Whole length |
mm |
1935 |
|||
|
Whole width |
mm |
770 |
1020 |
||
|
Whole height |
mm |
1655 |
1760 |
1655 |
1760 |
|
Platform size |
mm |
1910x510 |
1910x650 |
||
|
Minimum ground clearance |
mm |
70 |
|||
|
Distance between track centrelines |
mm |
550 |
800 |
||
|
Diameter / thickness of track |
mm |
48/2.5~4.0 |
|||
|
Driving Motor |
v/kw |
24/0.5 |
|||
|
Lifting Motor |
v/kw |
24/2.2 |
|||
|
Running speed |
km/h |
0~3.5 |
|||
|
Rising/falling speed |
sec |
12/14 |
18/20 |
12/14 |
18/20 |
|
Battery |
V/Ah |
2×12/802×12/80 |
2×12/108 |
||
|
Charger |
V/A |
24/15 |
|||
|
Wheel |
mm |
φ200x50 |
|||
|
Overall Net Weight |
kg |
520 |
590 |
590 |
660 |
|
The factory reserves the amending right for the materials And technical specifications. |
|||||
