| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | CDG |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

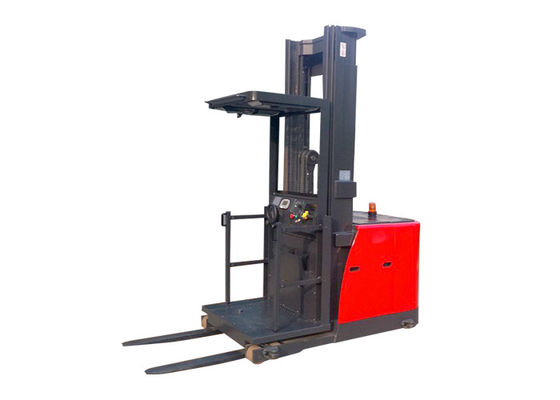

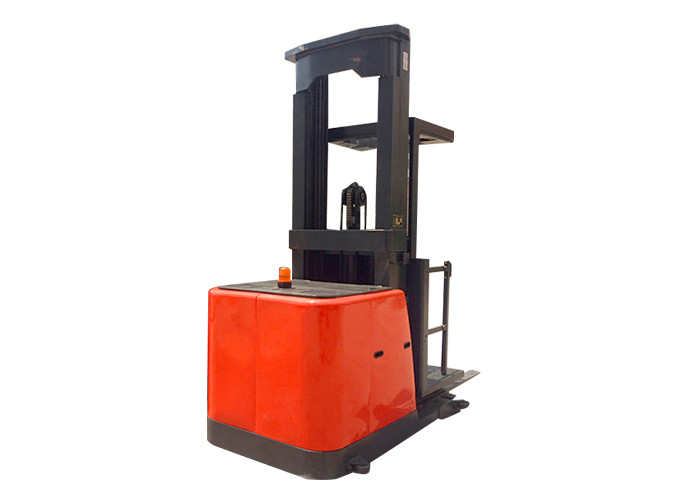

| Product Name: | CDG Self-propelled Full Electric Order Picker Smooth And Powerful Lifting And Running Capacity 500kg | Load Capacity: | 500kg |
|---|---|---|---|
| Wheels Size: | Φ140X80mm | Min. Turning Radius: | 1920mm |
| Max. Lifting Height: | 2700mm | Loading Platform(forks)size: | 800X620mm |
| Manned Platform Size: | 840X600mm | Width Of Single Fork: | 150mm |
| Pumping Power: | 2.2KW/24V | Overall Dimensions: | 1350X800X1800mm |
| Net Weight: | 1230Kg | Warranty: | 1 Year |
| Highlight: | 500kg Aerial Work Platform,Self Propelled Aerial Work Platform,2700mm aerial platform lift |
||
Feature:
1. Use of high-quality drive systems and pumping stations,lifting and running is smooth and powerful.
2. Configure large-capacity traction batteries, power lasting long, durable and reliable.
3. With a seat belt, seat belt firmly connected with the roof, to ensure operator safety.
4. Apply to the Treasury, workshops, supermarkets, stadiums and other high-altitude operation or maintenance operation selected.
Specification:
| Model | Unit | CDG500 |
| Load capacity | Kg | 500 |
| Wheels size | mm | Φ140*80 |
| Wheels material | PU | |
| Min. turning radius | mm | 1920 |
| Max. lifting height | mm | 2700 |
| Loading platform(forks)size | mm | 800*620 |
| Manned platform size(L*W) | mm | 840*600 |
| width of Single fork | mm | 150 |
| Lifting speed | m/min | 5 |
| Lowering speed | m/min | 4 |
| Pumping power | KW/V | 2.2/24 |
| Batteries (traction battery) | Ah/V | 210/24 |
| Driving wheel | KW/V | 1.2/24 |
| Walking speed | Km/h | 6 |
| Dimensions | mm | 1350*800*1800 |
| Net weight | Kg | 1230 |
