SINOLIFT WFH-181 load 181kg Industrial Manual Hydraulic Pallet Stacker

Basic Information
Place of Origin: CHINA
Brand Name: SINOLIFT
Model Number: WFH
Minimum Order Quantity: 1
Price: 470-500
Packaging Details: Standard export package
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 units
Application: Industrial Filed Type: Manual
Max.fork Height H1: Max.fork Height H1 Fork Length: 570mm
Key Words: Hydraulic Stacker Load Center Distance: Load Center Distance
After Warranty Service: After Warranty Service Capacity: 181/227

SINOLIFT WFH-181 load 181kg Industrial Manual Hydraulic Pallet Stacker

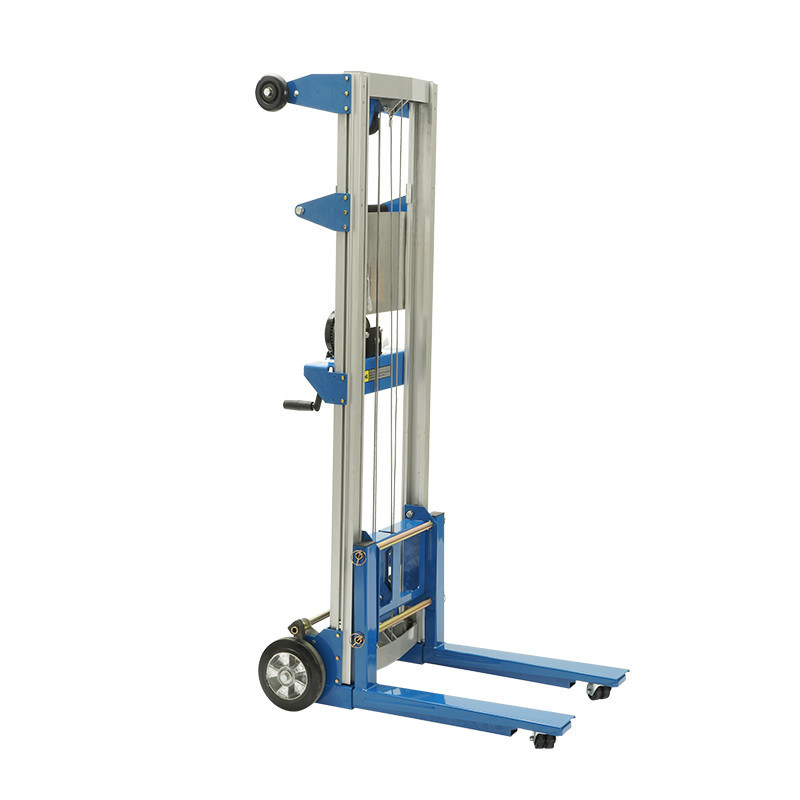

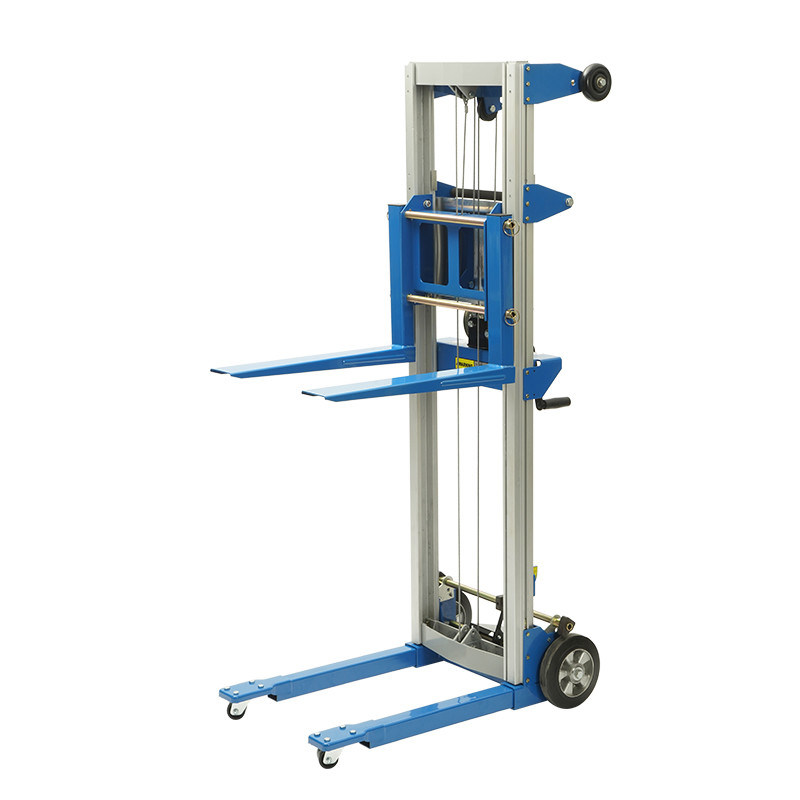

Hand Stacker
Disassembling and assembling is easy.
Can fit into smaller spaces when disassembled.
Equipped with wheels on the mast also allow it to be used as a trolley.
Light Alumium mast, easy for handling.
No any hydraulic problem, beasue it’s operated by winch.
The best brake function with special design is obvious.
Conforms to EN1757-1



Model



WFH-181

SW-181

SW-181BC

WFH-227

SW-227

SW-227BC

Capacity

Kg

181

181

181

227

227

227

Load center

mm

305

305

305

305

305

305

Max. fork height(Obverse forks)

mm

2500

2500

2500

1200

1200

1200

Max. fork height(Reverse forks)

mm

3100

3100

3100

1800

1800

1800

Min. fork height

mm

90

50

50

90

50

50

Fork length

mm

570

570

570

570

570

570

Straddle Leg Width

mm

630

730-1100

730-1100

630

730-1100

730-1100

Self weight

Kg

70

77

179

65

72

174
