| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | PJ+LP |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

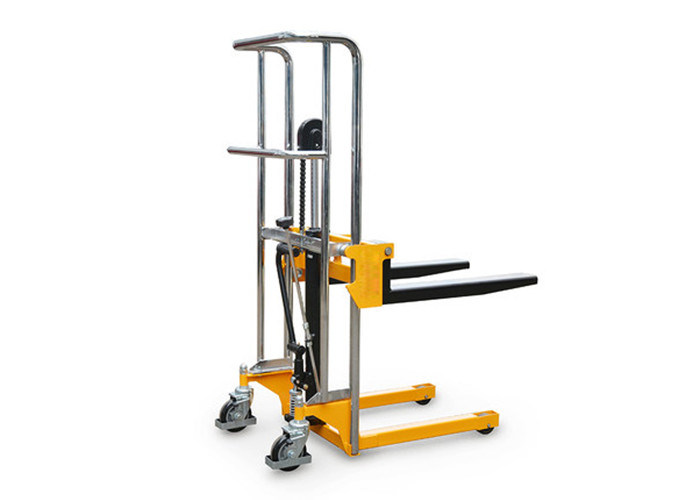

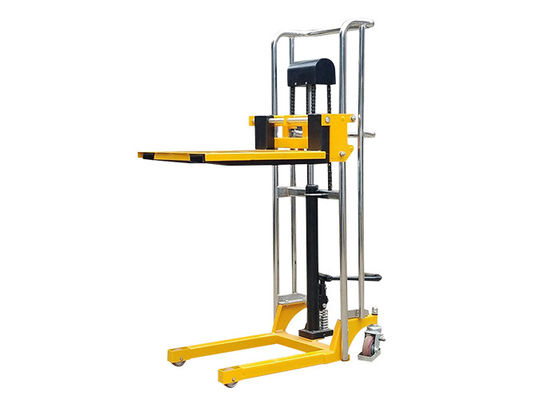

| Product Name: | Light Duty Mini Pallet Stacker With Removable Platform Capacity 400kg | Load Capacity: | 400Kg |
|---|---|---|---|
| Load Centre: | 350mm | Fork Max./Min.Height: | 85/1800mm |
| Fork Length: | 650mm | LP Platform: | 660X580mm |
| Fork Width: | 235-500mm | Front Wheel(PU): | Ф125×40mm |
| Rear Wheel(PU): | Ф75×30mm | Overall Dimension: | 1040X590X1060mm |
| Net Weight: | 75kg | Warranty: | 1 Year |
| High Light: | Light Duty Mini Pallet Stacker,Removable Platform Mini Pallet Stacker,400kg mini stacker |
||
Feature:
Light-duty design with easy and safe operation
High-quality oil cylinder with long service life
Chromium plated frame can be beautiful and durable
Widely used with low leg and various accessories as option
Specification:
| Model | PJ4085LP | PJ4120LP | PJ4150LP | PS4180LP | |
| Load Capacity | kg | 400 | 400 | 400 | 400 |
| Load Centre | mm | 350 | 350 | 350 | 350 |
| Fork Max./Min.Height | mm | 85/850 | 85/1200 | 85/1500 | 85/1800 |
| Fork Length | mm | 650 | 650 | 650 | 650 |
| LP Platform | mm | 660x580 | 660x580 | 660x580 | 660x580 |
| Fork Width | mm | 235-500 | 235-500 | 235-500 | 235-500 |
| Front Wheel(PU) | mm | Ф125×40 | Ф125×40 | Ф125×40 | Ф125×40 |
| Rear Wheel(PU) | mm | Ф75×30 | Ф75×30 | Ф75×30 | Ф75×30 |
| Total Length | mm | 1040 | 1040 | 1040 | 1040 |
| Total Width | mm | 590 | 590 | 590 | 590 |
| Total Height | mm | 1060 | 1410 | 1710 | 1710 |
| Min.Turning Radius | mm | 930 | 930 | 930 | 930 |
| Net Weight | kg | 75 | 81 | 85 | 85 |
| Option Platform | chromed LP10(660x580) or stainless LP20(660×580) | ||||
