| Place of Origin: | China |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | HY1001 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, MoneyGram |
| Supply Ability: | 1000 sets/mouth |

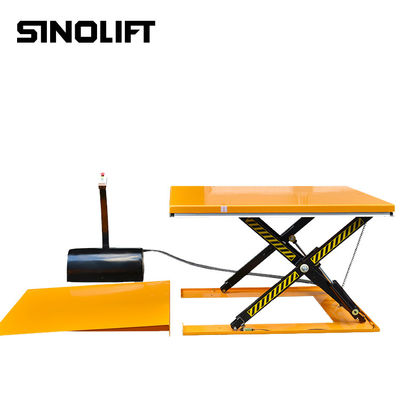

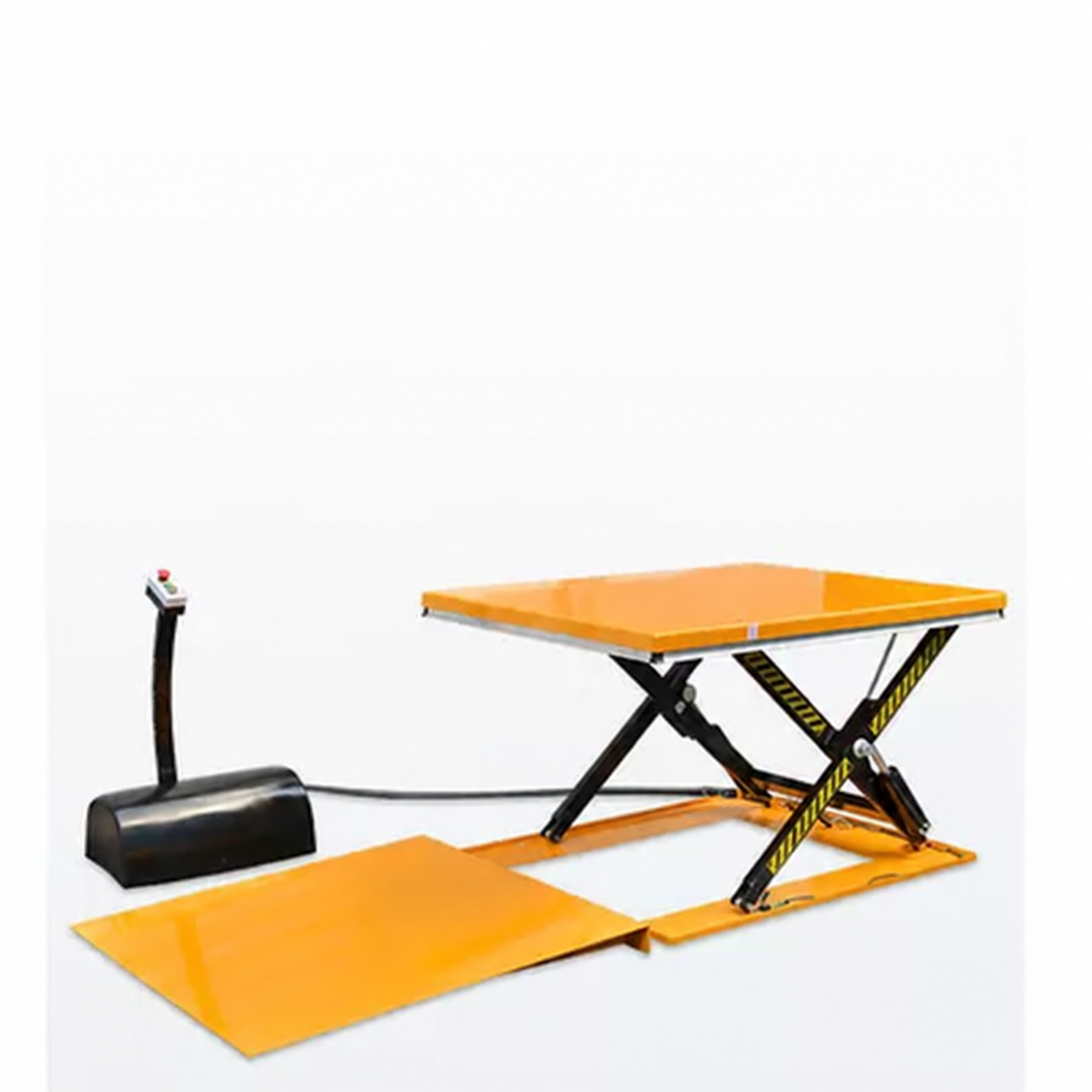

| Product Name: | Sinolift HY1000 Series Low Profile Electric Lift Lable Platform Capacity 1000kg | Rated Capacity: | 1000-1500kg |
|---|---|---|---|
| Min Height: | 105mm | Max. Height: | 860mm |
| Elevating Time: | 30S | Power Parameters: | 380V/50HZ |
| Certification: | CE,ISO9001 | Material: | Special Steel |
| Net Weight: | 380kg | Warranty: | 1 Year |
| After Service: | On-line Service,free Spart Parts | ||
| High Light: | Low Profile motorized lift table,CE electric hydraulic scissor lift,1000kg low profile electric lift table |
||
Feature:
1.High quality power unit for stable and safe lifting.
2.These tables achieve a low closed height, eliminating the need for a pit installation.
3.Control box with UP and DOWN buttons and emergency Stop.
4.Upper platform lifted with aluminum safety bar preveting descent on contact with obstructions.
5.Safety clearance between scissors to prevent trapping and equipped with overload protection system to ensure your sate operation.
6.Removable lifting eye to facilitable handing and lift table installation.
7.Meet EN1570 norm and ANSI/ASME safety standard.
Specification:
Model | HY1000E | HY1500E | |
Rated Lifting Capacity | Kg | 1000 | 1500 |
Platform Size | mm | 1450x1140 | 1600x1180 |
Size A | mm | 280 | 300 |
Size B | mm | 1080 | 1194 |
Size C | mm | 580 | 580 |
Min Height | mm | 85 | 105 |
Max Height | mm | 860 | 860 |
Base Size | mm | 1330x1080 | 1335x947 |
Elevating Time | S | 25-35 | 30-40 |
Power Parameters | 380/50 | 380/50 | |
N.W. | Kg | 280 | 380 |
