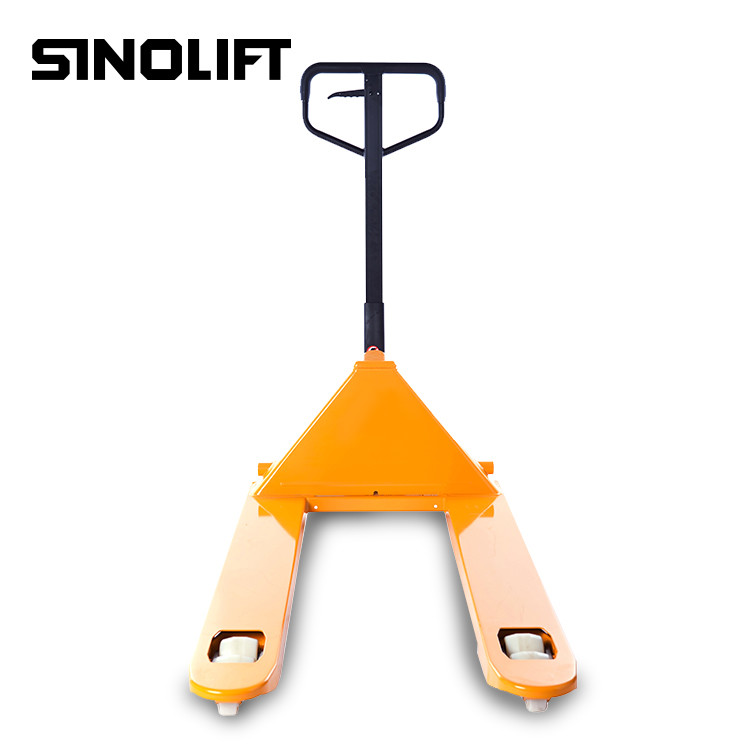

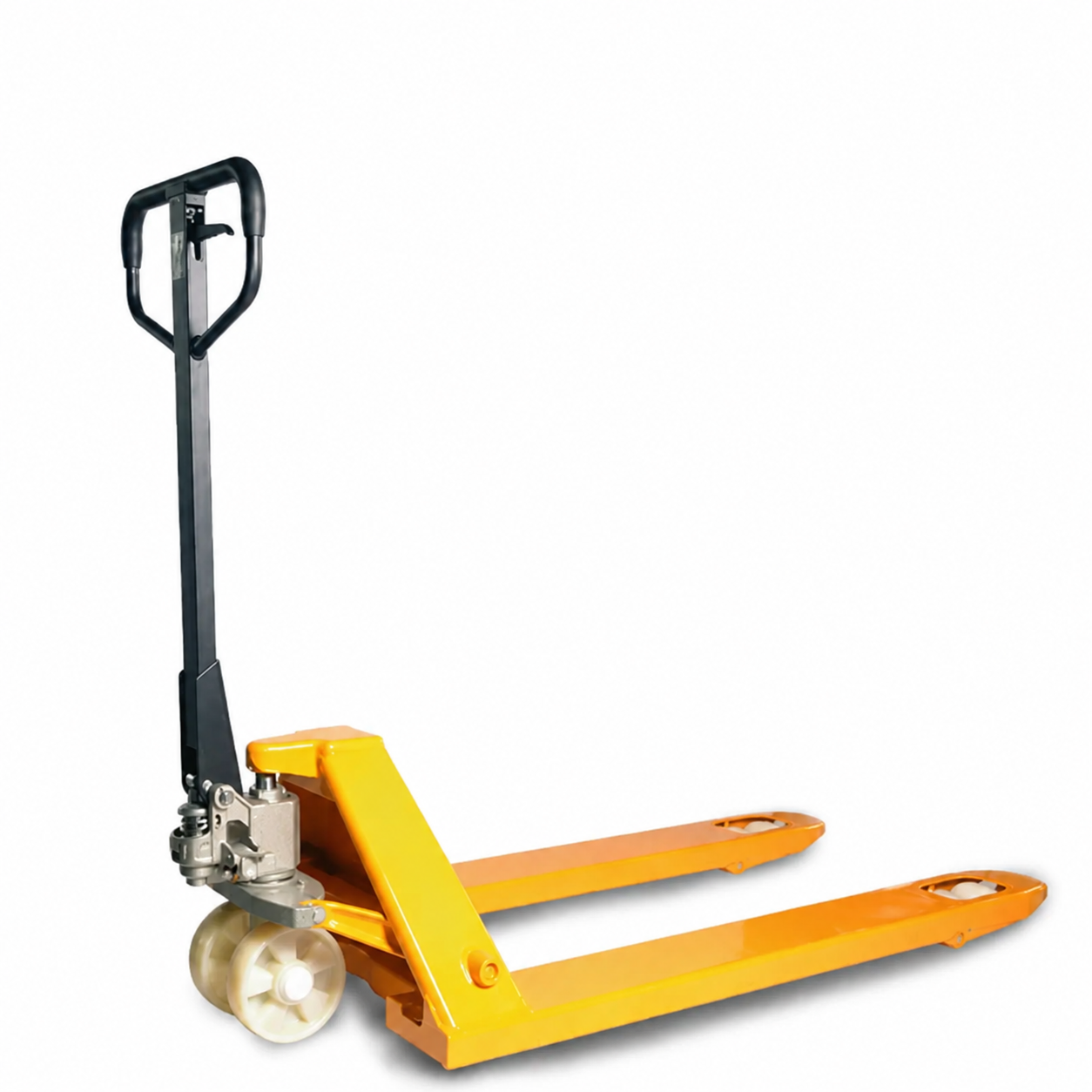

Product Name: | BF Series Lightweight Flexible Hand Pallet Truck Load Capacity 2000Kg-3000kg | Load Capacity: | 2000Kg-3000Kg |
---|---|---|---|
Min. Height: | 75mm | Lifting Height: | 110mm |
Total Lift Height: | 195mm | Fork Length: | 1220mm |
Width Over Forks: | 685mm | Self Weight: | 73-92Kg |
Certification: | CE,ISO9001 | Warranty: | 1 Year |
After Service: | On-line Service,Spare Parts |
Feature:
1.Patterned aluminum platform.
2.Frame made of aluminum alloy.
3.Four edges to be Anti-collision design.
4.Handle tube bases are installed on both sides, handle can be installed any side or both sides.
5.Two universal steering wheels and two fixed wheels are equipped to ensure smooth moving.
6.Widely applied in supermarket, meat industry and other food industry.
Specification:
Model | BF20 | BF25 | BF30 | |
Capacity | kg | 2000 | 2500 | 3000 |
Lowered height | mm | 85/75 | 85/75 | 85/75 |
Lifting height | mm | 110 | 110 | 110 |
Total lift height | mm | 195/185 | 195/185 | 195/185 |
Fork length | mm | 1150/1220 | 1150/1220 | 1150/1220 |
Width over forks | mm | 550/685 | 550/685 | 550/685 |
Self weight | kg | 73-92 | 73-92 | 73-92 |
Qty/20" FCL | pcs | 180/144 | 180/144 | 180/144 |
