| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | CPD-Z |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

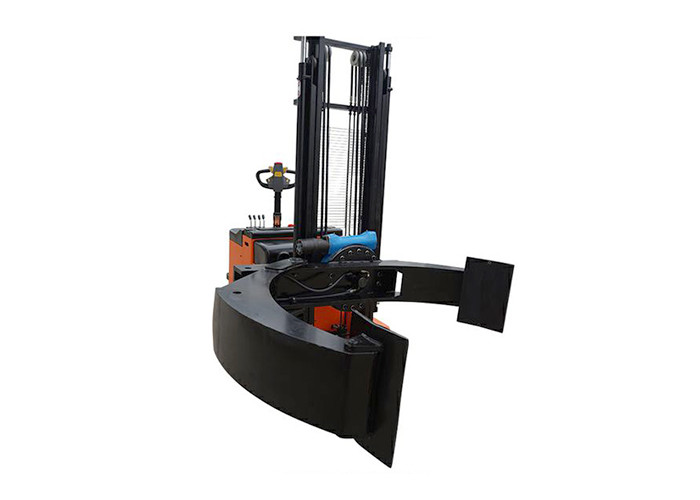

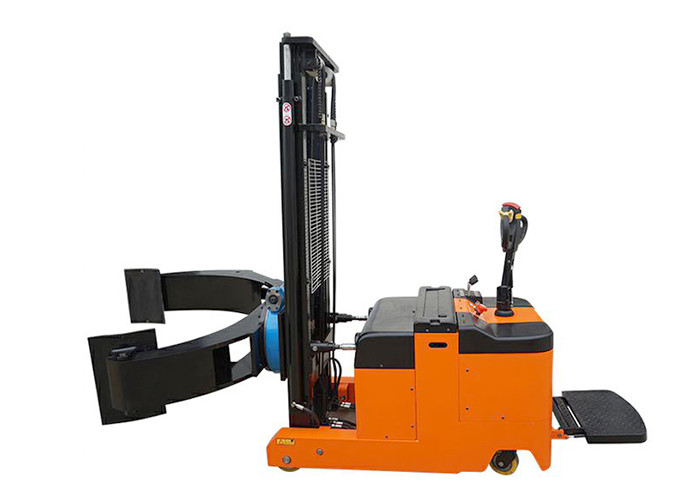

| Product Name: | CPD-Z Transverse Clamp Gripper Handling Trolley Load Capacity 500Kg-1000kg | Load Capacity: | 500Kg-1000Kg |
|---|---|---|---|
| Max.Lift Height: | 2500mm | Min.Clamp Height: | 520mm |
| Clamp Width: | 1535-1850mm | Clamp Length: | 1620mm |
| Paper Roll Diameter: | Φ200-500mm/Φ600-1000mm/Φ800-1500mm | Load Center: | 350mm |
| Lifting Motor: | 2.5KW | Driving Motor: | AC1.5KW |
| Net Weight: | 1460Kg | Warranty: | 1 Year |
Feature:
1.The mast of the Counter Balance Paper Roll Stacker have forward and back functions.
2.Use imported USA Curtis controller,infinitely variable speed drive to protect the operator safety.
3.Electric Lifting, Automatic Clamping, Electric Rotating ≥90 degree.
4.With unique clamp design, can clamp the rolls from the pallets or cars.
5.Widely used in paper, packaging, printing and textiles industries.
6.Handling rolls, carpet, cloth, cable, wood, steel and rolls tires etc.
Specification:
| Model | CPD0516Z-500 | CPD0525Z-500 | CPD0516Z-1000 | CPD0525Z-1000 | CPD1025Z-1500 | |
| Capacity | kg | 500 | 500 | 500 | 500 | 1000 |
| Lift max.height | mm | 1600 | 2500 | 1600 | 2500 | 2500 |
| Min.clamp height | 520 | 520 | 520 | 520 | 520 | |
| Clamp width | mm | 635-950 | 635-950 | 1135-1450 | 1135-1450 | 1535-1850 |
| Clamp length | mm | 820 | 820 | 1220 | 1220 | 1620 |
| Paper roll diameter | mm | Φ200-500 | Φ200-500 | Φ600-1000 | Φ600-1000 | Φ800-1500 |
| Load center | mm | 350 | 350 | 700 | 700 | 800 |
| α/β | 3°/5° | 3°/5° | 3°/5° | 3°/5° | 3°/5° | |
| Battery | V/Ah | 24/165 | 24/165 | 24/210 | 24/210 | 24/210 |
| Charger | V/A | 24/20 | 24/20 | 24/30 | 24/30 | 24/30 |
| Lifting motor | Kw | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Driving motor | Kw | AC1.5 | AC1.5 | AC1.5 | AC1.5 | AC1.5 |
| Weight | kg | 1048 | 1250 | 1460 | 1640 | 1860 |
| Over size L*W*H | mm | 2500*950*2000 | 2500*950*1785 | 2900*1500*2000 | 2900*1500*1785 | 3300*1900*1785 |
| Channel request | mm | 2900Turn | 2900Turn | 3600Turn | 3600Turn | 4000Turn |
| Forward and Back request | mm | 1000 | 1000 | 1600 | 1600 | 1900 |
| Driving wheel | mm | 1*Φ250*80 | ||||
| Training wheels | mm | 2*Φ150*50 | ||||
| Front wheels | mm | 2*Φ178*80 | ||||
| Climbing slope | % | 4/6 | ||||
| Travel speed | Km/h | 4/6 | ||||
| Lifting speed | mm/s | 45/50 | ||||
| Falling speed | mm/s | 50/45 | ||||
| Braking type | Electromagenetic braking | |||||
