Place of Origin: | China |
---|---|
Brand Name: | Sinolift |
Certification: | CE |
Model Number: | CDD-Z |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Sandard Export Package |
Delivery Time: | 15 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 5000 sets/mouth |

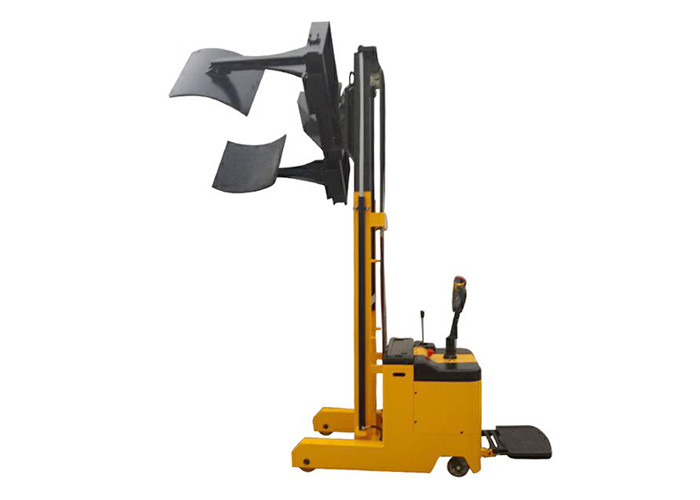

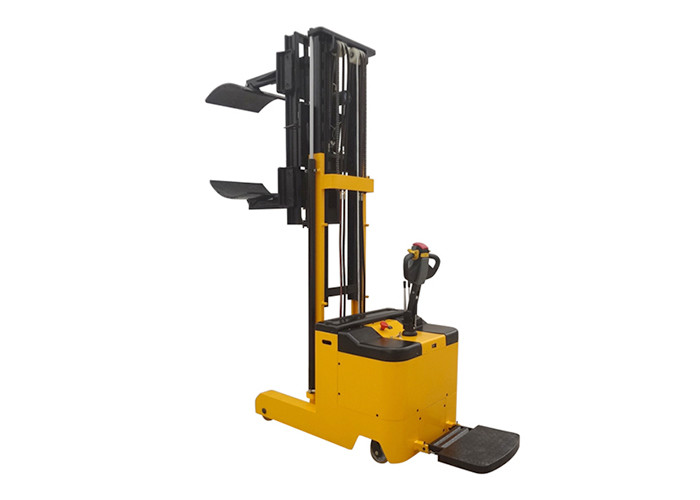

Product Name: | CDD-Z Transverse Clamp Gripper Handling Trolley With America Curtis Electric Controller Load Capacity 1000Kg | Load Capacity: | 1000Kg |
---|---|---|---|
Max.Lift Height: | 3000mm | Battery: | 24V/210Ah |
Charger: | 24V/30A | Lift Motor: | 1.25KW |
Driving Motor: | AC1.5KW | Paper Roll Diameter: | ¢800-1200mm |
Overall Size: | 2500X1650X2000mm | Braking Type: | Electromagenetic Braking |
Net Weight: | 790Kg | Warranty: | 1 Year |
Highlight: | Transverse Clamp Gripper Roll Handling Trolley,0.5t Roll Handling Trolley,1000kg Handling Trolley |
Feature:
Both clamps with same size, designed to clamp erect paper rolls, films rolls.
Clamp with soft protection by rubber, well prevent obvious clamping mark from paper rolls, films rolls.
Oil cylinder adopts high precision honing tubes, imported oil seal, one-piece valve core, convenient disassembly and maintenance.

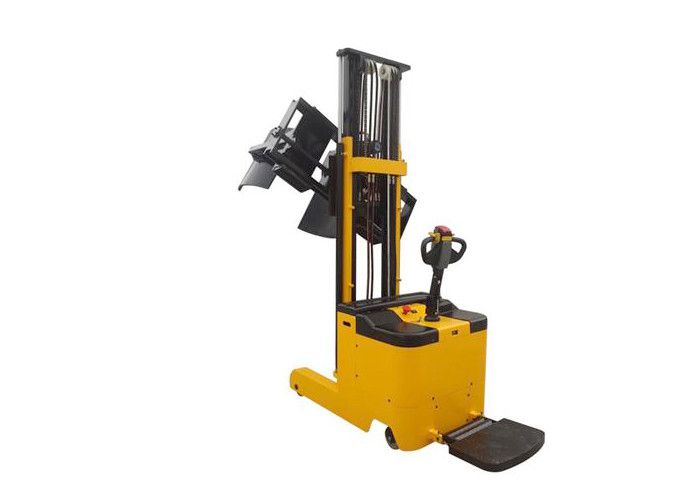

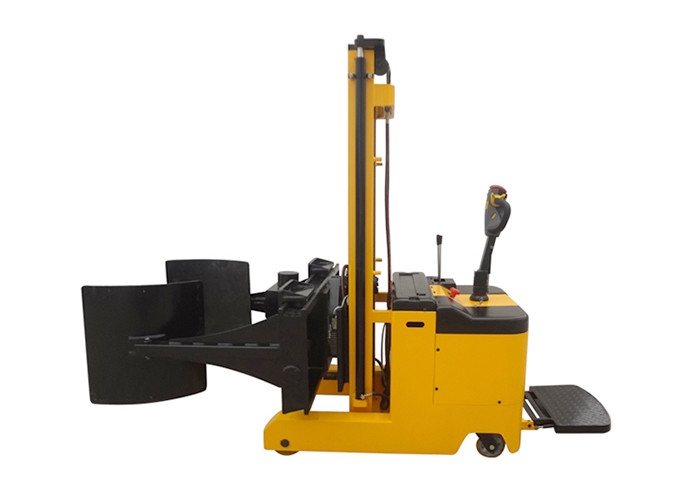

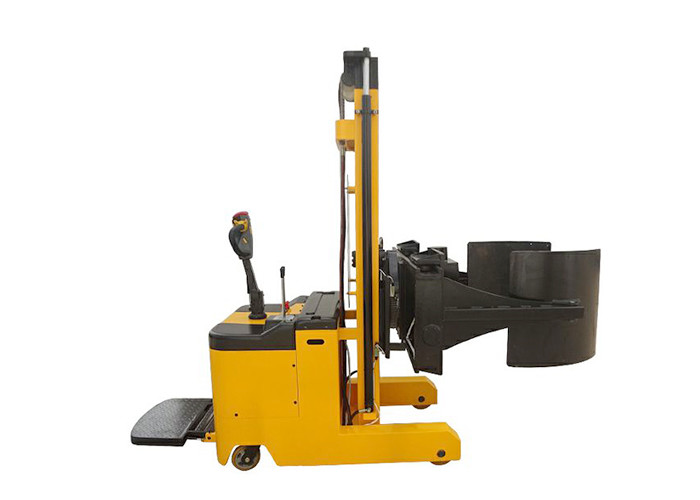

Electric powered 90 degree rotation, change the erect rolls/reels to horizontal ones on pallets or work stand.
With America Curtis electric controller, continuously variable speed drive, regenerative braking and emergency reverse function to protect the operator’s safety.
Suitable to handle with paper rolls, carpets, cloth, cable, wire, coil, tyre, drum, wood.etc, a good helper for round roll materials.
Specification:
Model | CDD0516-Z | CDD1016-Z | CDD0525-Z | CDD1025-Z | CDD1030-Z |
Load Capacity (kg) | 500 | 1000 | 500 | 1000 | 1000 |
Max.Lift height (mm) | 1600 | 1600 | 2500 | 2500 | 3000 |
Battery (V/Ah) | 24/165 | 24/165 | 24/210 | 24/210 | 24/210 |
Charger (V/A) | 24/20 | 24/20 | 24/30 | 24/30 | 24/30 |
Lift Motor (Kw) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Driving Motor(Kw) | AC1.5 | AC1.5 | AC1.5 | AC1.5 | AC1.5 |
Paper Roll Diameter | ¢800-1200mm | ¢600-1000mm | ¢400-800mm | ¢200-600mm | ¢100-400mm |
Weight (Kg) | 710 | 730 | 760 | 790 | 830 |
Overall size (mm)L*W*H | 2500*1650*2000 | 2300*1450*2000 | 2100*1250*1780 | 2000*1050*1780 | 2000*850*2050 |
Turning Aisle (mm) | 2600Turn | 2400Turn | 2200Turn | 2100Turn | 2100Turn |
Walking Aisle | 1700mm | 1500mm | 1300mm | 1100mm | 900mm |
Driving Wheel (mm) | 1*¢250*80 | ||||
Auxiliary Wheels (mm) | 2*¢150*50 | ||||
Front Wheels (mm) | 4*¢80*70 | ||||
Climbing Slope(%) | 6th, April | ||||
Travel Speed Km/h | Travel speed 4/6 | ||||
Lifting Speed mm/s | Lifting speed 45/50 | ||||
Falling Speed mm/s | Falling speed 45/40 | ||||
Braking type | Electromagenetic braking |
