| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | CTY |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

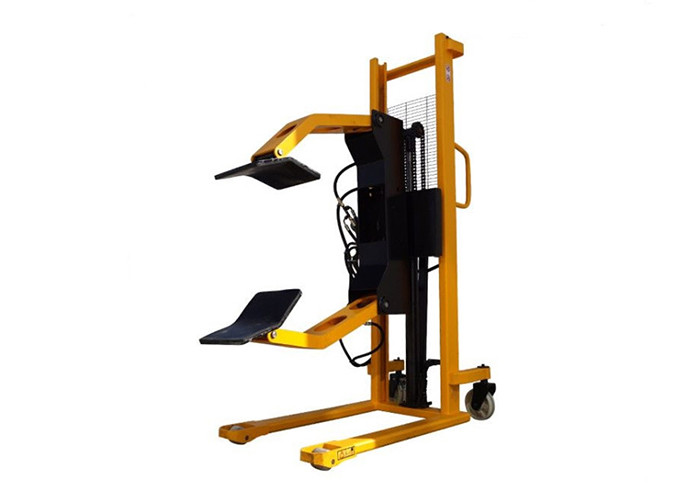

| Product Name: | CTY Vertical Clamp Gripper Handling Trolley With Dual Pump For Easier Lifting Load Capacity 400kg | Load Capacity: | 400Kg |
|---|---|---|---|
| Lift Max.Height: | 1600mm | Clamp Width: | 700-790mm |
| Min. Clamp Height: | 520mm | Clamplength: | 820mm |
| Paper Roll Diamete: | Ø300-100mm | Load Center: | 700mm |
| Over Size: | 1900X1450X2000mm | Net Weight: | 395Kg |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| Highlight: | Vertical Clamp Gripper Handling Trolley,Dual Pump Handling Trolley,EN1757-1:2001 Roll Handling Trolley |
||
Feature:
1.Controllable direction handle.
2.Has a dual pump for easier lifting.
3.Unique technology quick valve built in.
4.Top quality hydraulic pump ＆ cylinder.
5.Protection device for steering wheel ＆ safety guard for load roller.
6.Conforms to EN1757-1:2001.
Specification:
| Model | CTY0210-500 | FTD0416-500 | CTY0216-500 | FTD0416-1000 | |
| Capacity | kg | 200 | 400 | 200 | 400 |
| Liftmax.height | mm | 1000 | 1600 | 1600 | 1600 |
| Clamp width | mm | 700-790 | 635-950 | 635-950 | 1135-1450 |
| Min.clamp height | mm | 300 | 490 | 490 | 520 |
| Clamplength | mm | 820 | 820 | 820 | 1220 |
| Paper roll diamete | mm | Ø300-390mm | Ø200-500mm | Ø200-500mm | Ø300-1000mm |
| Load center | mm | 200 | 350 | 350 | 700 |
| Weight | kg | 300 | 366 | 348 | 395 |
| Over size | mm | 1500*1060*1400 | 1500*950*2000 | 1500*950*2000 | 1900*1450*2000 |
| Channel request | mm | 1600 | 1600 | 1600 | 2000 |
| Forward and Back | mm | 1100 | 1000 | 1000 | 1500 |
| Real wheels | mm | 2*Ø180*50 | |||
| Front wheels | mm | 2*Ø80*70 | |||
