Place of Origin: | China |
---|---|
Brand Name: | Sinolift |
Certification: | CE |
Model Number: | PFG |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Sandard Export Package |
Delivery Time: | 15 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 5000 sets/mouth |

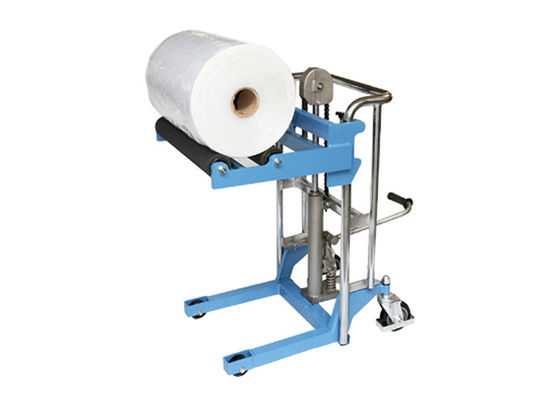

Product Name: | PGF Overload Protection Roller Conveyor Trolley Loading Capacity 400Kg | Capacity: | 400Kg |
---|---|---|---|
Max. Roller Height: | 1500mm | Min. Roller Height: | 180mm |
Outrigger Height: | 80mm | Max. Diameter Of Reel: | Ø100~Ø600mm |
Roller Size: | Ø76-550mm | Roller Length: | 500-800mm |
Roller Center: | 120mm | Overall Size: | 680X580X1030mm |
Net Weight: | 46Kg | Warranty: | 1 Year |
High Light: | Overload Protection Roller Conveyor Trolley,EN 1757-1 Roller Conveyor Trolley,200kg roll conveyor |
Feature:
Equipped with a overload protection valve.
Hard chromium plated frame.
▲Widely used with low platform and various accessories as option.
▲Design of double chain and big wheels can be stable and reliable.
▲Conforms to EN 1757-1.
Specification:
Model | Fixed front Wheel | PFG2085 | PFG2120 | PFG4085 | PFG4120 | PFG4150 |
Universal Front Wheel | PFG2085W | PFG2120W | PFG4085W | PFG4120W | PFG4150W | |
Capacity | (kg) | 200 | 200 | 400 | 400 | 400 |
Max. Roller Height | (mm) | 870 | 1200 | 870 | 1200 | 1500 |
Min. Roller Height | (mm) | 180/200 | 180/200 | 180/200 | 180/200 | 180/200 |
Outrigger Height | (mm) | 80 | 80 | 80 | 80 | 80 |
110(W) | 110(W) | 120(W) | 120(W) | 120(W) | ||
Max. Diameter of reel | (mm) | Ø100~Ø300 | Ø100~Ø300 | Ø200~Ø600 | Ø200~Ø600 | Ø200~Ø600 |
Roller Size | (mm) | Ø76x500 | Ø76x500 | Ø76x550 | Ø76x550 | Ø76x550 |
Roller Length | (mm) | 500~800 | 500~800 | 550~800 | 550~800 | 550~800 |
Roller Center | (mm) | 120 | 120 | 180(240) | 180(240) | 180(240) |
Roller Material | Rubber (PU, Galvanized Steel, Stainless Steel) | |||||
Front Load Wheel | (mm) | Ø75 | Ø75 | Ø75 | Ø75 | Ø75 |
Ø75(W) | Ø75(W) | Ø75(W) | Ø75(W) | Ø75(W) | ||
Rear Steering Wheel | (mm) | Ø125 | Ø125 | Ø150 | Ø150 | Ø150 |
Pump Strokes to Max. Height | 14 | 21 | 30 | 45 | 58 | |
Noise-free Castor | O | O | O | O | O | |
Overall Size | LxWxH (mm) | 680x580x1030 | 680x580x1380 | 780x630x1070 | 780x630x1420 | 780x630x1720 |
Net Weight(PS/EP) | (kg) | 46 | 51 | 64 | 70 | 75 |
