| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | CTD |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

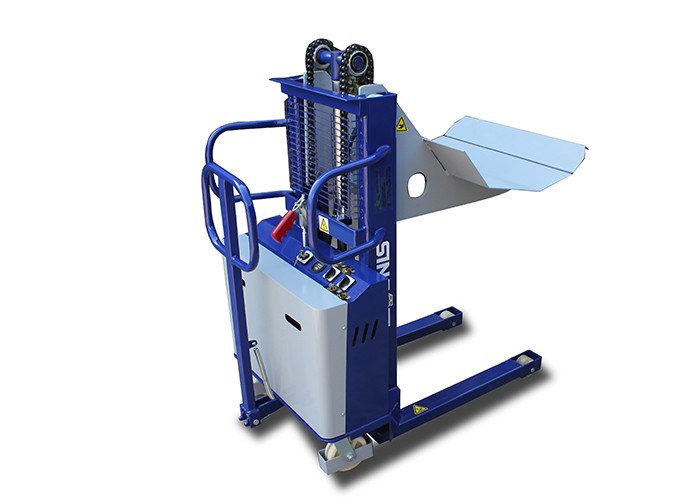

| Product Name: | CTD1000-M700 Semi-electric Roll Handling Trolley Paper Roll Lifter Load Capacity 1000Kg | Capacity: | 1000Kg |
|---|---|---|---|
| Max Lift Of The Plate: | 841mm | Barycentre: | 500mm |
| Min. Steering Range: | 1160mm | Max. Diam. Bobine: | 1000mm |
| Max. Width Bobine: | 1500mm | Frame Dimension: | 1230X720X1310mm |
| Wheelbase: | 925mm | Net Weight: | 285Kg |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| High Light: | Semi Electric Roll Handling Trolley,1t Roll Handling Trolley,FDA Approved roll trolley |
||
Feature:
V-Pan and/or Roll Post per Customer Specifications.
Ergonomic Casters : (2) Swivel, (2) Rigid.
Step-down Foot Floor Lock for added Safety.
Safety blue polyester powder coating or FDA Approved epoxy powder coating for Durability.
Optional Roll Transporter Features :
▲FDA Approved epoxy powder coating
▲12-Volt D.C. power lift, AC Powered Lift, Pneumatic Lift or Air over Hydraulic Lift
▲Increased lift height or customized V-Pan size.
▲8" wheels for rough surfaces
▲Scales with or without intrinsically safe indicators.
Specification:
| Models | CTD1000-M700 | ||
| Load | kg. | 1000 | |
| Max Lift of the Plate. | E | mm. | 841 |
| Barycentre | G | mm. | 500 |
| Min. Steering Range | R | mm. | 1160 |
| Max. Diam. Bobine | D | mm. | 1000 |
| Max. Width Bobine | L | mm. | 1500 |
| Frame Height | C | mm. | 1230 |
| Frame Width | B | mm. | 720 |
| Frame Length | A | mm. | 1310 |
| Wheelbase | P | mm. | 925 |
| Front Wheels | / x largh mm. | 78x70 | |
| Rear Wheels | / x largh mm. | 180x50 | |
| Weight | Kg. | kg. | 285 |
