| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | EJH |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

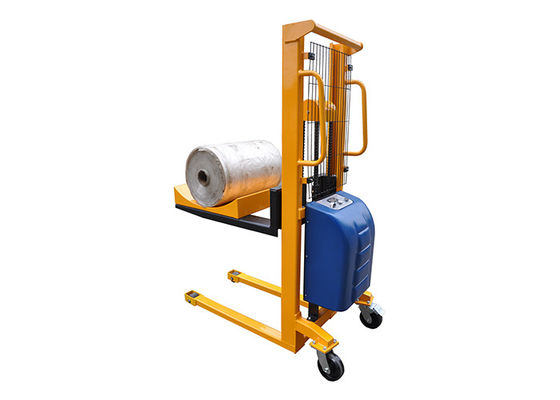

| Product Name: | EJH Arc Panel Rol Lifter High Rigidity Roll Handling Trolley Loading Capacity 600kg | Load Capacity: | 600Kg |
|---|---|---|---|
| Max.Fork Height: | 1500mm | Min.Fork Height: | 90mm |
| Fork Length: | 900mm | Adjustable Fork Width: | 235-600mm |
| Load Roller: | Ф75mm | Power Unit: | 0.8KW |
| Battery: | 12V/60Ah | Overall Dimension: | 780X630X1100mm |
| Net Weight: | 145Kg | Warranty: | 1 Year |
| High Light: | High Rigidity Roll Handling Trolley,90mm roll trolley,600kg roller trolley |
||
Feature:
1. Strong rigidity, safety and reliable.
2. High quality power unit, free maintenance battery and built-in charger with strong power and durablility.
3. Can be equipped with different optional platform and attachment and make it widely apply to printing, packing and medical industries.
Specification:
| Model (Adjustable Fork) | EJH6085 | EJH6120 | EJH6150 | |
| Capacity | (kg) | 600 | 600 | 600 |
| Max.Fork Height | (mm) | 850 | 1200 | 1500 |
| Min.Fork Height | (mm) | 90 | 90 | 90 |
| Fork length | (mm) | 900 | 900 | 900 |
| Adjustable Fork Width | (mm) | 235-600 | 235-600 | 235-600 |
| Load Roller | (mm) | Φ80 | Ф75 | Ф75 |
| Steering Wheel | (mm) | Ф150 | Ф125 | Ф125 |
| Power Unit | (KW) | 0.8 | 0.8 | 0.8 |
| Battery | (V/Ah) | 12/80 | 12/60 | 12/60 |
| Overall Height | (mm) | 780 | 1710 | 2010 |
| Overall Width | (mm) | 630 | 590 | 590 |
| Overall Length | (mm) | 1100 | 1450 | 1750 |
| Net Weight | (kg) | 145 | 148 | 156 |
