| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | NP |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/month |

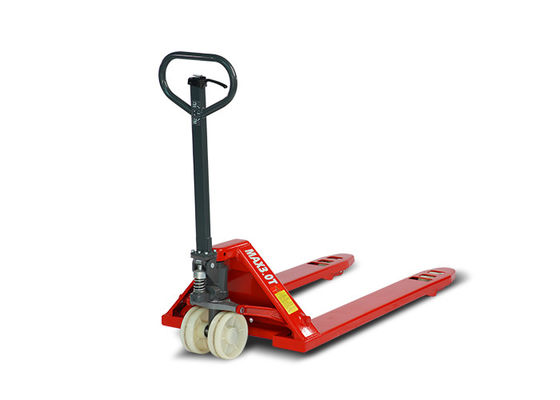

| Product Name: | NP Series Industrial Material Handling Equipment With Overload Release Valve Pallet Truck 1-3 Ton | Loading Capacity: | 1 Ton-3 Ton |
|---|---|---|---|
| Fork Width: | 520mm | Fork Length: | 1220mm |
| Min. Height: | 80mm | Max. Height: | 200mm |
| Steer Wheel: | φ180X62mm | Load Wheel: | φ78X100mm |
| Net Weight: | 66Kg | Warranty: | 1 Year |
| After Service: | On-line Service,Spare Parts | ||
| High Light: | 1000kg Industrial Material Handling Equipment,2200lbs Industrial Material Handling Equipment,7.9 inch pallet jack lift |
||
Feature:
1. Low lofting bounce Design.
2. Special design push rod.
3. Counter balance valve.
4. Special design Smooth-Rolling Polyurethane & Load Wheel.
5. Special design Smooth-Rolling Polyurethane & Turning Steering Wheel.
6. Special design Chassis Reinforce Angle.
7. One Piece Complete Forks.
8. High Tensile Fork 4.5mm Thickness.
9. Overload Release Valve.
Specification:
| Model | Capacity | Fork Width | Fork Length | Min. Height | Max. Height | Steer wheel | Load Wheel | Weight |
| kg/lbs | mm/inch | mm/inch | mm/inch | mm/inch | (mm) | (mm) | kg/lbs | |
| W1 | L1 | H2 | H1 | A | B | |||
| NP10-48 | 1000/2200 | 460/18" | 810/32" | 80/3.15" | 200/7.9" | φ180*62 | φ78*100 (single) | 66/145 |
| NP10-49 | 460/18" | 980/38.5" | 70/154 | |||||
| NP10-58 | 520/20.5" | 810/32" | 66/145 | |||||
| NP10-59 | 520/20.5" | 980/38.5" | 71/156 | |||||
| NP10-510 | 520/20.5" | 1070/42" | 71/156 | |||||
| NP10-511 | 520/20.5" | 1150/43.3" | 73/160 | |||||
| NP10-712 | 685/27" | 1220/48" | 79/173 | |||||
| NP15-48 | 1500/3300 | 460/18" | 810/32" | 80/3.15" | 200/7.9" | φ180*62 | φ78*100 (single) | 66/145 |
| NP15-49 | 460/18" | 980/38.5" | 70/154 | |||||
| NP15-58 | 520/20.5" | 810/32" | 66/145 | |||||
| NP15-59 | 520/20.5" | 980/38.5" | 70/154 | |||||
| NP15-510 | 520/20.5" | 1070/42" | 71/156 | |||||
| NP15-511 | 520/20.5" | 1150/43.3" | 73/160 | |||||
| NP15-610 | 600/23.5" | 1070/42" | 77/169 | |||||
| NP15-76 | 685/48" | 650/25.6" | 68/149 | |||||
| NP15-710 | 685/27" | 1070/42" | 76/167 | |||||
| NP15-712 | 685/27" | 1220/48" | 79/173 | |||||
| NP25-58 | 2500/5500 | 520/20.5" | 810/32" | 80/3.15" | 200/7.9" | φ180*62 | φ78*100 (single) or φ78*70 (tandem) | 67/147 |
| NP25-59 | 685/27" | 980/38.5" | 71/156 | |||||
| NP25-510 | 685/27" | 1070/42" | 72/158 | |||||
| NP25-511 | 520/20.5" | 1150/43.3" | 75/165 | |||||
| NP25-712 | 685/27" | 1220/48" | 80/176 | |||||
| NP30-510 | 3000/6600 | 520/20.5" | 1070/42" | 80/3.15" | 200/7.9" | φ180*62 | φ78*100 (single) or φ78*70 (tandem) | 84/184 |
| NP30-511 | 520/20.5" | 1150/43.3" | 90/198 | |||||
| NP30-712 | 685/27" | 1220/48" | 100/220 |
