| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | NP |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |
| Prodct Name: | NP Series Power Coated 80mm Hydraulic Hand Pallet Jack Capacity 1000-3000kg | Rated Capacity: | 1000-3000kg |
|---|---|---|---|
| Fork Length: | 1150mm | Forkwidth: | 460/520/685mm |
| Min. Height: | 80mm | Max. Height: | 200mm |
| Steer Wheel: | 18X62mm | Load Wheel: | 78X100mm |
| Material: | Special Steel | Weight: | 66-100kg |
| Warranty: | 1 Year | After Service: | On-line Service,free Spart Parts |
| High Light: | 80mm Hand Pallet Jack,Power Coated Hydraulic Hand Pallet Jack,200mm hydraulic hand pallet truck |
||

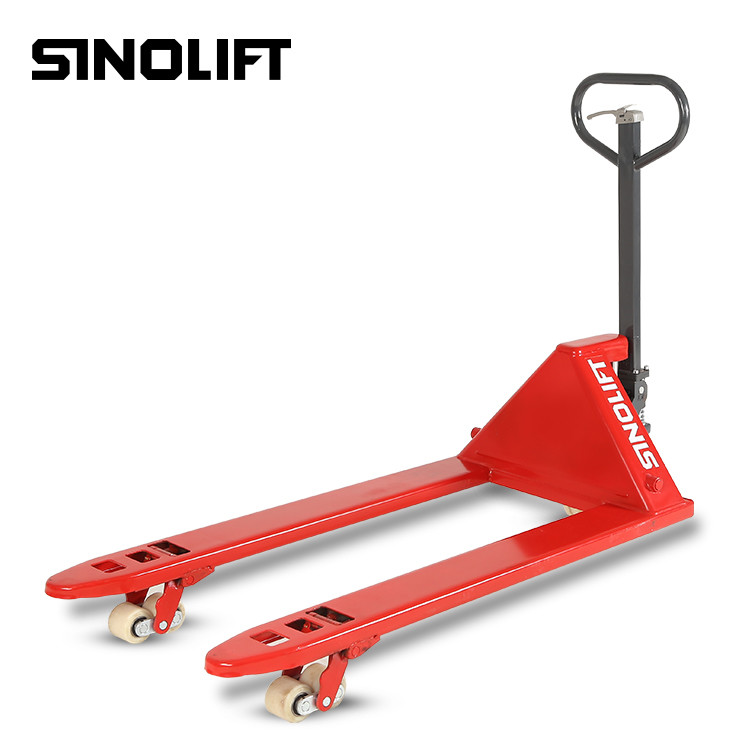

SINOLIFT NP Series Hydraulic Hand Pallet Jack
Feature:
Easily Rolls on non marking abrasion resistant polly (Nylon) wheels.
Lift up - Uniform Release Point
Robust Body heavy duty frame Tow Bar.
Pump Piston and Tow Bar return spring.
Heavy Duty Hydraulic Pump – Die Casted One Piece Body.
High Quality Finish with Powered Coated Colour.
High Quality Steering Wheel and Fork Rollers Wheel PU 100% Virgin (Polyurethanes)
Pu wheels 100% / Nylon Wheels Advanced / Cast Iron Wheels- Optional Wheels are also Available.
Specification:
| Model | Capacity | Forkwidth | Forklength | Min. Height | Max. Height | Steer wheel | Load Wheel | Weight |
| (kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
| NP10-48 | 1000 | 460 | 810 | 80 | 200 | 180*62 | 78*100 (single) | 66 |
| NP10-49 | 460 | 980 | 70 | |||||
| NP10-58 | 520 | 810 | 66 | |||||
| NP10-59 | 520 | 980 | 70 | |||||
| NP10-510 | 520 | 1070 | 71 | |||||
| NP10-511 | 520 | 1150 | 73 | |||||
| NP10-712 | 685 | 1220 | 79 | |||||
| NP15-48 | 1500 | 460 | 810 | 80 | 200 | 180*62 | 78*100 (single) | 66 |
| NP15-49 | 460 | 980 | 70 | |||||
| NP15-58 | 520 | 810 | 66 | |||||
| NP15-59 | 520 | 980 | 70 | |||||
| NP15-510 | 520 | 1070 | 71 | |||||
| NP15-511 | 520 | 1150 | 73 | |||||
| NP15-610 | 600 | 1070 | 77 | |||||
| NP15-76 | 685 | 650 | 68 | |||||
| NP15-710 | 685 | 1070 | 76 | |||||
| NP15-712 | 685 | 1220 | 79 | |||||
| NP25-58 | 2500 | 520 | 810 | 80 | 200 | 180*62 | 78*100 (single) or 78*70 (tandem) | 67 |
| NP25-59 | 685 | 980 | 71 | |||||
| NP25-510 | 685 | 1070 | 72 | |||||
| NP25-511 | 520 | 1150 | 75 | |||||
| NP25-712 | 685 | 1220 | 80 | |||||
| NP30-510 | 3000 | 520 | 1070 | 80 | 200 | 180*62 | 78*100 (single) or 78*70 (tandem) | 84 |
| NP30-511 | 520 | 1150 | 90 | |||||
| NP30-712 | 685 | 1220 | 100 |
