| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | TFD |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

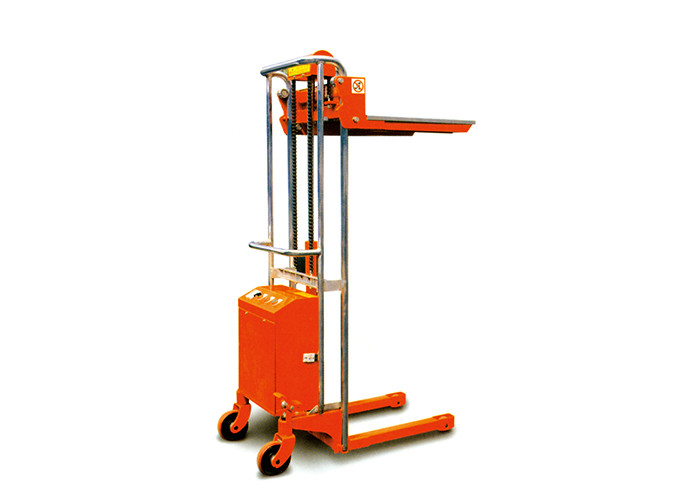

| Product Name: | Overload Protection Semi Electric Hydraulic Mini Pallet Stacker Capacity 400Kg | Capacity: | 400Kg |
|---|---|---|---|
| Overall Dimension: | 1020X560X1080mm | Min. Fork Height: | 80mm |
| Max. Fork Height: | 1200mm | Fork Length: | 650mm |
| Adjustable Fork Width: | 235-500mm | Single Fork Width: | 110mm |
| Chassis Height: | 32.5mm | Power Pack Motor: | 0.7KW |
| Battery: | 12V/60Ah | Net Weight: | 90Kg |
| Highlight: | 80mm Mini Pallet Stacker,400kg Mini Pallet Stacker,Overload Protection hydraulic platform lift |
||
Feature:
1.Simple and easy operation.
2.Lifting movement via collapsible foot pedal.
3.Sensitive lowering through sinking valve.
4.Hand push drive.
5.Overload protection via pressure valve.
Specification:
| Model | TFD20-85 | TFD20-120 | TFD40-85 | TFD40-120 | TFD40-150 | |
| Capacity | (kg) | 200 | 200 | 400 | 400 | 400 |
| Min. Fork Height | (mm) | 80 | 80 | 80 | 80 | 80 |
| Max. Fork Height | (mm) | 850 | 1200 | 850 | 1200 | 1500 |
| Fork Length | (mm) | 600 | 600 | 650 | 650 | 650 |
| Adjustable Fork Width | (mm) | 215-500 | 215-500 | 235-500 | 235-500 | 235-500 |
| Single Fork Width | (mm) | 100 | 100 | 110 | 110 | 110 |
| Dia of Front Wheel | (mm) | ø75 | ||||
| Dia of Steering Wheel | (mm) | ø125 | ||||
| Chassis Height | (mm) | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 |
| Power Pack Motor | (KW) | 0.7 | ||||
| Battery | (V/Ah) | 12/60 | 12/60 | 12/70 | 12/70 | 12/70 |
| Overall Length | (mm) | 1020 | 1020 | 1100 | 1100 | 1100 |
| Overall Width | (mm) | 560 | 560 | 590 | 590 | 590 |
| Overall Height | (mm) | 1080 | 1435 | 1060 | 1410 | 1710 |
| Option Platform | (mm) | LP10(610 x 530) | LP20(660 x 580) | |||
| Net weight | (kg) | 90 | 97 | 105 | 116 | 122 |
| Minimum Qty. | (pcs) | 2 | 2 | 2 | 2 | 2 |
