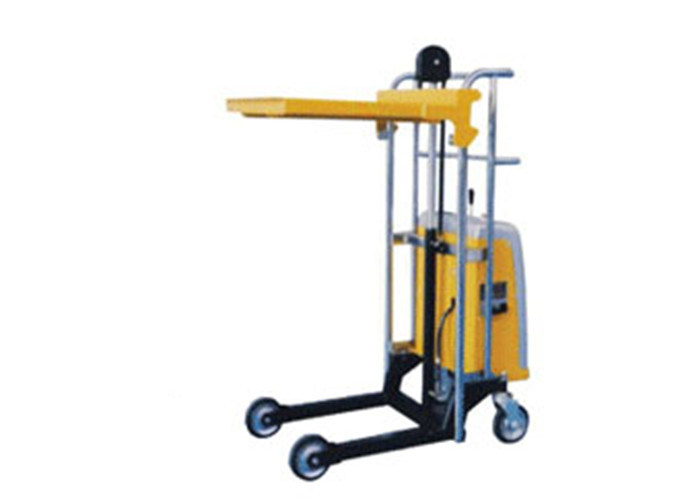

EFP Semi-Electric Hydraulic Platform Stacker with two brakes Capacity 400Kg

Basic Information
Place of Origin: China
Brand Name: Sinolift
Certification: CE
Model Number: EFP
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sandard Export Package
Delivery Time: 15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 sets/mouth
Product Name: EFP Semi-Electric Hydraulic Platform Stacker With Two Brakes Capacity 400Kg Capacity: 400kg
Max. Height: 1630mm Lifting Height: 1300mm
Min. Platform Height: 200mm Max.Width: 590mm
Platform Length: 650mm Platform Width: 550mm
Battery: 12V/60Ah DC Motor: 12V/700W DC
Warranty: 1 Year Certification: CE,ISO9001
High Light:

EN1175-1 Hydraulic Platform Lift


CE Hydraulic Platform Lift


0.4t semi electric pallet stacker



1.Conforms to CE Normals.
2.Two brakes increase safely.
3.Combination of stacker and lifting table.
4.Fully sealed & maintenance-free bettery.
5.Lifting operations becames easier and faster.
6.Conforms to EN1757-1 and EN1175-1.




Model   EFP0412 EFP0415
Capacity Q kg 400 400
Max. height h1 mm 1330 1630
Lifting height h3 mm 1000 1300
Min.platform height h13 mm 200 200
Max.platform height h3+h13 mm 1200 1500
Max.Width mm 590 590
Platform length mm 650 650
Platform width mm 550 550
Steering roller mm 150x40 150x40
Load roller mm 150x45 150x45
Lifting speed without load mm/sec 185 185
Lifting speed with load mm/sec 80 80
Lowering speed without load mm/sec 0~75 0~75
Lifting speed with load mm/sec 0~115 0~115
Battery   DC12V.60AH DC12V.60AH
Motor   DC12V,700W DC12V,700W
