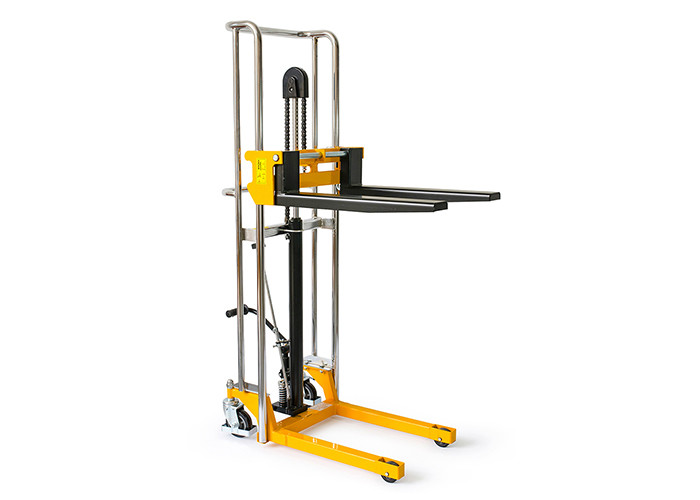

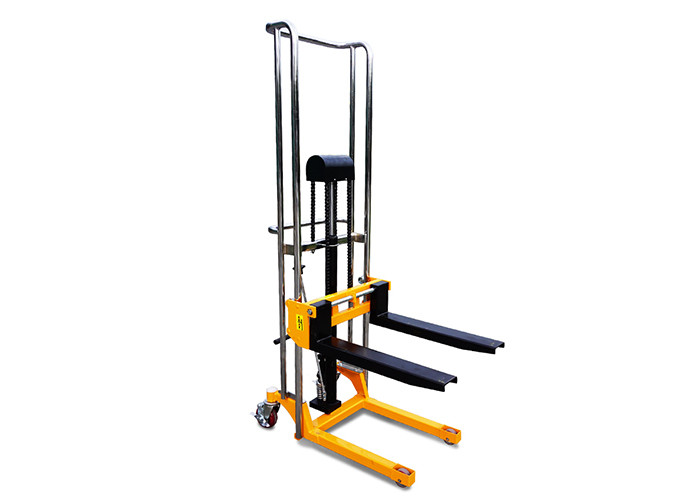

PJ Mini Stacker with adjustable forks and polyurethane rollers Capacity 400Kg

Basic Information
Place of Origin: China
Brand Name: Sinolift
Certification: CE
Model Number: PJ
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sandard Export Package
Delivery Time: 15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 sets/mouth
Product Name: PJ Mini Stacker With Adjustable Forks And Polyurethane Rollers Capacity 400Kg Capacity: 400Kg
Max.Fork Height: 1800mm Min.Fork Height: 85mm
Overall Dimension: 1020X560X1080mm Fork Size: 600X1000mm
Adjustable Fork Width: 235-500mm Load Roller: Ф75
Steering Wheel: Ф125 Net Weight: 85Kg
Warranty: 1 Year After Service: On-line Service,Spare Parts
High Light:

Flexible Package Industry Mini Stacker


EN 1757-1 Mini Stacker


85mm Mini Pallet Stacker



1.Robust construction.
2.Hard chromium plated frame.
3.Effortless Movement.
4.Polyurethane rollers with bearing
5.No-marking castor as standard.
6Widely used with low leg and various accessories as option.
7.The V-Shaped plate is suitable for printing work, flexible package industry.
    Conforms to EN 1757-1.




Model (Adjustable Fork)   PJ2085 PJ2120 PJ4085 PJ4120 PJ4150 PJ4180
Capacity (kg) 200 400
Max.Fork Height (mm) 850 1200 850 1200 1500 1800
Min.Fork Height (mm) 85 85
Fork Size LxW (mm) 600x100 650x100
Adjustable Fork Width PJ (mm) 215-500 235-500
Load Roller (mm) Ф75 Ф75
Steering Wheel (mm) Ф125 Ф125
Pump strokes to Max.Height   19 26 35 50 63 76
Battery (Ah/V) Dec-60 Dec-70
Overall Height (mm) 1080 1435 1060 1410 1710 1710
Overall Width (mm) 560 590
Overall Length PF/PJ(mm) 1020 1100
Net Weight PJ (kg) 58 65 75 81 85 85
Option Platform   LP10 LP20
