| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | FSJY |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

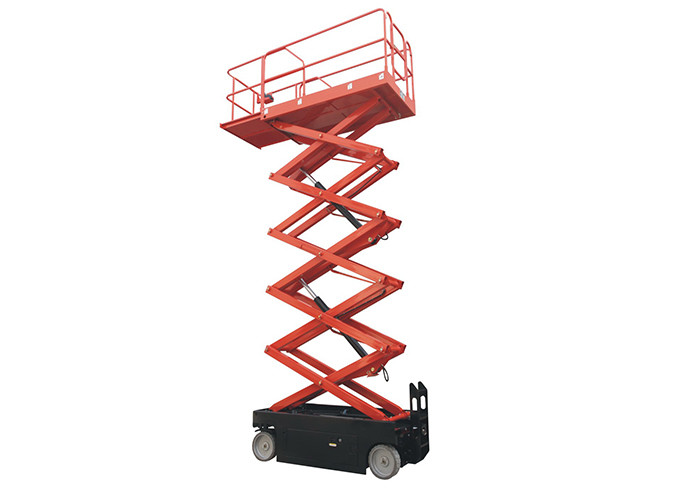

| Product Name: | FSJY Self-propelled Hydraulic Driven Aerial Work Platform Capacity 300Kg | Rated Capacity: | 300kg |
|---|---|---|---|
| Max. Working Height: | 138000mm | Max. Platform Height: | 118000mm |
| Overall Length: | 2400mm | Overall Width: | 1150mm |
| Platform Size: | 2270X1150mm | Lifting Motor: | 24V/1.5KW |
| Power Souce: | 24V/3KW | Battery: | 4X60V/210Ah |
| Service Weight: | 1900Kg | Warranty: | 1 Year |
| Highlight: | Hydraulic Driven Aerial Work Platform,self propelled aerial work platform,self propelled elevating work platforms |
||
Feature:
The lifting platform has the function of automatic stepping and turning, with non-manpower draught and non-external power source. It is flexible and convenient for moving for aloft work, which is the ideal aloft working facility for safety production in modern enterprise. All models of shears-fork type aloft working platform can be changed to the automatic hydraulic lifting platform.
1. High-quality construction steel
2. Braking/manual optional
3. The shears-fork mechanical structure provides higher stability when the platform elevating. On the other hand, the wide working platform and higher loading capacity are suitable for various aloft work requirement, and multi-persons operation at the same time
4. It is mainly applied for factory, warehouse, bus station, dock, airport, in aloft working, commodity convey, assembly line corollary equipment, and etc.
Specification:
| Model | Unit | FSJY0608 | FSJY0810 | FSJY1012 | FSJY1214 |
| Max. working height | mm | 8000 | 10000 | 12000 | 13800 |
| Max. Platform height | mm | 6000 | 8000 | 10000 | 11800 |
| Rated capacity | kg | 300 | 300 | 300 | 230 |
| Extended Platform capacity | kg | 113 | 113 | 113 | 100 |
| Folding Max. height (guardrail unfolding) | mm | 2150 | 2275 | 2400 | 2525 |
| Folding Max. height (guardrail removed) | mm | 1190 | 1315 | 1440 | 1565 |
| Overall length | mm | 2400 | 2400 | 2400 | 2400 |
| Overall width | mm | 1150 | 1150 | 1150 | 1150 |
| Platform size | mm | 2270x1150 | 2270x1150 | 2270x1150 | 2270x1150 |
| Platform extend size | mm | 900 | 900 | 900 | 900 |
| Min. ground clearance (lowered) | mm | 110 | 110 | 110 | 110 |
| Min. Ground clearance (lifted) | mm | 20 | 20 | 20 | 20 |
| Wheelbase | mm | 1850 | 1850 | 1850 | 1850 |
| Min. Turning radius (inner wheel) | mm | 0 | 0 | 0 | 0 |
| Min. Turning radius (outer wheel) | mm | 2100 | 2100 | 2100 | 2100 |
| Power souce (drive motor) | V/kw | 24/3 | 24/3 | 24/3 | 24/3 |
| Lifting Motor | V.kw | 24/1.5 | 24/1.5 | 24/1.5 | 24/1.5 |
| Runing speed (Raised) | km/h | 4 | 4 | 4 | 3.5 |
| Runing speed (lowered) | km/h | 0.8 | 0.8 | 0.8 | 0.8 |
| Rising/falling speed | sec | 40/50 | 40/50 | 70/80 | 70/80 |
| Battery | V/Ah | 4x6/210 | 4x6/210 | 4x6/210 | 4x6/210 |
| Charger | V/A | 24/25 | 24/25 | 24/25 | 24/25 |
| Max. Climbing ability | % | 20 | 20 | 20 | 20 |
| Max. working allowable angle | ° | 2-3 | 2-3 | 2-3 | 2-3 |
| Control type | Electro-hydraulic proportion control | ||||
| Drive | Double front-wheel | ||||
| Hydraulic drive | Double rear wheel | ||||
| Wheelsize (non-marking solid tire) | Ø381x127 | Ø381x127 | Ø381x127 | Ø381x127 | |
| Service weight | kg | 1900 | 2080 | 2490 | 2760 |
