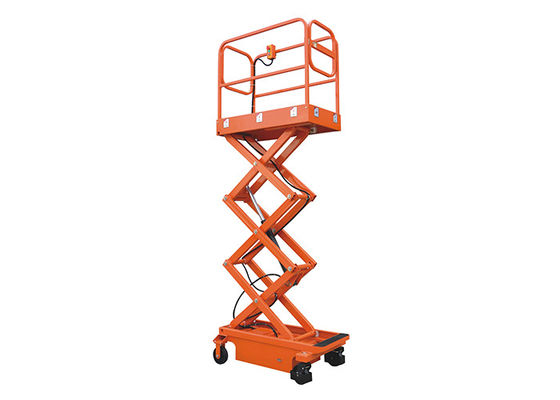

SJY(mini) Mobile Scissors Lift Loading Capacity 300Kg

Basic Information
Place of Origin: China
Brand Name: Sinolift
Certification: CE
Model Number: SJY(mini)
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sandard Export Package
Delivery Time: 15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, Western Union, MoneyGram
Supply Ability: 5000 sets/mouth
Product Name: SJY(mini) Mobile Scissors Lift Loading Capacity 300Kg Loading Capacity: 300kg
Max.Platform Height: 1700mm Min.Platform Height: 520mm
Platform Size (LxWxH): 1000X530mm Elevating Time: 10S
Lift Motor: 12V/0.8KW Charger: 12V/15A
Overall Dimension: 1140X700X1620mm Net Weight: 230Kg
Warranty: 1 Year After Service: On-line Service,Spare Parts
High Light:

300kg Mobile Scissor Lift


1700mm Mobile Scissor Lift


Free Standing scissor lift platform



1. Free-standing operation, with rechargeable 12V battery power.
2. Minimum 200 operating cycles at rated loading.
3. Quick and smooth ascent or descent.
4. Ergonomic platform with non-slip floor and secure gating.
5. Dual control points including emergency stops. Audible descend and tilt alerts.
6. Spiral cable connection to the platform control unit. Emergency down valve
7. Non-marking wheels, all 4 with brakes including 2 for steering.
8. Prominent decals promoting responsible use. Forklift pockets and tool box.




Specifications   SJY0.3-1.7(mini)
Max.Platform Height mm 1700
Min.Platform Height mm 520
Platform Size (LxWxH) mm 1000x530
Platform Extend Length mm /
Lift Rated Capacity kg 300
Platform Extend Capacity kg
Support leg Spread Size mm //
Elevating Time s 10
Lowering Time s 7
Lift Motor V/kw 12/0.8
Charger V/A 12/15A
Votagle V //
Overall Length mm 1140
Overall Width mm 700
Overall Height mm 1620
Service Weight kg 230
