| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | SJY（I） |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union,MoneyGram |
| Supply Ability: | 5000 sets/mouth |

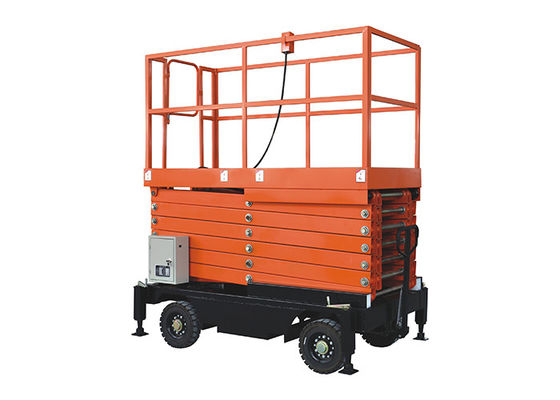

| Product Name: | Mobile Traction Scissor Lift Platform SJY(I) Mobile Scissors Lift Capacity 500kg | Rated Capacity: | 500kg |
|---|---|---|---|
| Max. Platform Height: | 11000mm | Min. Platform Height: | 1350mm |
| Platform Size: | 1780×840×1100mm | The Developed Dimension Of Legs: | 2300X1700mm |
| Elevating Time: | 59S | Electromotor Power: | 2.2KW |
| Voltage: | 380V | Overall Dimension: | 1820X1060X950mm |
| Net Weight: | 950Kg | Warranty: | 1 Year |
| High Light: | Mobile Traction Scissor Lift Platform,500kg Scissor Lift Platform,380v mobile scissor lift |
||
Feature:
1. Mobile traction scissor lifting platforms take advantage of external force to make lifting equipment, with three-phase power moving fast and convenient, good for long-distance operations.
2. As one convenient lifting equipment, mobile traction scissor lifts have electric up-down switch and auto up-down switch, the worker on the ground or on the table can control the up and down of the table.
3. Lift table is equipped with hydraulic pump used for no power circumstances, the cylinder of this table has the unloading control value, when the hydraulic system is out of work.
Specification:
| Model | SJY0.5-6 | SJY0.5-7.5 | SJY0.5-9 | SJY0.5-11 | |
| Max. Platform Height | mm | 6000 | 7500 | 9000 | 11000 |
| Min. Platform Height | mm | 1350 | 1450 | 1650 | 1800 |
| Platform Size | mm | 1780×840×1100 | 2180×1000×1100 | 2200×1100×1100 | |
| Lift Rated Capacity | kg | 500 | |||
| Safety Working Load | kg | 250 | |||
| The Developed Dimension Of Legs | mm | 2300×1700 | 2700×2200 | 3100×2200 | |
| Elevating Time | s | 59 | 77 | ||
| Electromotor Power | kw | 2.2 | |||
| Voltage | v | 380 | |||
| Overall Length | mm | 1820 | 2270 | ||
| Overall Width | mm | 1060 | 1250 | 1450 | |
| Overall Height | mm | 1350 | 1450 | 1650 | 1800 |
| Overall Net Weight | kg | 950 | 1350 | 1600 | 1800 |
