| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | FSJY |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 5000 sets/mouth |

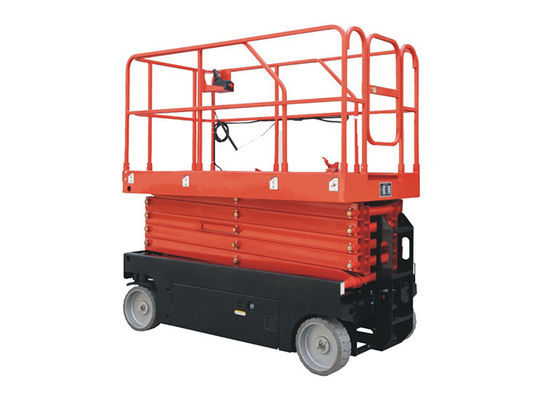

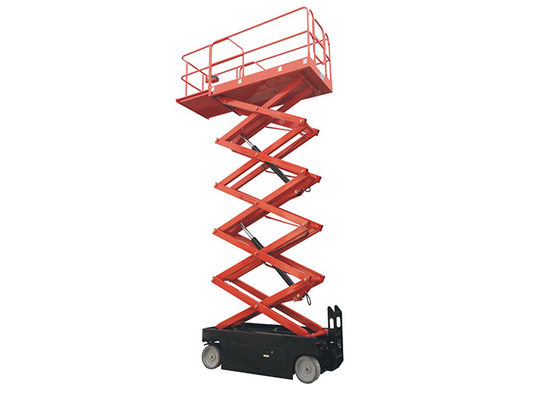

| Product Name: | FSJY Self-propelled Automatic Aerial Work Platform Capacity 300kg | Lift Rated Capacity: | 300Kg |
|---|---|---|---|
| Max. Platform Height: | 6000mm | Min. Platform Height: | 1010mm |
| Max. Machine Height: | 7100mm | Platform Size: | 1870X730mm |
| Min. Turing Radius: | 1900mm | Min. Turing Radius Mm 1900 Max. Gradbility: | 10-15% |
| Driving Motor: | 2X24/0.5 V/KW | Lifting Motor: | 24V/2.2KW |
| Net Weight: | 1300Kg | Warranty: | 1 Year |
| High Light: | Self Propelled Aerial Work Platform,250kg Aerial Work Platform,300kg elevated work platforms |
||
Feature:
The lifting platform has the function of automatic stepping and turning, with non-manpower draught and non-external power source. It is flexible and convenient for moving for aloft work, which is the ideal aloft working facility for safety production in modern enterprise. All models of shears-fork type aloft working platform can be changed to the automatic hydraulic lifting platform.
1. High-quality construction steel
2. Braking/manual optional
3. The shears-fork mechanical structure provides higher stability when the platform elevating. On the other hand, the wide working platform and higher loading capacity are suitable for various aloft work requirement, and multi-persons operation at the same time
4. It is mainly applied for factory, warehouse, bus station, dock, airport, in aloft working, commodity convey, assembly line corollary equipment, and etc.
Specification:
| MODEL | FSJY6 | FSJY7.4 | |
| Max. Platform Height (H) | mm | 6000 | 7400 |
| Max. Machine Height (H1) | mm | 7100 | 8500 |
| Min. Platform Height (D) | mm | 1010 | 1130 |
| Ground Clearance | mm | 90 | |
| Lift Rated Capacity | kg | 300 | 250 |
| Platform Extend Capacity | kg | 100 | 80 |
| Platform Size | mm | 1870×730 | |
| Platform Extend Length (F) | mm | 900 | |
| Max Drive Speed (platform Stowed) | km/h | 3～4 | |
| Max.Drive Sp)eed (platform Elevated | km/h | 0.6～1 | |
| Min. Turing Radius | mm | 1900 | |
| Max. Gradbility | % | 10～15 | |
| Driving Wheel Size | mm | Ф250×80 | |
| Caster Size | in | 8 | |
| Driving Motor | v/kw | 2×24/0.5 | |
| Lifting Motor | v/kw | 24/2.2 | |
| Aneroid Battery | v/Ah | 2×12/150 | |
| Charger | v/A | 24/15 | |
| Pothole Protection System | Automechanism | ||
| Overall Length | mm | 2030 | |
| Overall Width | mm | 900 | |
| Overall Height | mm | 2120 | 2240 |
| Net Weight | kg | 1300 | 1400 |
