| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | FSJY(mini) |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |
| Product Name: | FSJY(mini) Self-propelled Aerial Work Platform Capacity 240Kg | Rated Capacity: | 240kg |
|---|---|---|---|
| Maximum Working Height: | 5000mm | Maximum Platform Height: | 3000mm |
| Overall Dimension: | 1180X760X1830mm | Platform Size: | 1170X600mm |
| Wheel Base: | 990mm | Driver Motor: | 2X24V/0.4KW |
| Lifting Motor: | 24V/0.8KW | Battery: | 2X12V/80Ah |
| Warranty: | 1 Year | ||
| High Light: | 240kg Self Propelled Aerial Work Platform,5000mm Self Propelled Aerial Work Platform,240kg elevated work platform |
||

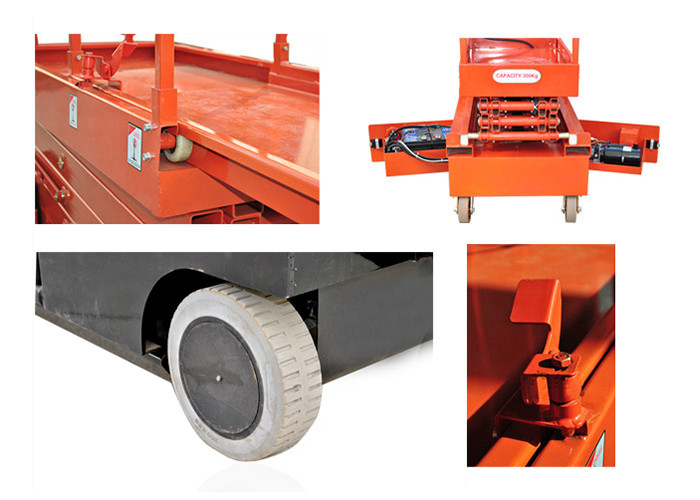

Feature:
SJY Work platform, scissors movement design to keep stable lifting and lowering, with its high capacity and large working place,
could be mainly used in construction area, maintenance for large warehouse, maintenance for street lamp and so on.
Moreover, because of its big solid tire, it could work perfectly in rough ground.
1. DC motor and driving systems.
2. With safety-falling equipment.
Specification:
| Model Number | FSJY0.24-3 (mini) | |
| Lift Rated Capacity | kg | 240 |
| Maximum working height | mm | 5000 |
| Maximum platform height | mm | 3000 |
| Overall Length | mm | 1180 |
| Overall Width | mm | 760 |
| Overall Height | mm | 1830 |
| Platform Size | mm | 1170×600 |
| Ground clearance | mm | 60 |
| Wheel base | mm | 990 |
| Minimum turn radius | mm | 1200 |
| Driver Motor | V/kw | 2×24/0.4 |
| Lifting Motor | V/kw | 24/0.8 |
| Running speed(platform Stowed) | km/h | 4 |
| Running speed(platform Elevated) | km/h | 0.8 |
| Rising/falling speed | sec | 20/30 |
| Battery | V/Ah | 2×12/80 |
| Charger | V/A | 12/24 |
| Maximum climbing ability | % | 10-15 |
| Maximum working allowable angle | / | 2° |
| Driving Wheel | mm | Φ230×80 |
| Front wheel | in | 6 |
| Lifting capacity | kg | 490 |
