| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | GTWY-4000 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

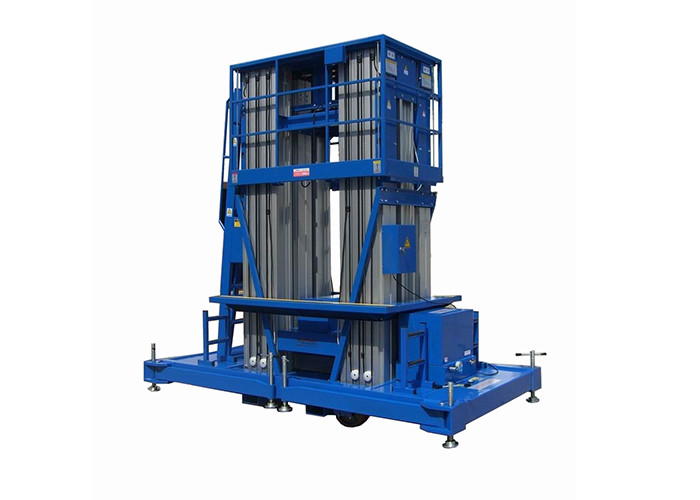

| Product Name: | GTWY-4000 Four Mast Aluminum Aerial Work Platform Capacity 400kg | Capacity: | 400Kg |
|---|---|---|---|
| Stored Dimensions: | 1690x1040x2120mm | Working Height: | 11700mm |
| Platform Height: | 10000mm | Platform Size: | 1480X1000mm |
| Voltage: | 220V/50Hz AC | Power Pack: | 1.5KW |
| Net Weight: | 920Kg | Certification: | CE,ISO9001 |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| Highlight: | Four Mast Aerial Work Platform,180° rotating Aerial Work Platform,350° rotating aerial platform lift |
||
Feature:
1. Four masts are descended or ascended synchronously with excellent stability;
2. With guardrail similar to that of double mast aerial work platform;
3. Platform can be designed to horizontal extension or rotating or both for working by stepping over ground obstacle;
4. Electric driving unit is equipped for moving;
5. Rubber roller can be fitted on driving roller according to customer requirements;
6. Power Supply: Single phase AC;
7. Platform can be extended horizontally (optional);
8. Extended size (optional): 1000,1300,1600mm;
9. Traveling Method: powered propeller as standard,manual traveling as option;
10. Rotating platform as option; Rotating angle range (optional): 180°, 350°, any angle.
Specification:
| Model | GTWY10-4000 | GTWY12-4000 | GTWY14-4000 | GTWY16-4000 | GTWY18-4000 | |
| Working Height | mm | 11700 | 13700 | 15700 | 17700 | 19700 |
| Platform Height | mm | 10000 | 12000 | 14000 | 16000 | 18000 |
| Platform Capacity | kg | 400 | 350 | 300 | 180 | 125 |
| Loading Persons | p | 2 | 2 | 2 | 2 | 2 |
| Platform Size | mm | 1480×1000 | 1480×1000 | 1580×1000 | 1480×1000 | 1480×1000 |
| Voltage | v/hz | Ac220/50 | Ac220/50 | Ac220/50 | Ac220/50 | Ac220/50 |
| Power Pack | kw | 1.5 | 1.5 | 1.5 | 1.5 + 0.75 | 1.5 + 0.75 |
| Stored Dimensions | mm | 1690x1040x2120 | 1690x1040x2480 | 1790x1040x2480 | 2260x1200x2120 | 2260x1200x2220 |
| Net Weight | kg | 920 | 1020 | 1120 | 1480 | 1580 |
