| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | GTWY-2000 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

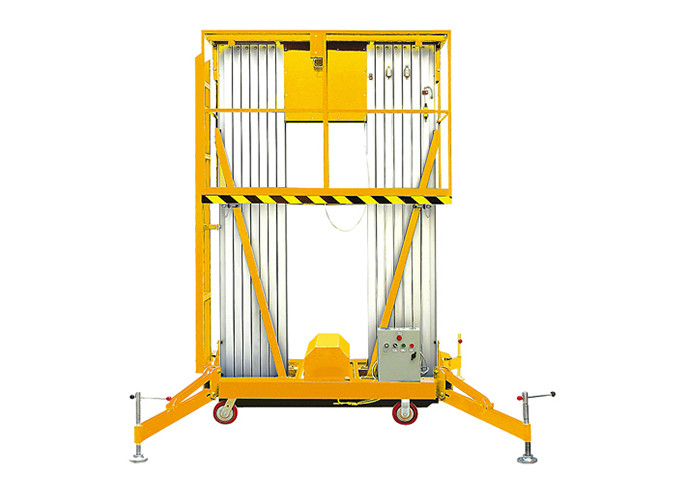

| Product Name: | GTWY-2000 Double Mast Aluminum Aerial Work Platform Capacity 300Kg | Max. Platform Height: | 12000mm |
|---|---|---|---|
| Min. Platform Height: | 1800mm | Lift Rated Capacity: | 300Kg |
| Platform Size: | 1450X600mm | Charger: | 12V/18Ah |
| Lifting Motor: | 220V/0.75-1.7KW | Overall Dimension: | 1790X840X1810mm |
| Net Weight: | 770Kg | Warranty: | 1 Year |
| Highlight: | Double Mast Aerial Work Platform,Aluminum Aerial Work Platform,High Intensity Aerial Platform Lift |
||
Feature:
1. Two masts are descended or ascended synchronously;
2. Entire lifting unit with guardrail offers such high intensity and convenient installation and disassembling that it could complete assembling or disassembling through lifting only once;
3. Easy maneuvering and with straddle legs similar to that of single mast aerial work platform;
4. Conforms to CE;
5. Available accessories: mast stand, auxiliary for step use, side-sheer unit;
6. Power Supply: Single phase AC as standard;DC or both AC as option.
Specification:
| Model No. | GTWY6-2000 | GTWY8-2000 | GTWY10-2000 | GTWY12-2000 | ||
| Mast | Dual Mast | |||||
| Max. Platform Height | mm | 6000 | 8000 | 10000 | 12000 | |
| Max. Machine Height | mm | 7050 | 9050 | 11050 | 13050 | |
| Min. Platform Height | mm | 1800 | 1800 | 1800 | 2020 | |
| Ground Clearance | mm | 80 | 80 | 80 | 80 | |
| Lift Rated Capacity | kg | 300 | 300 | 250 | 200 | |
| Platform Size | mm | 1210×600 | 1210×601 | 1450×600 | 1450×601 | |
| Outspread Size | mm | 1880×1760 | 1880×1761 | 2220×1960 | 2250×2570 | |
| Electrical Source | AC | v | 220-240 | 220-241 | 220-242 | 220-243 |
| DC | v | 12 | 12 | 12 | 12 | |
| Aneroid Battery | V/Ah | 2×12/75 | 2×12/76 | 2×12/77 | 2×12/78 | |
| Charger | V/A | 12/15 | 12/16 | 12/17 | 12/18 | |
| Lifting Motor | AC | V/kw | 220/0.75-1.5 | 220/0.75-1.6 | 220/0.75-1.7 | 220/0.75-1.8 |
| DC | V/kw | 12/2.5 | 12/2.6 | 12/2.7 | 12/2.8 | |
| Overall Length | mm | 1560 | 1560 | 1790 | 1790 | |
| Overall Width | mm | 840 | 840 | 840 | 890 | |
| Overall Height | mm | 1810 | 1810 | 1810 | 2030 | |
| Overall | AC | Kg | 570 | 630 | 730 | 825 |
| Net Weight | DC | kg | 610 | 670 | 770 | 865 |
