| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | LGA |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 500 sets/mouth |
| Product Name: | LGA-10 LGA-15 LGA-20 LG-25 Stowed Height 199cm Aluminum Material Lift | Rated Capacity: | 200-350kg |
|---|---|---|---|
| Length Operating: | 1460mm-2040mm | Length-Stowed: | 740-790mm |
| Width Standard Base: | 800mm | Height-Stowed: | 1990mm |
| Material: | Special Steel | Color: | Red,Green,Blue,White Etc |
| Net Weight: | 117.9kg-204.1kg | Warranty: | 1 Year |
| After Service: | On-line Service,free Spart Parts | ||
| High Light: | Stowed Height 199cm Material Lift,771lbs Material Lift,199cm Aluminum Material Lift |
||

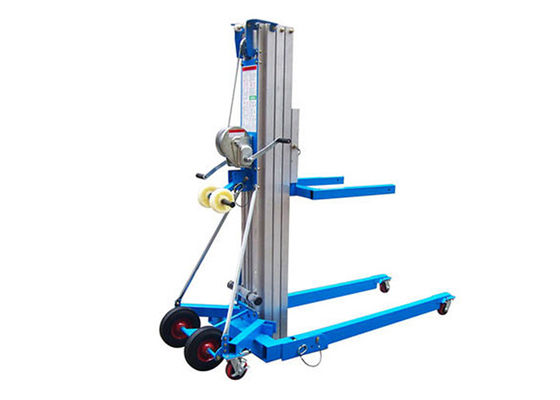

LGA Aluminum Material Lifts Easy operation
1. Lowering easily,To make you lift quickly and convenient, the LGA super material lift can be operated by one person for lifting and moving the goods.
2. Multiple optional parts such Lighthouse device,LGA series material lift can be equipped with multiple fork, such as the lighthouse device can be used for emergency lighting and other uses.
3. The stowed height of the LGA series materials lift is lower than 2m, it is easily to pass cross the standard doorway, the Roller equipped on the back makes the transportation more convenient.
| Model | LGA-10 | LGA-15 | LGA-20 | LGA-25 |
| Standard Forks | 9 ft 9 in | 14ft 7 1/2in | 19ft 6in | 24ft 4 in |
| 3m | 4.5m | 6m | 7.4m | |
| Length Operating | 57 1/2in | 72 1/2in | 80 1/2in | 80 1/2in |
| 146cm | 184cm | 204cm | 204cm | |
| Load Capacity/at 18" load center | 771lbs | 660lbs | 550lbs | 440lbs |
| 350kg | 300kg | 250kg | 200kg | |
| Length-Stowed | 29in | 29in | 29in | 31in |
| 74cm | 74cm | 74cm | 79cm | |
| Width Standard Base | 31 1/2in | 31 1/2in | 31 1/2in | 31 1/2in |
| 80cm | 80cm | 80cm | 80cm | |
| Height-Stowed | 78 1/2in | 78 1/2in | 78 1/2in | 78 1/2in |
| 199cm | 199cm | 199cm | 199cm | |
| Net Weight-Standard Base | 260lbs | 317lbs | 450lbs | 450lbs |
| 117.9kg | 143.8kg | 183.7kg | 204.1kg |
