| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | DL500 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |
| Product Name: | DL500 Below Hook Drum Lifter For Horizontal Direction Drum Lifting Load Capacity 900Kg | Model: | DL500 |
|---|---|---|---|
| Standard: | ANSI/ASME B30 | Usage: | Horizontal Direction Drum Lifting |
| Load Capacity: | 900Kg | Drum: | 55 Gallon Steel, 210L Plastic |
| Net Weight: | 9Kg | Certification: | CE,ISO9001 |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| Highlight: | ansi/asme b30 oil drum lifter,900kg below hook drum lifter,chain sling drum lifter |
||
Features:
1. The Chain Sling has various applications for lifting of large or small steel drums, with or without lids.

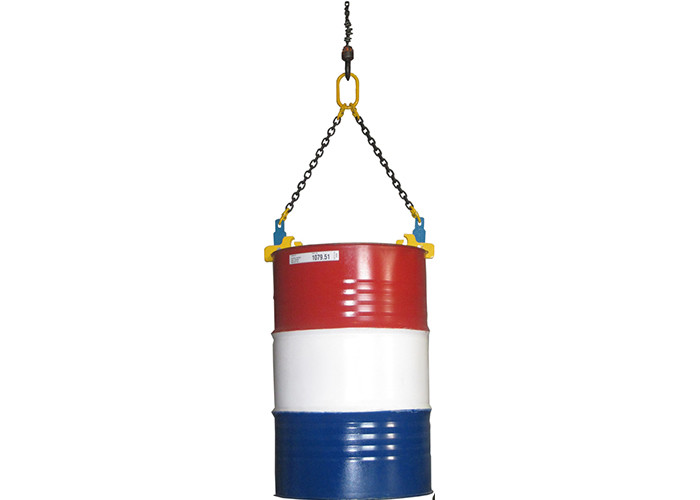

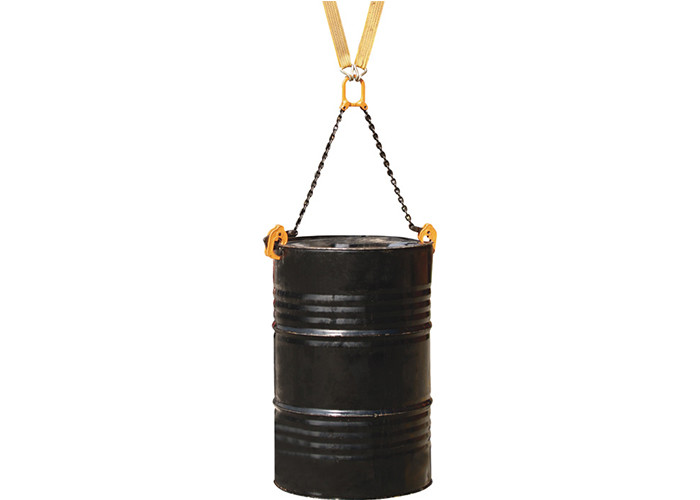

2. It can be used in the up-right lifting position (Lidded) or side angle lifting (as shown).
3. It is used in conjunction with an overhead crane or fork truck fitted with a Tyne Hook or Jib Attachment.

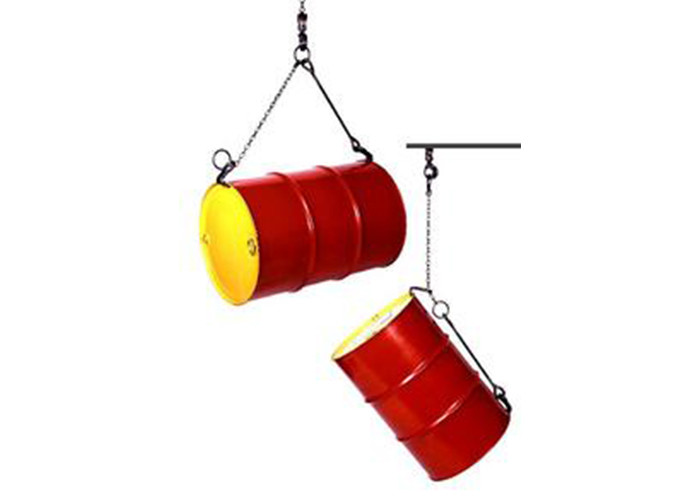

▲ Designed for drum lifting in horizontal direction.
▲ 150% overload factory tested.
▲ Conforms to EC council directive 98/37/EC machinery, American standard ANSI/ASME B30.
Specification:
| Model | DL500 | |
| Capacity | kg | 900 |
| Drum | 55 gallon steel, 210L plastic | |
| Net Weight | kg | 9 |
| Minimum Qty. | pcs | 20 |
