| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE, ISO9001 |
| Model Number: | HLT15S-I |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

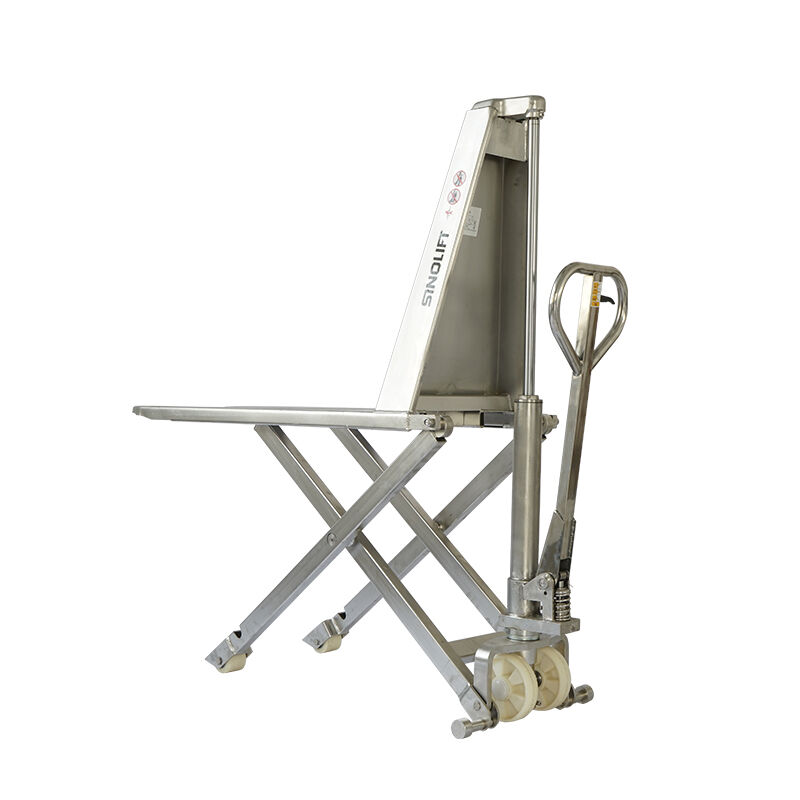

| Product Name: | Sinolift HLT15S-I 304 Stainless Steel High Lift Pallet Truck For Warehouses, Logistics & Medical Facilities | Rated Load Capacity: | 1500kg |
|---|---|---|---|
| Forks Minimum Height: | 85mm | Forks Maximum Height: | 800mm |
| Fork Thickness: | 50mm | Overall Length: | 1540mm |
| Overall Height: | 1260mm | Minimum Turning Radius: | 1260mm |
| Service Weight: | 118kg |
The Stainless Steel High Lift Hydraulic Pallet Truck is a multi-purpose material handling solution designed for both transporting and lifting loads in demanding and corrosion-sensitive environments. Supplied directly by the original manufacturer, this truck features a reinforced steel structure and 304 stainless steel construction, delivering superior durability, safety, and long service life.
It is widely used in workshops, chemical plants, ports, logistics centers, warehouses, and medical facilities, where high hygiene standards, corrosion resistance, and reliable lifting performance are required.
Key Features:
Manufactured with selected thickened steel plates and 304 stainless steel, the pallet truck offers excellent resistance to corrosion, making it suitable for humid, chemical, and clean-room environments. Compared with standard carbon steel pallet trucks, it provides enhanced safety, a longer lifespan, and a higher overall value.
The truck is equipped with a long hydraulic cylinder, delivering a powerful lifting force and stable load handling. This design allows for a lower overall truck height and a flexible lifting range, while tightly sealed hydraulic components ensure smooth operation, durability, and extended service life.
By combining material transport and high-lift functions, this pallet truck helps operators work more efficiently. Lifting loads to an ergonomic working height reduces frequent bending, minimizes physical strain, and improves overall productivity. Optimized minimum fork height and maximum lifting height make it adaptable to various handling tasks.

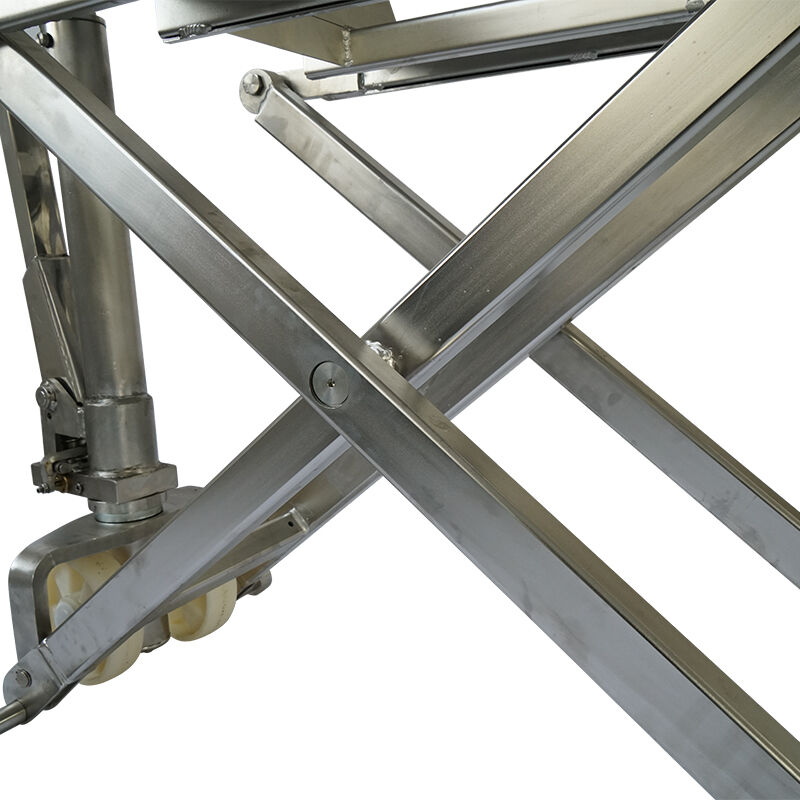

The thickened single scissor mechanism is designed to resist bending and deformation under load. Reinforced support points provide stable load bearing, improved rigidity, and long-term durability, even when handling heavy loads at elevated heights.

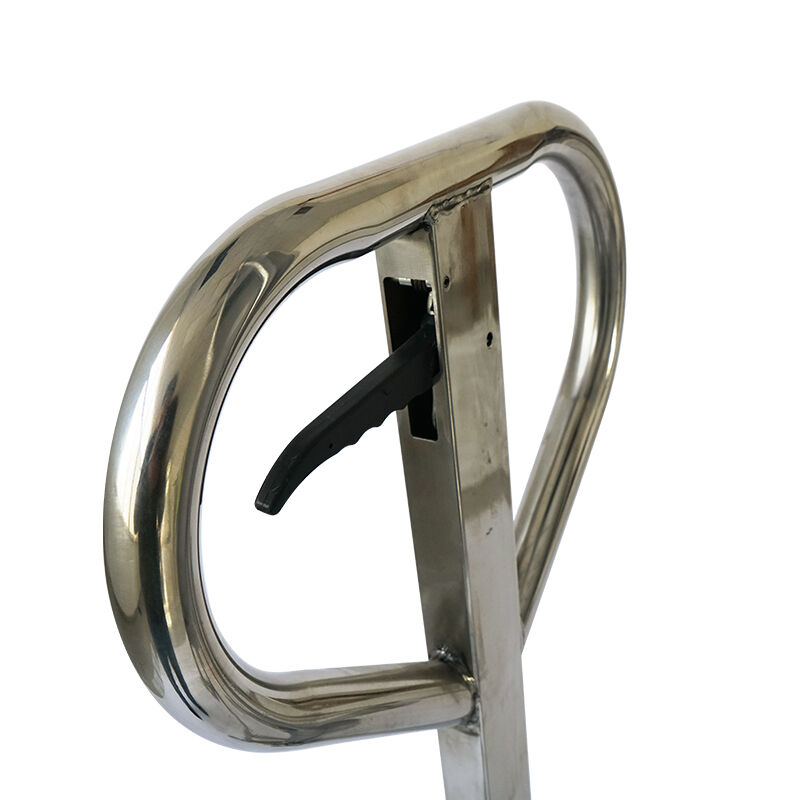

With an ergonomic, large stainless steel handle, operators can lift up to one ton with one hand. The wide 90° pumping stroke ensures fast, powerful, and smooth lifting, while the heavy-duty precision steel spring enables easy rebound, long service life, and smooth handle return without impacting the truck body.
When the truck reaches a certain lifting height, auxiliary support wheels automatically contact the ground to provide additional support and prevent movement, ensuring safe and stable operation. The pallet truck is also equipped with extra-wide, thickened nylon tandem wheels, offering low noise, high load capacity, and smooth, stable travel even during long-term use.
Product Specifications:
| Model | HLT15S-I | |
| Rated Load Capacity | kg | 1500 |
| Forks Minimum Height | mm | 85 |
| Forks Maximum Height | mm | 800 |
| Max. Lifting Stroke (F) | mm | >715 |
| Forks Outside Width | mm | 540/680 |
| Forks Inside Width | mm | 220/360 |
| Fork Dimensions | mm | 1150 |
| Single Fork Width | mm | 160 |
| Fork Thickness | mm | 50 |
| Overall Length | mm | 1540 |
| Overall Height | mm | 1260 |
| Load Wheel Size | mm | Φ80 × 70 |
| Steering Wheel Size | mm | Φ180 × 50 |
| Minimum Turning Radius | mm | 1260 |
| Wheel Material | PU/Nylon | |
| Service Weight | kg | 118 |
