| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | EPS |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 sets/mouth |
| Product Name: | EPS Series Lightweight Material Stacker | Driving Style: | Pedestrian |
|---|---|---|---|
| Rated Load Capacity: | 400kg | Net Weight: | 91kg |
| Warranty: | 1 Year | After Service: | On-line Service,free Spare Parts |
Product Name

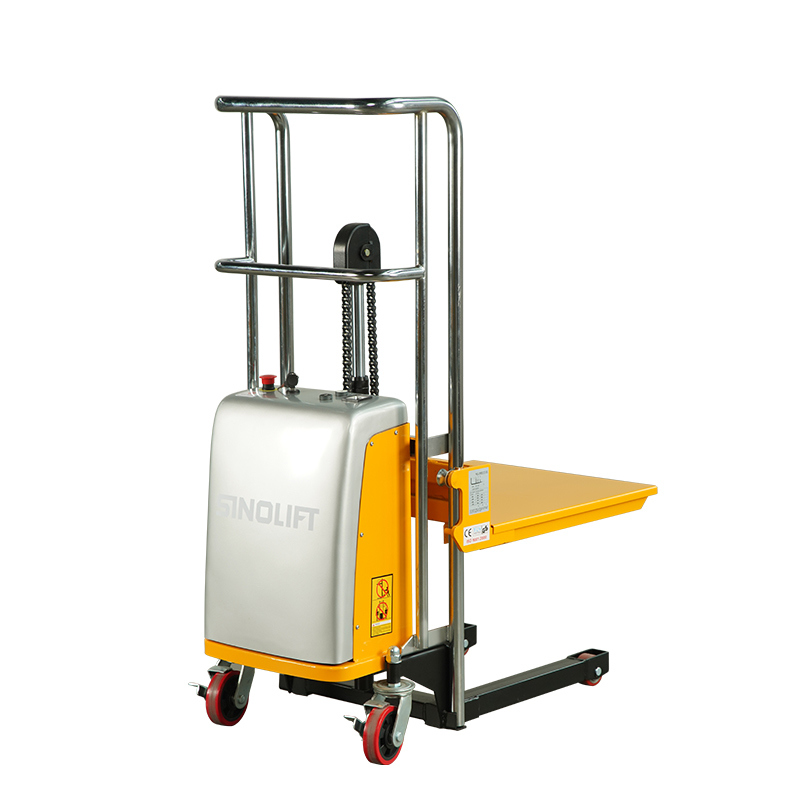

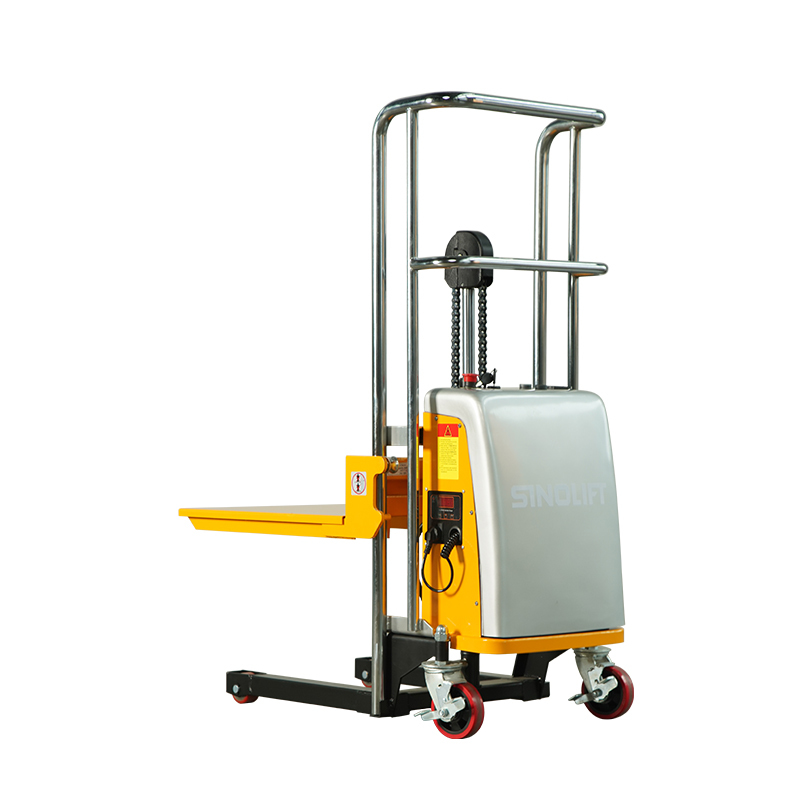

EPS Series Lightweight Material Stacker
A compact, lightweight stacker designed for effortless lifting, smooth maneuvering, and reliable load handling in tight warehouse spaces.
Key Features:
1. Lightweight & Compact Design
Crafted from high-quality steel with precision engineering, the EPS stacker features fast and convenient foot-pedal lifting, precise height control, eco-friendly operation, stable performance, and easy maintenance.
2. Seamless Chrome-Plated Steel Frame
Formed from a single seamless steel pipe, the left and right columns are perfectly symmetrical, smooth, and visually sleek, presenting a modern and refined appearance.

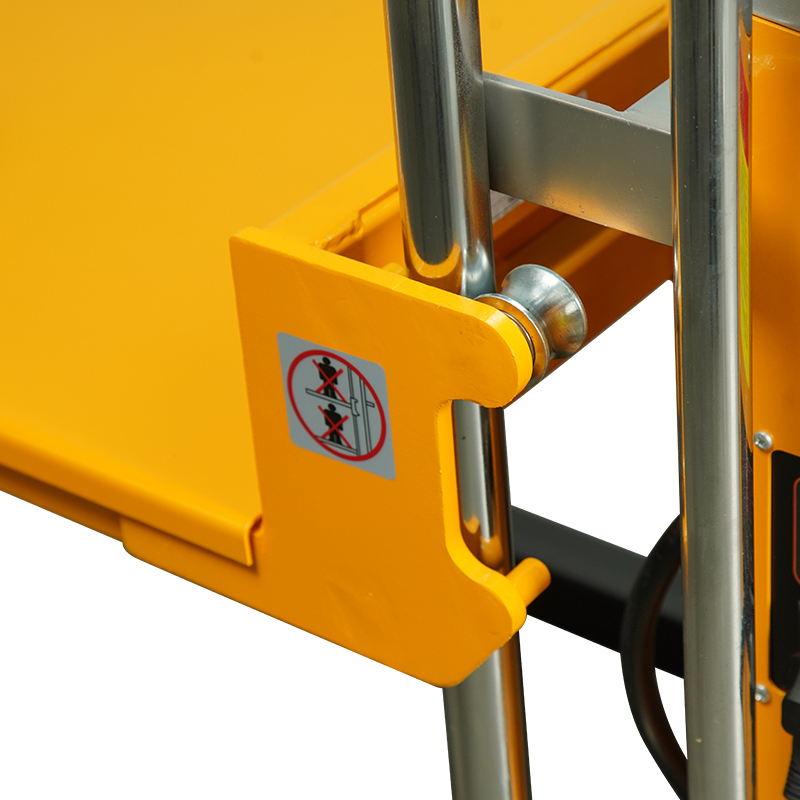

3. Durable Integral Forks
U-shaped cover forks are made of 5mm Q235B carbon steel, bent and welded for strength. Powder-coated and baked for a lasting finish, they resist deformation under heavy loads.
4 . Electric Lifting for Effortless Handling

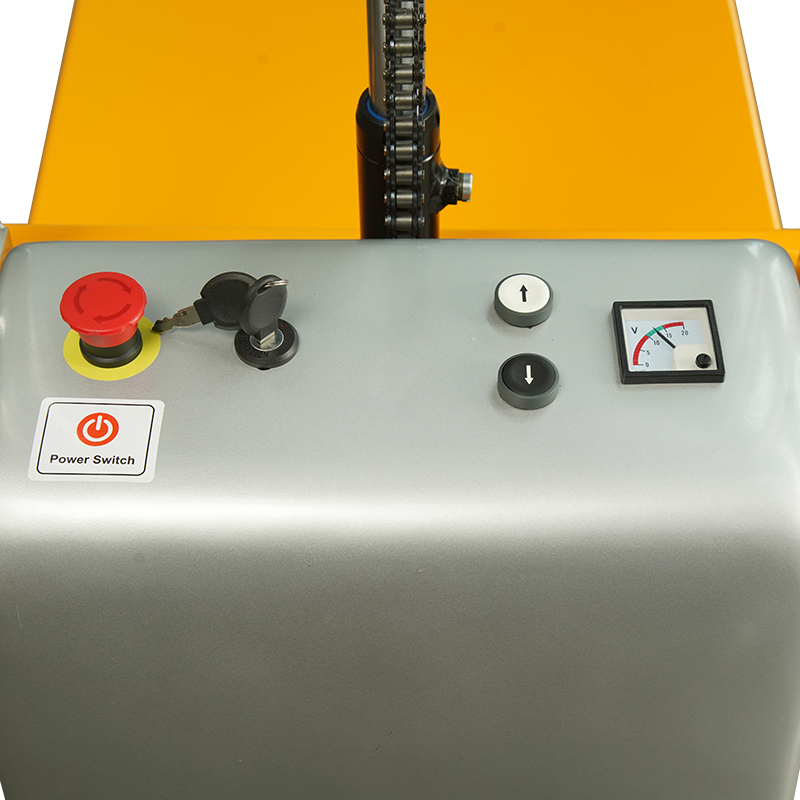

Lift loads effortlessly with electrically controlled buttons at a speed of approximately 5 cm/s, reducing manual strain and improving efficiency.
5. Easy Maneuverability in Tight Spaces
Lightweight structure with a small turning radius, combined with PU swivel rear wheels, allows smooth navigation in narrow aisles.
6. Reinforced Chain for Safe, Stable Lifting
Thickened, reinforced chains ensure stable lifting and lowering, higher load capacity, and enhanced cargo safety.
Product Specifications
| Parameter | Unit | PS0485J | PS0412J | PS0415J | FP0485 | FP0412 | FP0415 |
| Rated Load Capacity | kg | 400 | 400 | 400 | 400 | 400 | 400 |
| Max Height | mm | 1075 | 1425 | 1725 | 980 | 1330 | 1630 |
| Lifting Height | mm | 765 | 1115 | 1415 | 650 | 1000 | 1300 |
| Platform Height | mm | 85-850 | 85-1200 | 85-1500 | 200-850 | 200-1200 | 200-1500 |
| Overall Height | mm | 600 | 600 | 600 | 590 | 590 | 590 |
| Platform Size | mm | 650x576 | 650x576 | 650x576 | 650x550 | 650x550 | 650x550 |
| Fork Size | mm | 650x110 | 650x110 | 650x110 | - | - | - |
| Steering Wheel Size | mm | φ127x40 | φ127x40 | φ127x40 | φ150x40 | φ150x40 | φ150x40 |
| Load Wheel Size | mm | φ75x40 | φ75x40 | φ75x40 | φ150x40 | φ150x40 | φ150x40 |
| Net Weight | kg | 75 | 81 | 91 | 70 | 76 | 86 |
| Units per Pallet | Units/Pallet | 4 | 4 | 4 | 4 | 4 | 4 |
| Pallet Dimensions | mm | 1530x1330x750 | 1880x1330x750 | 2140x1340x750 | 1820x1270x750 | 2120x1300x780 | 2310x1260x750 |
