| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | EPT15V |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 DAYS |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
|---|---|---|---|
| Warranty Of Core Components: | 1 Year | Brand Name: | SINOLIFT |
| Weight: | 145Kg | Rated Capacity: | 2000kg |
Product Name

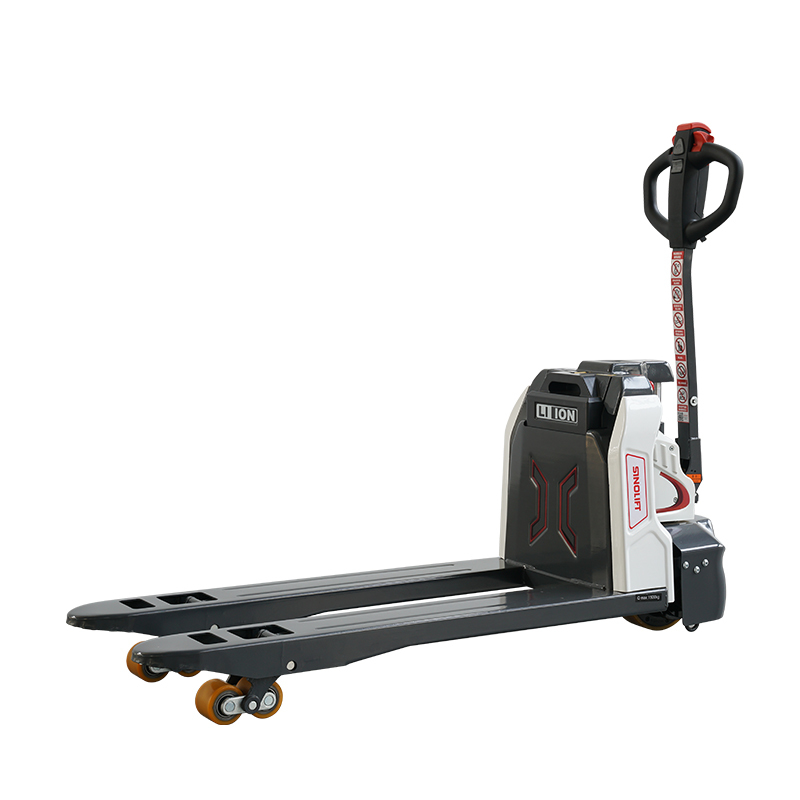

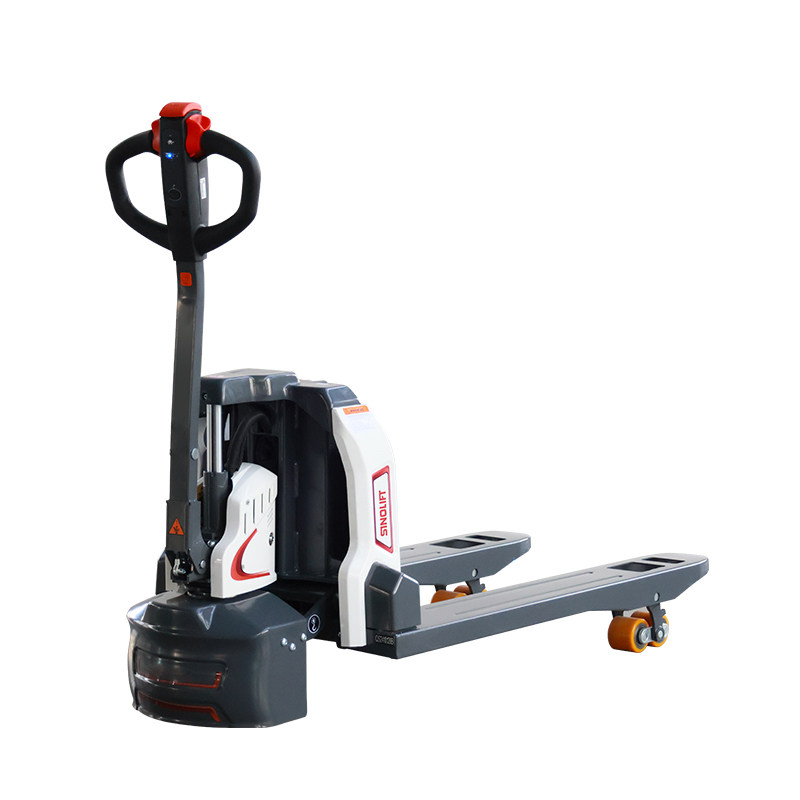

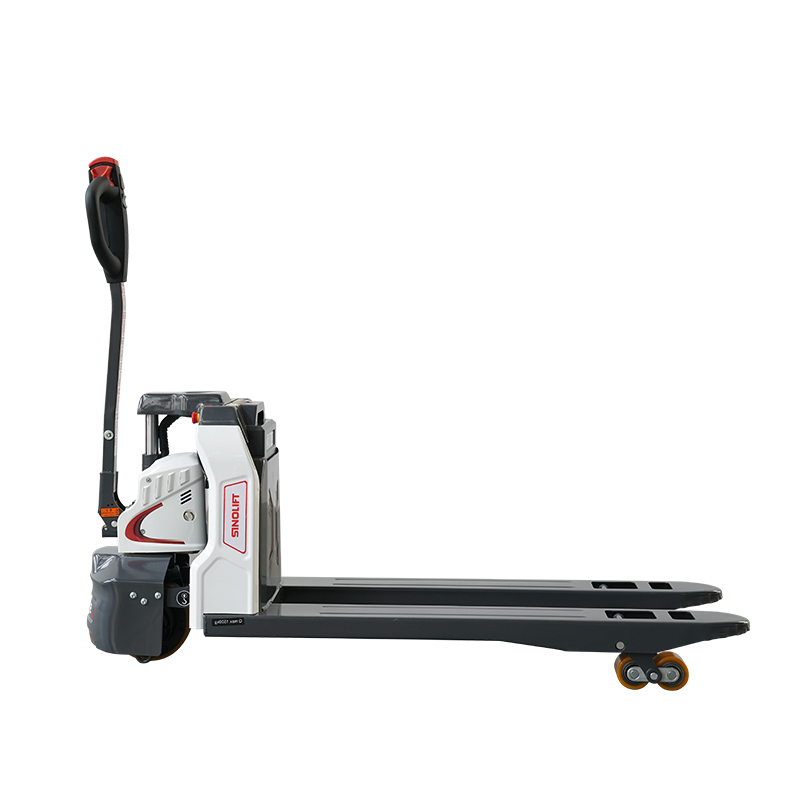

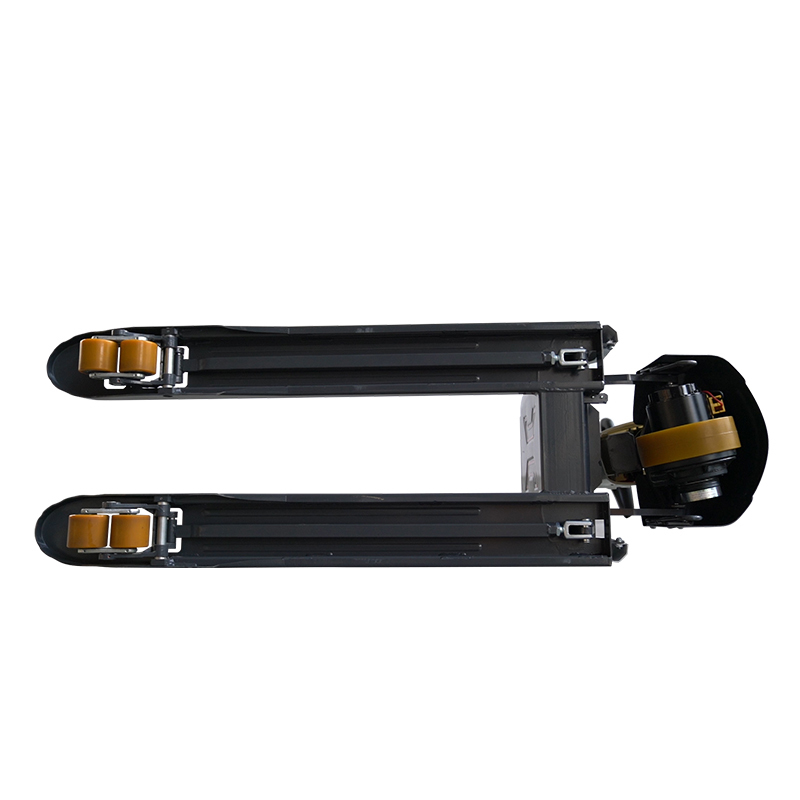

EPT15V Heavy-Duty Electric Pallet Truck
Product Description:

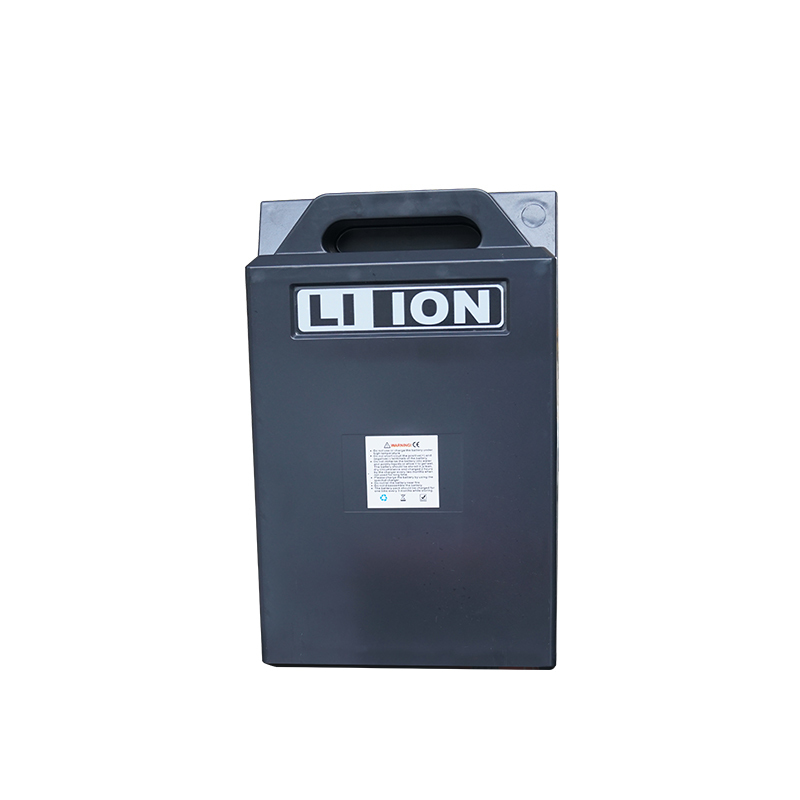

The EPT15V Heavy-Duty Electric Pallet Truck is designed for demanding environments, combining a rugged design with cutting-edge technology to deliver superior performance. Featuring military-grade reinforced forks, an easy, quick battery change system, and advanced climbing capabilities, this pallet truck is ideal for both industrial and logistics applications. Designed with durability and ease of use in mind, the EPT15V ensures smooth operation, even in challenging environments.
Highlights:
Product Specifications
| Parameter | Unit | EPT15V | EPT20V |
| Model | EPT15V | EPT20V | |
| Drive Type | Electric | ||
| Operation Mode | Walk-behind | ||
| Rated Load Capacity | kg | 1500 | 2000 |
| Load Center | mm | 600 | |
| Front Overhang | mm | 950 | |
| Wheelbase | mm | 1270 | |
| Self-weight (with battery) | kg | 142 | 145 |
| Drive Wheel Size | mm | Mechanical Steering | |
| Load Wheel Size | mm | 180×70 | |
| Wheel Quantity (Front/Rear, X=Drive) | - | 1X/4 | |
| Wheel Track (Load end) | mm | 390/525 | |
| Lifting Height | mm | 195 | |
| Handle Min/Max Height | mm | Mechanical Steering | |
| Fork Lowest Height | mm | 85 | |
| Overall Length | mm | 1620 | |
| Underbody Length | mm | 470 | |
| Overall Width | mm | 550/685 | |
| Fork Dimensions | mm | 50/160/1150 | |
| Fork Outside Width | mm | 550/685 | |
| Ground Clearance at Wheelbase Center | mm | 35 | |
| Aisle Width (1000×1200 pallet) | mm | 1820 | |
| Aisle Width (800×1200 pallet) | mm | 1870 | |
| Turning Radius | mm | 1380 | |
| Travel Speed (Loaded/Unloaded) | km/h | 4.2/4.5 | |
| Max Gradeability (Loaded/Unloaded) | % | 6/10 | |
| Drive Motor Power | kW | 0.75 | 0.9 |
| Lift Motor Power | kW | 0.5 | 0.5 |
| Battery Voltage/Capacity | V/Ah | 24/20 | 48/15 |
| Battery Weight (±5%) | kg | 5.5 | |
| Noise Level | dB(A) | ≤70 | |
| Steering Type | Mechanical Steering | ||
