| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | ACR |
| Minimum Order Quantity: | 1 UNIT |
| Price: | $370-$550 1unit |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 15DAYS |
| Supply Ability: | 100 units |
| Video Outgoing-inspection:: | Provided | Machinery Test Report:: | Provided |
|---|---|---|---|
| Warranty Of Core Components:: | 1 Year | Brand Name:: | SINOLIFT |
| Weight: | 155Kg | Rated Capacity:: | 2000kg |
| Length Of Fork: | 1500mm |
Product Name

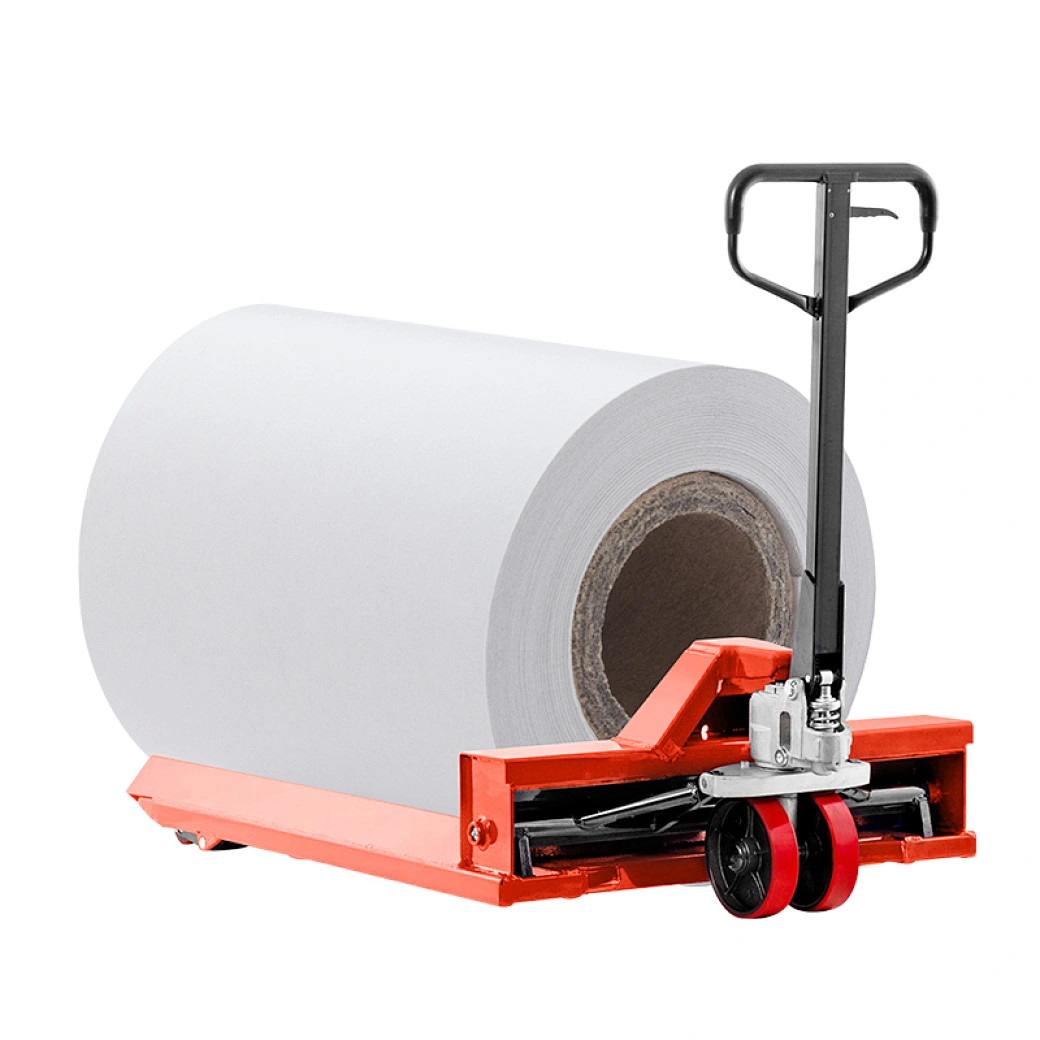

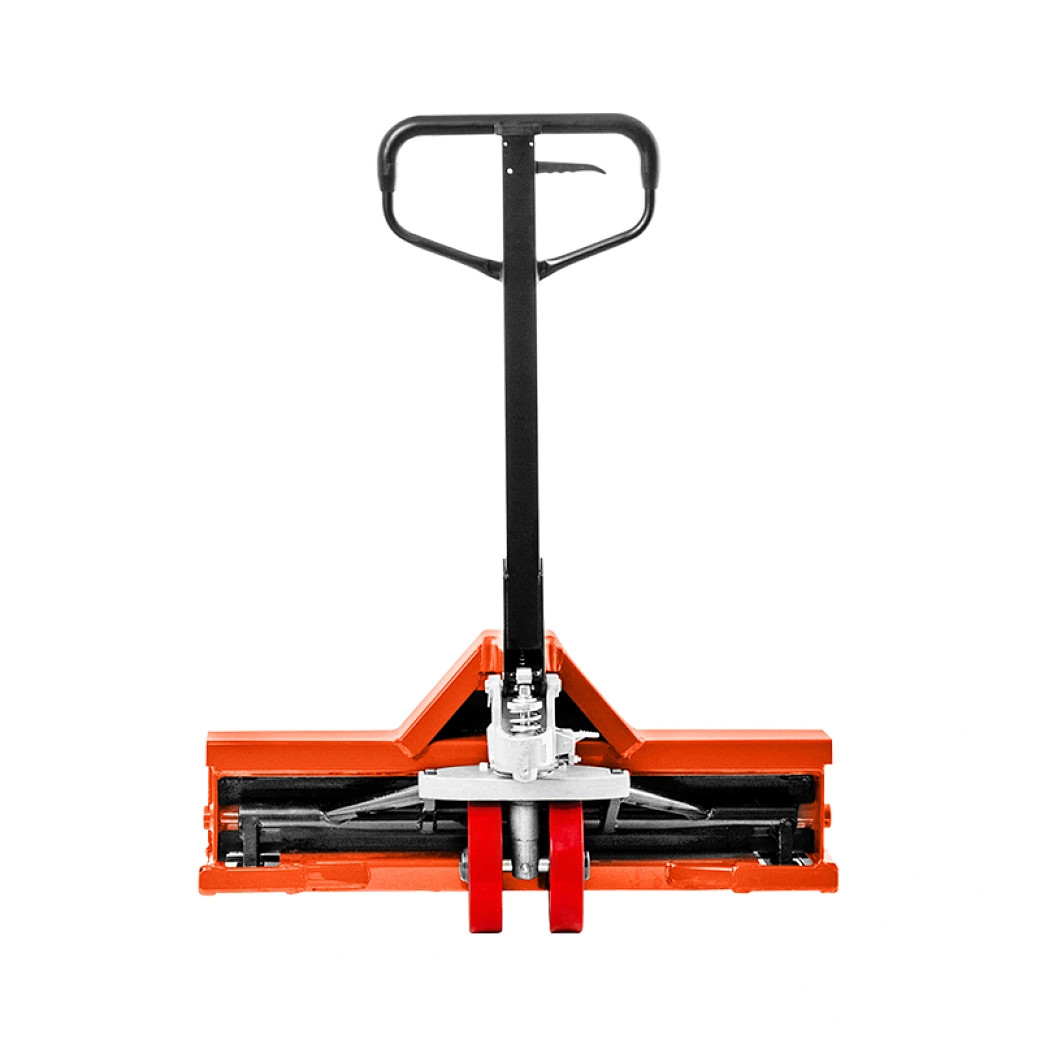

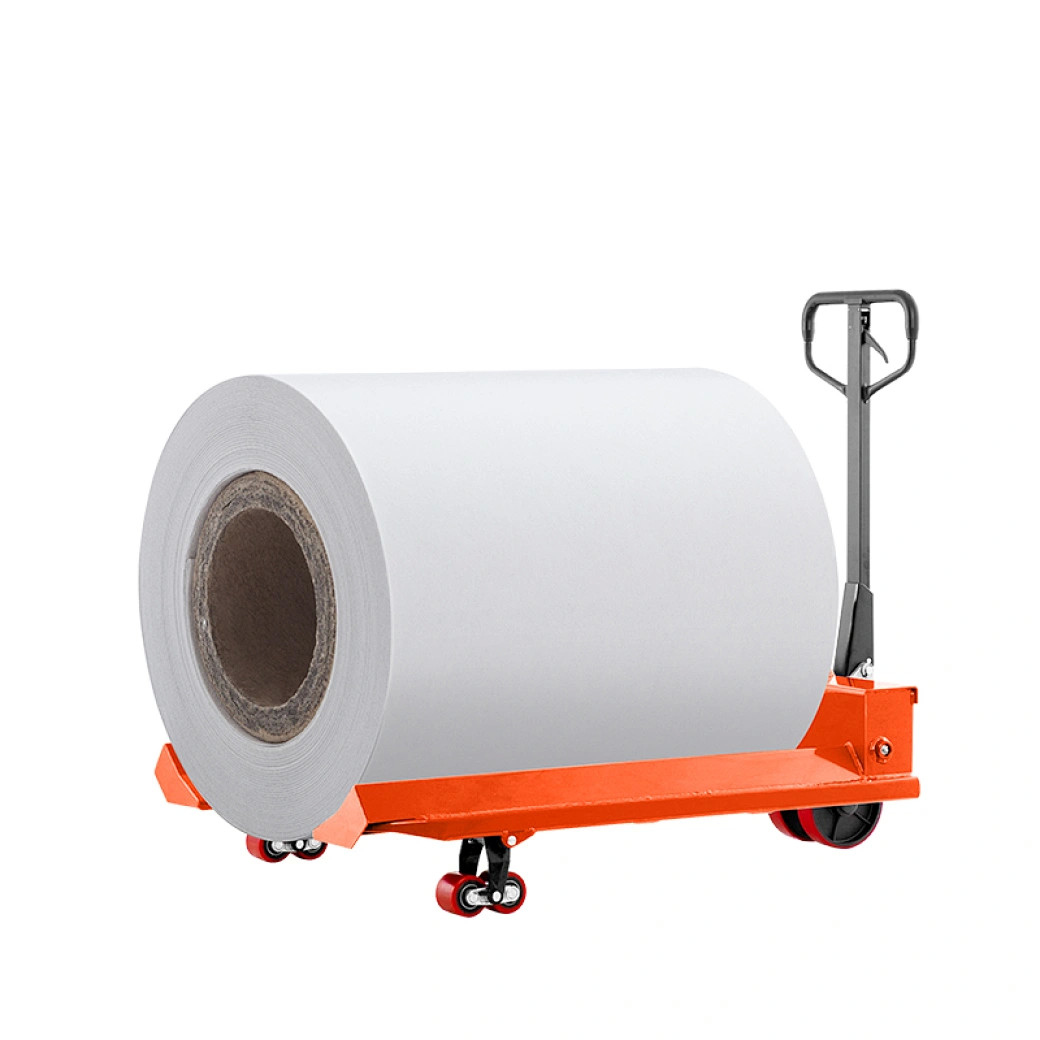

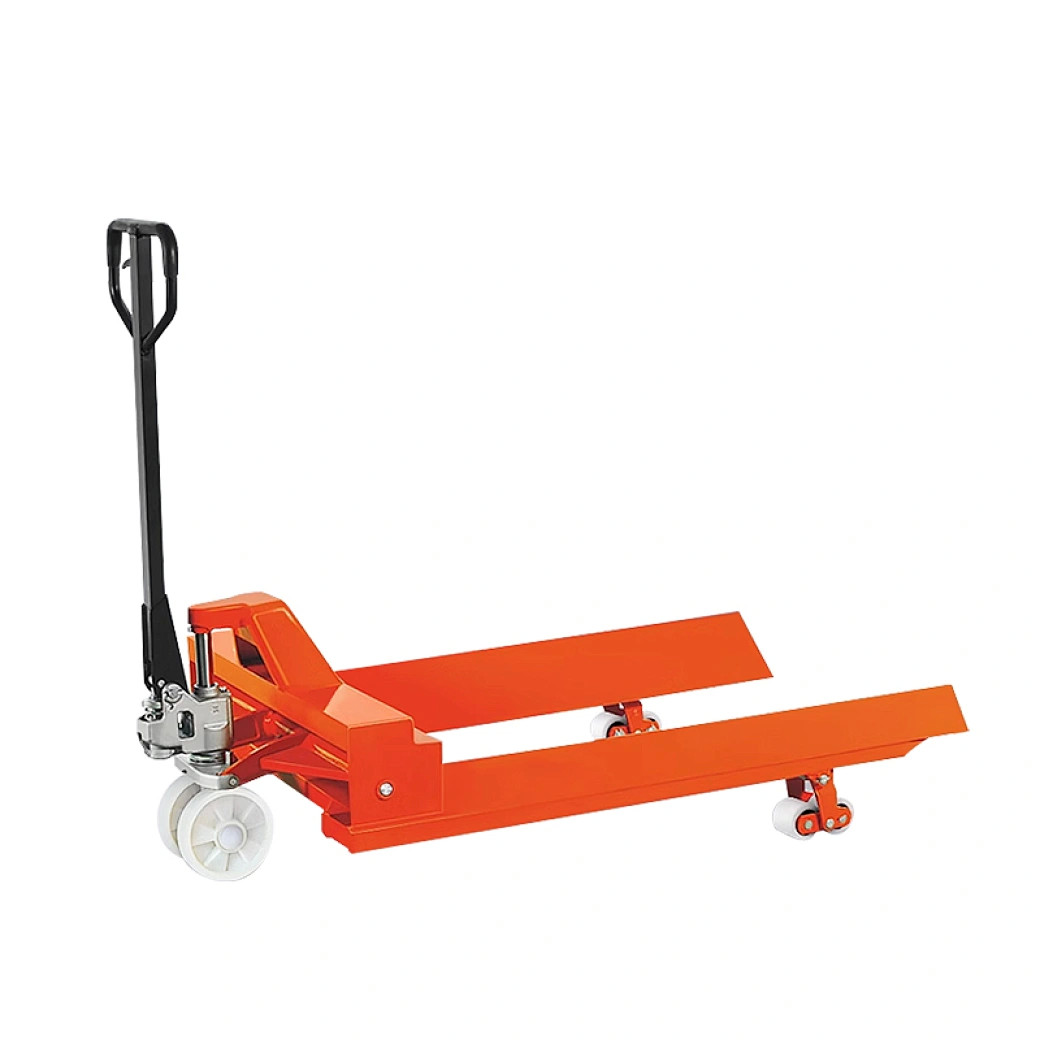

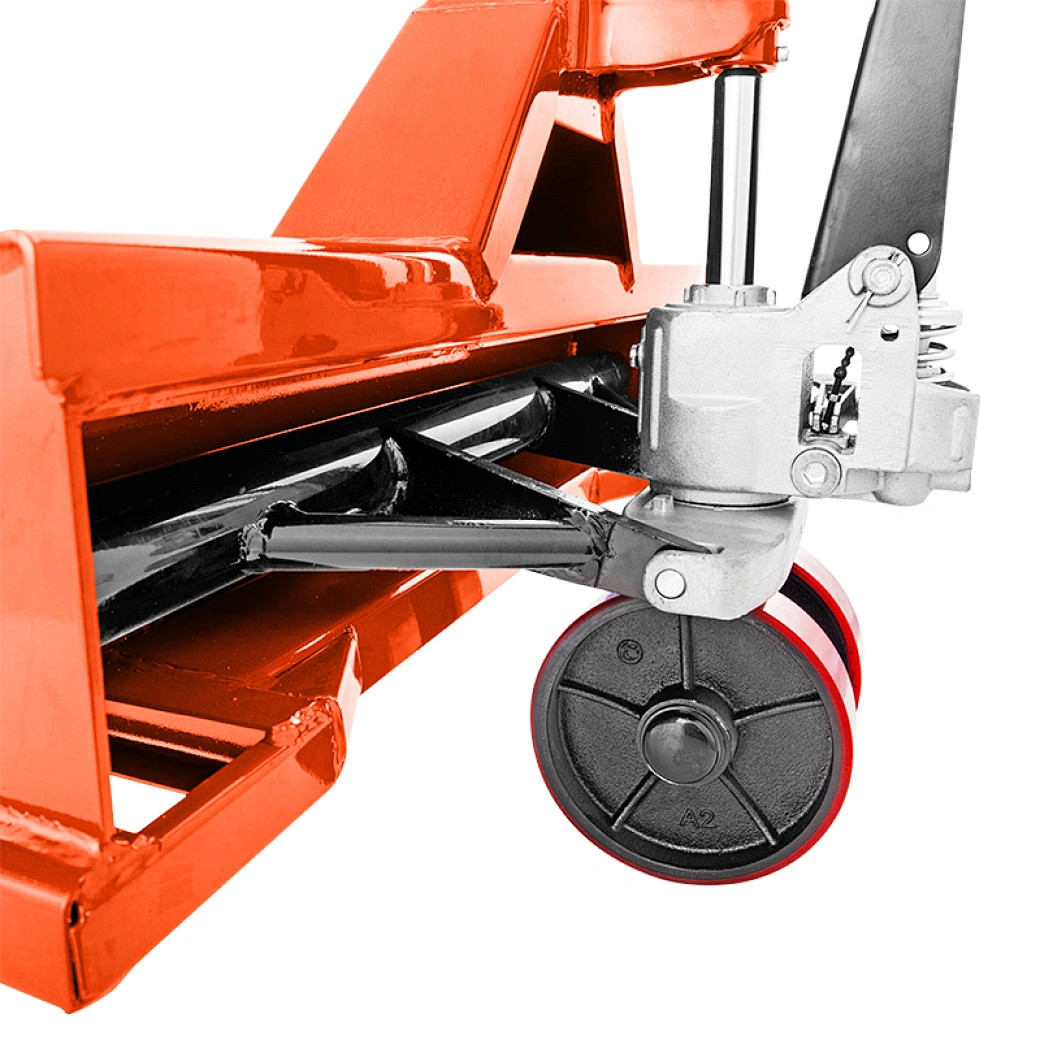

ACR Roll hand pallet truck
Rhombus fork design, used for handling cylindrical goods of various diameters.Commonly used in paper making, printing, packaging, textile, building materials and other industries.Unique diamond-shaped fork design to meet the needs of handling cylindrical goods of various diameters
| Feature | Unit | ACR25A | ACR25B | ACR25C | ACR25D |
| Load Capacity | kg | 2500 | 2500 | 2500 | 2500 |
| Applicable Coil Diameter | mm | Φ400-600 | Φ600-800 | Φ800-1200 | Φ1200-1600 |
| Fork Overall Width | mm | 760 | 850 | 1000 | 1150 |
| Steering Rear Wheel | mm | Φ200X50 or Φ180X50 | Φ200X50 or Φ180X50 | Φ200X50 or Φ180X50 | Φ200X50 or Φ180X50 |
| Load Front Wheel (Single) | mm | Φ78X100 | Φ78X100 | Φ78X100 | Φ78X100 |
| Load Front Wheel (Dual) | mm | Φ78X70 | Φ78X70 | Φ78X70 | Φ78X70 |
| Fork Overall Length | mm | 800/900/1000/1100/1150/1220 - Max 1500 | 800/900/1000/1100/1150/1220 - Max 1500 | 800/900/1000/1100/1150/1220 - Max 1500 | 800/900/1000/1100/1150/1220 - Max 1500 |
| Self Weight | kg | 135 | 150 | 155 | 175 |
