| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | DP35C-B |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |
| Product Name: | SINOLIFT DP35C-B Manual Hydraulic Drum Truck | Rated Lifting Capacity: | 30kg |
|---|---|---|---|
| Overall Dimension: | 1025X810X1180mm | Lifting Height: | 500mm |
| Feature: | Easy And Efficient | Certification: | CE,ISO9001 |
| Net Weight: | 65kg | Warranty: | 1 Year |
| After Service: | On-line Service,Spare Parts |
Product Name

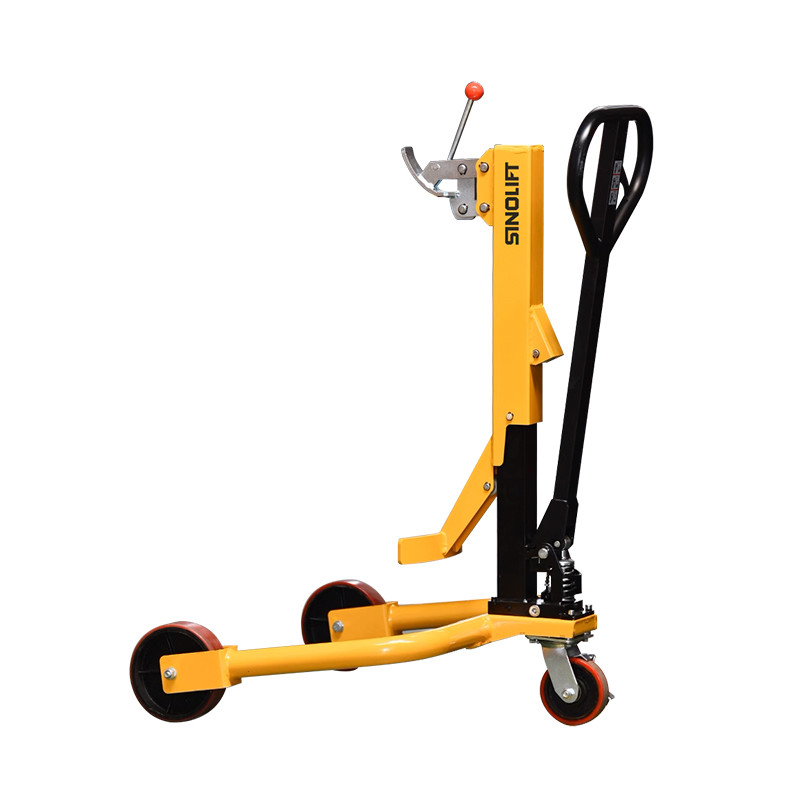

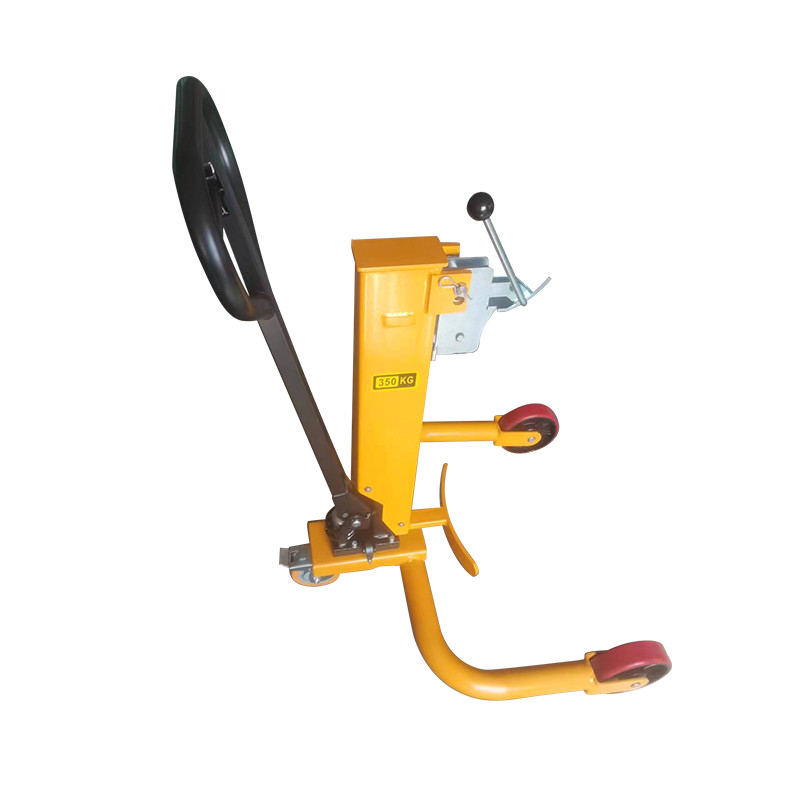

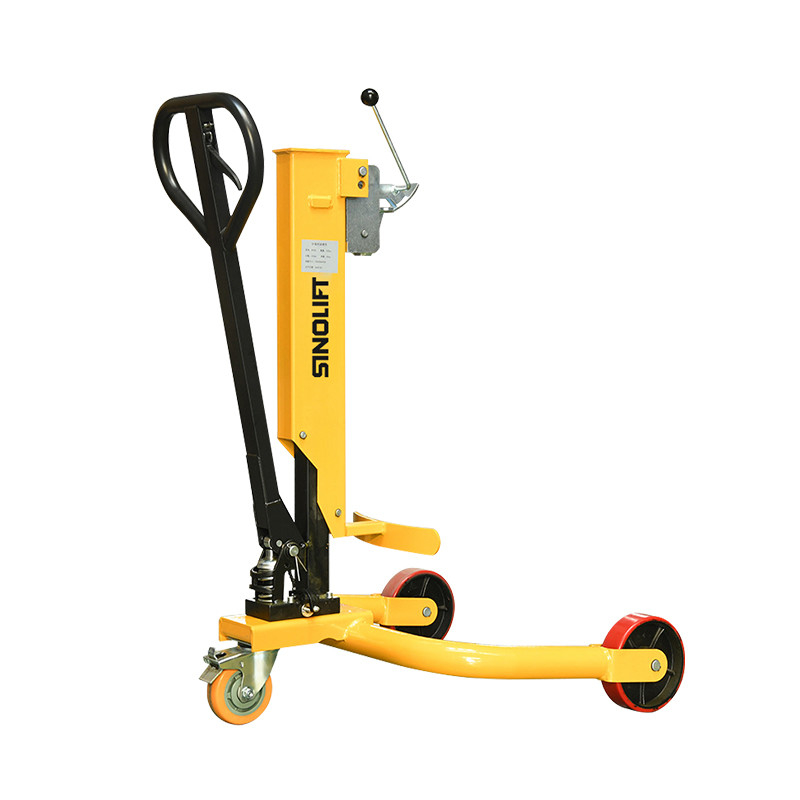

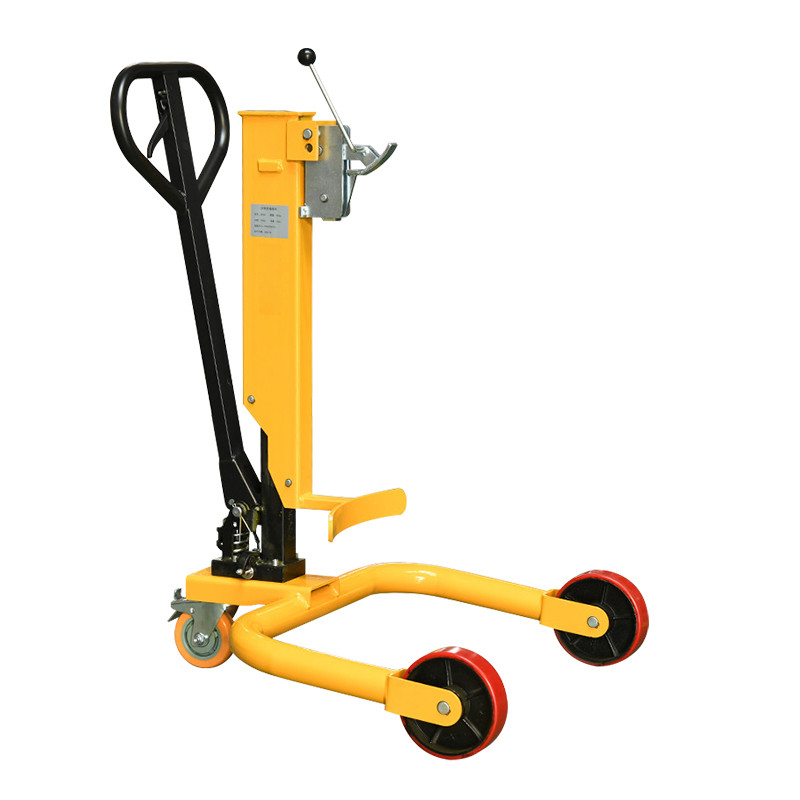

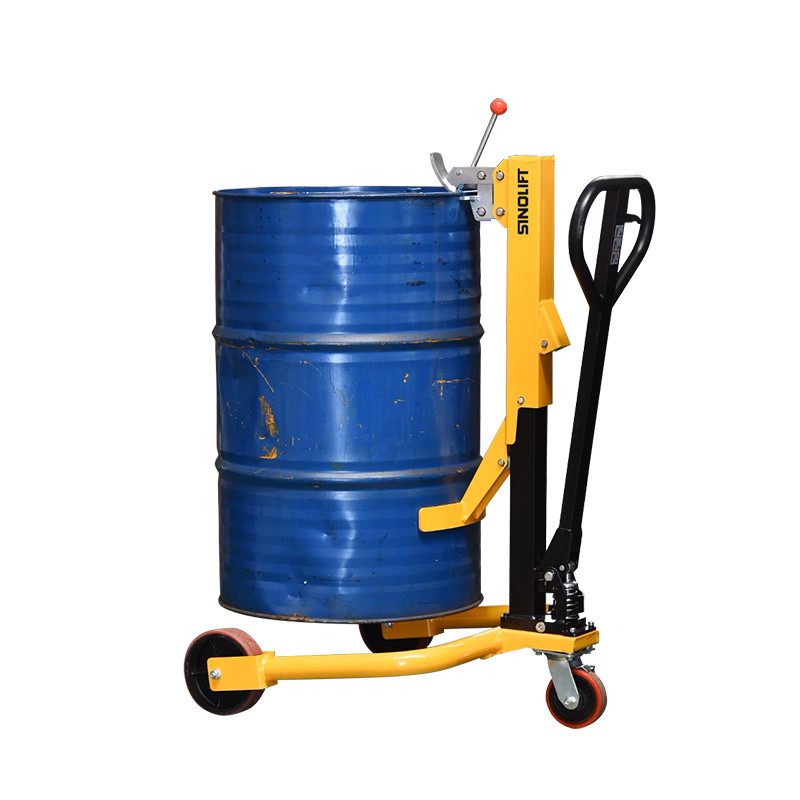

DP35C-B Manual Hydraulic Drum Truck
01 One-Hand Pressure Release
Simply lift the handle to release pressure - effortless operation
02 Auto-Lock Beak Clamp
Gravity-engaged beak locking system - securely grips even empty drums
03 Sealed Hydraulic Cylinder
Integral sealing technology eliminates leaks for long-term reliability
04 Arc-shaped Barrel Bracket
Large-radius steel plate protects barrels during transport
05 Multi-Spec Drum Compatibility
Adapts to various drum types, enabling wider applications
06 Positive Beak Locking - Industrial-Grade Durability
Features automatic beak-lock design with bilateral spring-loaded locking mechanisms to prevent accidental drum disengagement
07 Arc-shaped Bucket Bracket, Snug Fit to the Barrel Body
The base is made of large arc-shaped steel plate, offering durability, sturdiness, and corrosion resistance. The curved design ensures a tighter fit to the barrel, providing enhanced stability.
Product Specifications
| Technical Parameters/Model | DP35C | DP35B | DP35C-1 | DP35B-1 | |
| Product Feature | U-Shaped Legs | Right-Angle Legs | U-Shaped Legs | Right-Angle Legs | |
| Rated Load Capacity | kg | 350 | 350 | 350 kg | 350 kg |
| Lifting Height | mm | 250 | 250 | 250 | 250 |
| Inner Leg Width | mm | 645 | 1000 | 640 | 1000 |
| Front Wheel Diameter | mm | Φ180 | Φ125 | Φ180 | Φ125 |
| Overall Height | mm | 1180 | 1140 | 1150 | 1185 |
| Overall Length | mm | 870 | 810 | 840 | 855 |
| Overall Width | mm | 780 | 1156 | 790 | 1135 |
| Net Weight | kg | 40 | 46 | 39 | 47 |
| Compatible Drums | Fits 55-gallon steel/210L plastic drums | ||||
