| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Model Number: | NPT |
| Minimum Order Quantity: | 1 UNIT |
| Price: | $480-$530 1unit |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 15DAYS |
| Supply Ability: | 100 units |
| Video Outgoing-inspection:: | Provided | Machinery Test Report:: | Provided |
|---|---|---|---|
| Warranty Of Core Components:: | 1 Year | Brand Name:: | SINOLIFT |
| Weight: | 180Kg | Rated Capacity:: | 1000kg |
| Length Of Fork: | 800mm | Width Of Straddle (Interior): | 1210mm |
| Width Of Straddle (Exterior): | 1470mm |

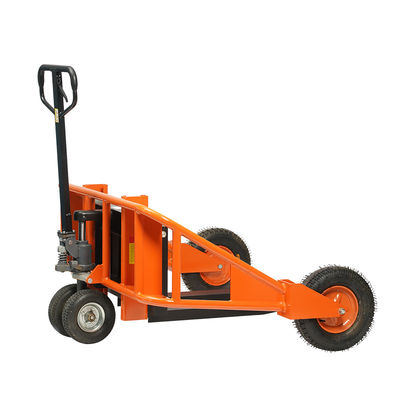

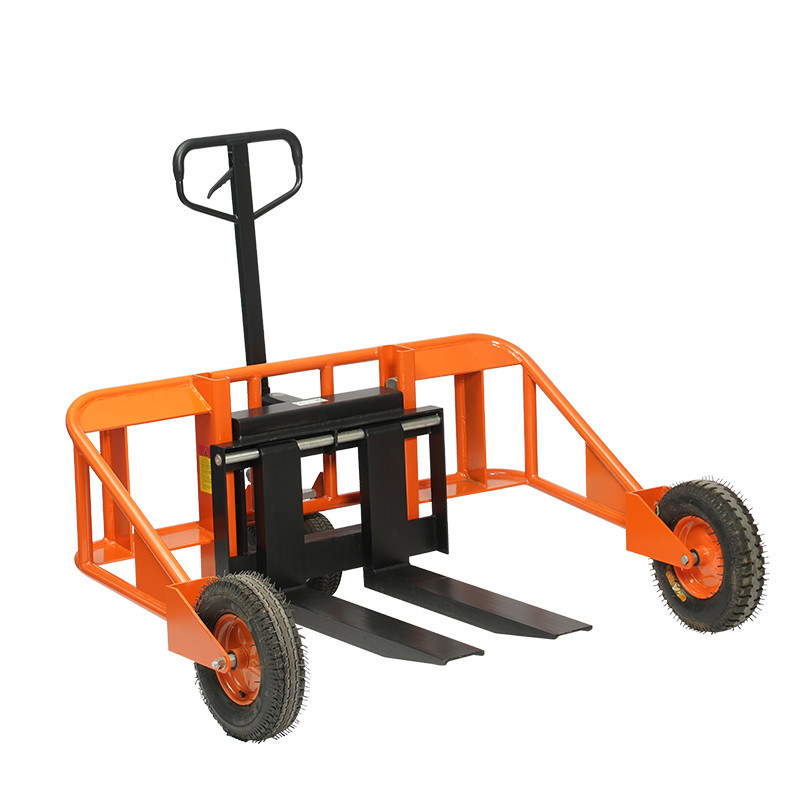

SINOLIFT NPT Serise Capacity Load 1000Kg Rough Terrain Pallet Truck
Quick Overview
2,000 lb capacity All terrain pallet truck with adjustable 9 ½”-26” wide forks x 32” fork length. Features: adjustable forks, 3-postion handle, pneumatic wheels and 12” horizontal load center at 2,000 lbs.
Product Description
The ALL-T-2 manual push, manual lift pallet jack has a raised height of 9” and 3 1/8” lowered height. Specially designed for construction sites, gravel pits and nurseries. Features pneumatic tires with sealed bearings for outside durability and a 3-postion handle that controls up, down and neutral. Complete with an inside straddle of 50” and an outside straddle is 64”.
| Model | NPT10-2 | ||
| Capacity | Q | kg/lbs | 1000/2200 |
| Fork lowered height | h | mm/inch | 80/3" |
| Fork raised height | H | mm/inch | 180/7" |
| Fork length | LP | mm/inch | 810/32" |
| Overall fork spead width | F | mm/inch | 240-680/9.5"-26" |
| Size of individual fork | s*e | mm/inch | 100*50/4"x2" |
| Usable width between outriggers | D | mm/inch | 1210/48" |
| Wheelbase | L | mm/inch | 850/33.5" |
| The height to the bulk head | E | mm/inch | 525/20" |
| Overall length | A | mm/inch | 1245/49" |
| Overall width | B | mm/inch | 1625/64" |
| Overheight | C | mm/inch | 1280/51" |
| Load wheel | mm/inch | Ø432x130/Ø17"x5" | |
| Steer wheel | mm/inch | Ø267x87/Ø10.5"x3.4" | |
| Net Weight | kg/lbs | 145/320 |
