| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | ISO9001/ CE |
| Model Number: | EPT20-15ET / EPT20-20ET / EPT20-30ET |
| Minimum Order Quantity: | 1 set |
| Price: | 1500-1600 usd / set |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 weeks |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Set/Month |
| Product Name: | EPT20-15ET EPT20-20ET EPT20-30ET Electric Pallet Truck 1.5-3 Ton | Type: | Electric Forklift |
|---|---|---|---|
| Warranty: | 1 Year | Power Souce: | AC Motor |
| Color: | Red | Lift Drive / Actuation: | Electric Motor |
| Material: | High Strength Manganese Steel | Loading Capacity: | 1500-3000kg |
| Overall Length: | 1638/1638/1810mm | Fork Width: | 560/685 Mm |
| Net Weight: | 164/200/300kg | After-sales Service Provided: | Video Technical Support,Free Spare Parts |
| High Light: | 3000kg electric pallet trolley,AC Motor electric pallet trolley,3000kg electric pedestrian pallet truck |
||
Feature:
1.Creep speed.
The Sinolift allows the truck to manoeuvre in confined areas with the tiller in an upright position, normally one of the braking zones. By activating the Creep speed button, easily accessible by either hand, a top speed of 1.5 km/h is set for the truck. The operator can then freely operate and easily manoeuvre the truck on a tail-lift while loading or unloading.
2.Power and Performance.
Curtis solid state controllers provide smooth acceleration and seamless directional control. Its Regenerative Braking feature adds energy back to the battery to improve efficiency.With AC Power, you will benefit from faster acceleration,more torque, higher efficiency, and lower maintenance
costs due to the brush-less design.
3.Long tiller & low mounting.
A long tiller arm with a low mounting point ensures a large safety clearance between operator and chassis, as well as providing light steering
for sharp corners.
Specification:
| Model designation | EPT20-15ET | EPT20-20ET | EPT20-30ET | |
| Drive Unit | Battery | Battery | Battery | |
| Operator Type | pedestrian | pedestrian | pedestrian | |
| Load capacity | Q (kg) | 1500 | 2000 | 3000 |
| Load center | c (mm) | 600 | 600 | 600 |
| Load distance | x | 883/946 | 883/946 | 877/940 |
| Wheelbase | y | 1202/1261 | 1202/1261 | 1206/1264 |
| Service weight (Incl. battery) | kg | 164 | 200 | 400 |
| Axle loading, laden driving side/loading side | kg | 536/1128 | 536/1128 | 2235/1165 |
| Axle loading, unladen driving side/loading side | kg | 124/40 | 124/40 | 263/137 |
| Tyre type,operator side/ load side | PU/PU | PU/PU | PU/PU | |
| Tyre size,driving wheels (Diameter x width) | mm | Φ210x75 | Φ210x75 | Φ250x80 |
| Tyre size,loading wheels (diameter x width) | mm | 2 X Φ80x60 | 2 X Φ80x60 | 4 X Φ85x65 |
| Wheels, number operator/load side (x=drive wheels) | mm | 1 x/4(1x/2) | 1 x/4(1x/2) | 1 x/4(1x/2) |
| Track width, front,driving side | b10 (mm) | 448 | 448 | 520 |
| Track width, rear,loading size | b11 (mm) | 410(535) | 410(535) | 482(597) |
| Lift height | h3 (mm) | 115 | 115 | 115 |
| Height drawbar in driving postion Min./Max. | h14(mm) | 750/1170 | 750/1170 | 750/1200 |
| Fork height, lowered | h13 (mm) | 80 | 80 | 85 |
| Overall length | l1 (mm) | 1638 | 1638 | 1810 |
| Length to face of forks | l2(mm) | 488 | 488 | 590 |
| Overall width | b1/ b2 (mm) | 560(685) | 560(685) | 694 |
| Fork dimensions | s/ e/ l (mm) | 50/150/1150 | 50/150/1150 | 60/160/1220 |
| Fork spread, min/ max | b5 (mm) | 560(685) | 560(685) | 560(685) |
| Ground clearance,center of wheelbase | m2(mm) | 30 | 30 | 31 |
| Aisle width, 1000×1200 pallet crossways | Ast (mm) | 1739 | 1739 | 1840 |
| Aisle width, 800×1200 pallet crossways | Ast (mm) | 1939 | 1939 | 1950 |
| Outer turning radius | Wa (mm) | 1485 | 1485 | 1780 |
| Travel speed, laden/ unladen | km/ h | 4/4.5 | 4/4.5 | 4/4.5 |
| Lifting speed, laden/ unladen | m/ s | 0.027/0.038 | 0.027/0.038 | 0.027/0.038 |
| Lowering speed, laden/ unladen | m/ s | 0.059/0.039 | 0.059/0.039 | 0.059/0.039 |
| Maximum gradeability, laden/ unladen S2 5 min. | % | 5/16 | 5/16 | 6/10 |
| Service brake | Electromagnetic | |||
| Drive motor rating S2 60 min. | kw | 0.65 | 0.75 | 1.5 |
| Lift motor rating at S3 15% | kw | 0.84 | 0.84 | 1.5 |
| The maximum allowed size battery | mm | 265*185*215 | 265*185*215 | 330*170*215 |

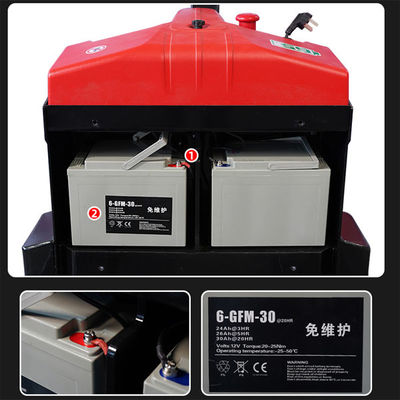

| Battery voltage/ rated capacity (5h) | V/ Ah | 2x12/65 | 4x12/30 | 2x12/100 |
| Battery weight | kg | 2x22.5 | 4x14 | 2x36 |
| Type of drive control | DC | DC | AC | |
| Steering type | Mechanical | |||
| Sound level at operator's ear | dB (A) | 70 | ||
