| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | ISO9001/ CE |
| Model Number: | DTF450A |
| Minimum Order Quantity: | 5 |
| Price: | 380-400USD/ Set |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Set/Month |

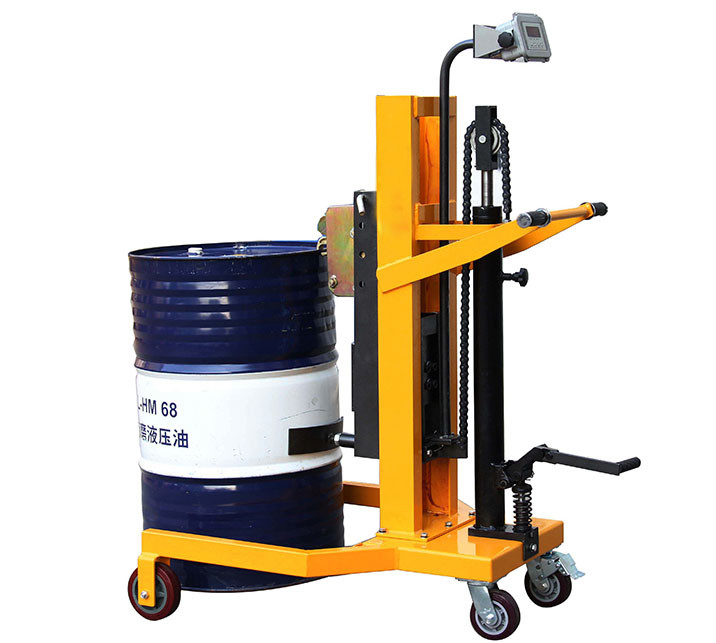

| Product Name: | DTF450A Hydraulic Drum Truck 450kg With 30-55 Gallon Steel Oil Drum | Product Type: | Drum Lifter |
|---|---|---|---|
| Load Capacity: | 450kg | Drum Size: | 55 Gallon Steel Drum Or 210L Plastic Drum |
| Lifting Height: | 600mm China Manual Hydraulic Drum Porter | Outline Dimensions: | 1080x850x1370mm |
| Front Wheel: | 150x50(PU) | Rear Wheel: | 125x50(PU) |
| Inner Width Of Front Leg: | 670mm | Outer Width Of Front Leg: | 850mm |
| Material: | Special Steel | Warranty: | 1 Year |
| Highlight: | 55 Gallon drum truck dolly,450kg drum truck dolly,210L hydraulic barrel lifter |
||
Feature:
High quality cylinder, saving effort and fast.
Automatic clamping oil drum in the lifting process, safe and reliable work.
It is suitable for stacking oil drums in the corner of the pallet for operation, from the diagonal direction of the pallet to transport oil drums.
Can enter the weighing depth of 550mm, applicable to the weighing width of 680mm, height of 180mm.
The front leg can be customized according to customer needs.
Specification:
| Model | DTF450A | DTF450A-1 with scale | |
| Capacity | kg | 450 | 450 |
| Lift height | mm | 600 | 600 |
| Overall dimension | mm | 1080×850×1370 | 1080×850×1370 |
| Front wheel | mm | Φ150×50 | Φ150×50 |
| Rear-wheel | mm | Φ125×50 | Φ125×50 |
| Inside width of front wheel | mm | 670 | 670 |
| Outside width of front wheel | mm | 850 | 850 |
| Net weight | kg | 103 | 120 |
