| Place of Origin: | China |
|---|---|
| Brand Name: | sinolift |
| Certification: | CE |
| Model Number: | DG1080 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Set/Month |

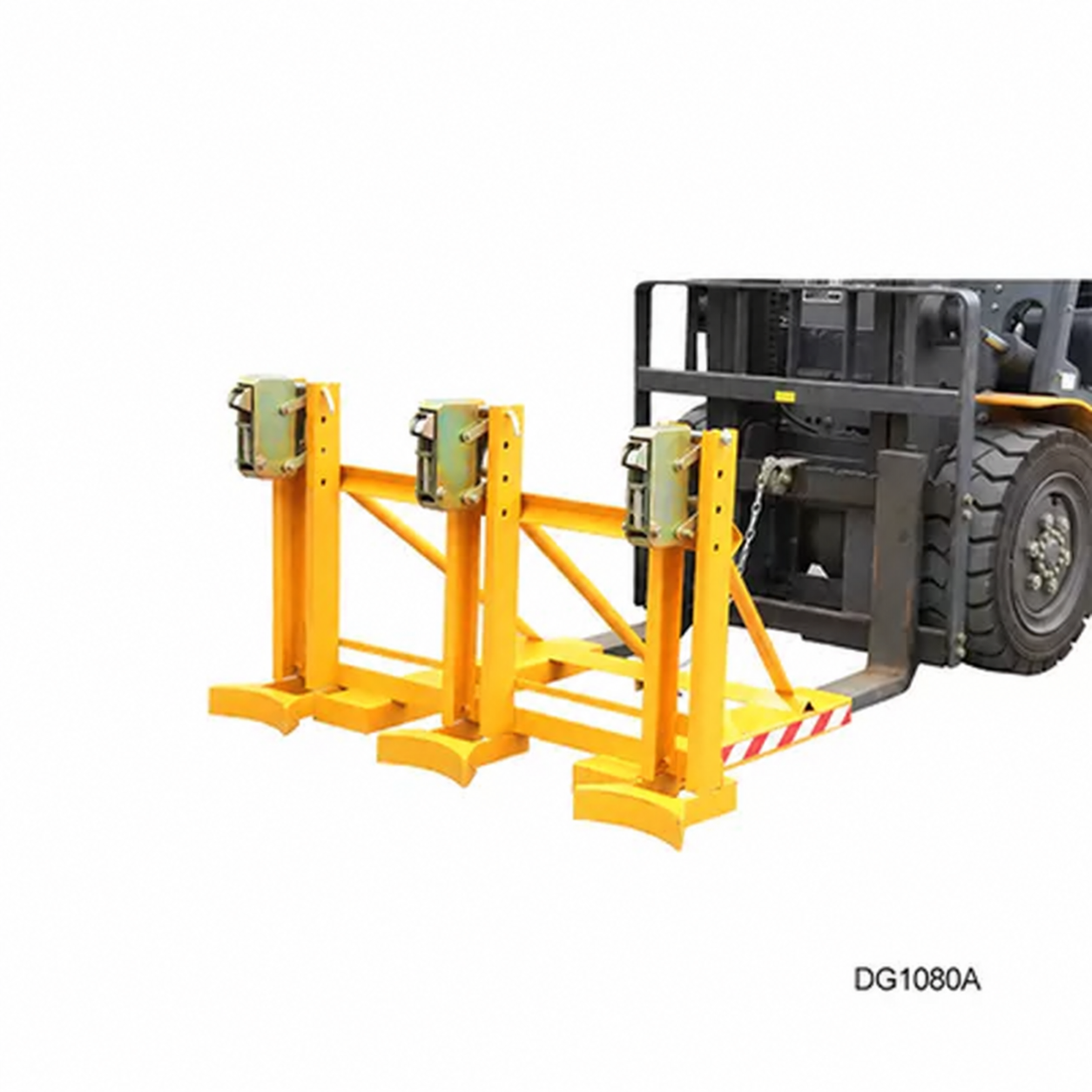

| Product Name: | DG1080A DG1080B Mechanical Drum Grabber Forklift Automatic Clamping Capacity 450kg | Rated Capacity: | 450kg |
|---|---|---|---|
| Load Center: | 1150mm | Grab Min. Height: | 525mm |
| Grab Max. Height: | 750mm | Foks Leg (length*width): | 150X55mm |
| Straddle Length: | 900 | Overall Size: | 1110X1520X850mm |
| Certification: | CE,ISO9001 | Net Weight: | 98kg |
| Warranty: | 1 Year | After Service: | On-line Service,free Spart Parts |
| Highlight: | 450kg drum grabber forklift,Mechanical drum grabber forklift,450kg 55 gallon drum grabber |
||
Feature:
1.Grab, lift, move and place drums without the operator leaving driver's seat;
2.Completely Mechanical and Automatic drum grab requires no hydraulic or electrical connections;
3.Automatic clamping mechanism for handling steel and plastic drums in high volume applications
4.Carriage mounted models are available to mount directly on the carriage ofmost lift trucks for tight aisle applications;
5.Can handle 1,2,3 drums simultaneously;
6.Totally enclosed fork pockets with attached safety chain and cam lock secures.
Specification:
| Model | DG1080A | DG1080B | |
| Capacity | kg | 360*3 | 360*3 |
| Net Weight | kg | 98 | 123 |
| Overall Size | mm | 1080*1520*850 | 1110*1520*850 |
| Load Center | mm | 1150 | 1150 |
| Grab Min. Height | mm | 525 | 465 |
| Grab Max. Height | mm | 750 | 690 |
| Grab Middle Height | mm | 675--600 | 615--540 |
| Foks leg (length*width) | mm | 150*55 | 150*55 |
| Straddle inner Width | mm | 670 | 670 |
| Staddle outline Width | mm | 990 | 990 |
| Straddle Length | mm | 900 | 900 |
