| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | CBD |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 sets/mouth |

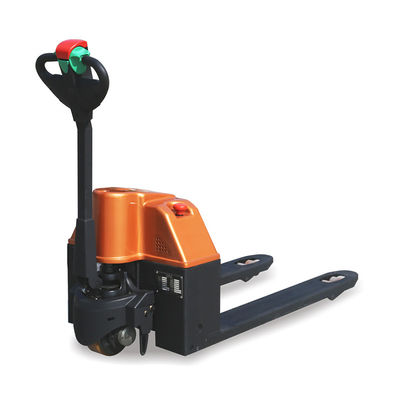

| Product Name: | CBD15A Acid Battery Operated Pallet Truck Capacity 1500Kg | Rated Capacity: | 1500kg |
|---|---|---|---|
| Load Center: | 600mm | Maximum Lifting Height: | 205mm |
| Wheelbase: | 1322mm | Fork Length: | 1150/1220mm |
| Fork Width: | 160mm | Turning Radius: | 1480mm |
| Voltage: | 24V | Weight (with Battery): | 205kg |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
Feature:
Use high quality assembly from industry's mature suppliers to ensure the funciton of the truck's power system and its stabilty.
1.Strong power, effort saving
Capacity 1.5 ton, reaching most customers' demands in goods transit.
Comparing to the hand pallet truck, more efficienct and covenient while lifting, lowering and walking.
2.Solid and durable
High quality assembly result in longer truck operation life.
Solid body frame.
Specification:
| Model | CBD15A | |||
| Performance | Maximum load capacity | Q | kg | 1500 |
| with load center at | C | mm | 600 | |
| Maximum lifting height | H3 | mm | 205 | |
| Travel speed (without load) | km/h | 4 | ||
| Travel speed (with load) | km/h | 3.5 | ||
| Lifting speed (without load) | mm/s | 30 | ||
| Lifting speed (with load) | mm/s | 35 | ||
| Ascend slope ability (without load ) | % | 10 | ||
| Ascend slope ability (with load ) | % | 3 | ||
| Weight (with battery) | kg | 210 | ||
| Dimensions | Overall length of frame | L | mm | 1608 |
| Overall width of frame | B | mm | 685 | |
| Wheelbase | Y | mm | 1322 | |
| Outer fork width | b5 | mm | 540/685 | |
| Fork length | mm | 1150/1220 | ||
| Fork width | mm | 160 | ||
| Fork lowered height | S | mm | 85 | |
| Min frounf height | mm | 35 | ||
| Steering wheel working height | h14min | mm | 920 | |
| h14max | mm | 1260 | ||
| Turning radius | Wa | mm | 1480 | |
| Min intersecting aisle width | Asts | mm | 1950 | |
| Tire | Front wheel | mm | Φ80x60 | |
| Drive wheel | mm | Ф210x70 | ||
| Wheel material | polyurethane | |||
| Electrical components | Drive motor type | AC series motor | ||
| Rated output | kw | 0.75 | ||
| Hoist motor type | DC series motor | |||
| Rated output | kw | 0.8 | ||
| battery | Voltage | V | 24 | |
| Capacity | AH | 75/80 | ||
| Weight | kg | 25/27 | ||
