| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | NPG |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

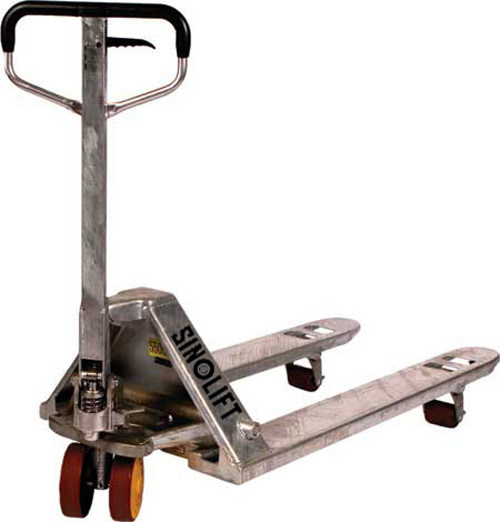

| Product Name: | NPG Hot-Galvanized Hand Pallet Truck Loading Capacity 2000kg | Loading Capacity: | 2000kg |
|---|---|---|---|
| Min. Fork Height: | 85mm | Max. Fork Height: | 200mm |
| Steering Wheel: | Φ200x50mm | Load Roller Single: | Φ82x93mm |
| Load Roller Tandem: | Φ82x70mm | Size Of Fork: | 160X60mm |
| Width Overall Forks: | 520/540/685mm | Fork Length: | 1100/1150/1220mm |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| High Light: | Hand Pallet Tilter Lift,Hot Galvanized Pallet Tilter Lift,2000kg Hand Pallet Truck |
||
Feature:
Galvanized, Zinc and Chrome Plated
Designed for corrosive or wet environments these full featured pallet trucks were designed for chemical, pharmaceutical and wash down.
Stainless Steel and Stainless Steel Frame & Forks
Ideal for sanitary, pharmaceutical, medical, food and wet environments. Choose either 304 stainless steel pallet truck for long life in even the most harsh environments.
These pallet trucks are available made with different
types of finishes, For American markets, standard specifications is all with a 5,500 pound capacity and a service range of 2 7/8" to 7 3/4". Forks are 27" wide x 48" long.
Specification:
| Model | NPG20 | NPG25 | |
| Capacity Q | kg | 2000 | 2000 |
| Min. fork height h | mm | 85 | 75 |
| Max. fork height h1 | mm | 200 | 190 |
| Steering wheel | mm | Φ200x50 | Φ180x50 |
| Load roller Single | mm | Φ82x93 | Φ74x93 |
| Load roller Tandem | mm | Φ82x70 | Φ74x70 |
| Size of fork | mm | 160x60 | |
| Width overall forks B | mm | 520/540/685 | |
| Fork length I | mm | 1100/1150/1220 | |
