| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | ET20MH-P-F |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Set/Month |
| Product Name: | ET20MH-P-F Stainless Galvanized Walking Type Hydraulic Pallet Truck Capacity 2000kg | Rated Capacity: | 2000kg |
|---|---|---|---|
| Operation Type: | Walking Type | Load Center Distance: | 600mm |
| Wheelbase: | 1240mm | Lifting Height: | 200mm |
| Vehicle Length: | 1540/1610mm | Vehicle Width: | 540/680mm |
| Lithium Battery: | 24V/25Ah | Drive Motor Power: | 0.75kw |
| Warranty: | 1 Year | After Service: | On-line Service,free Spart Parts |
| High Light: | 2000kg Hydraulic Pallet Truck,Walking Type Hydraulic Pallet Truck,2t electric pallet jacks |
||

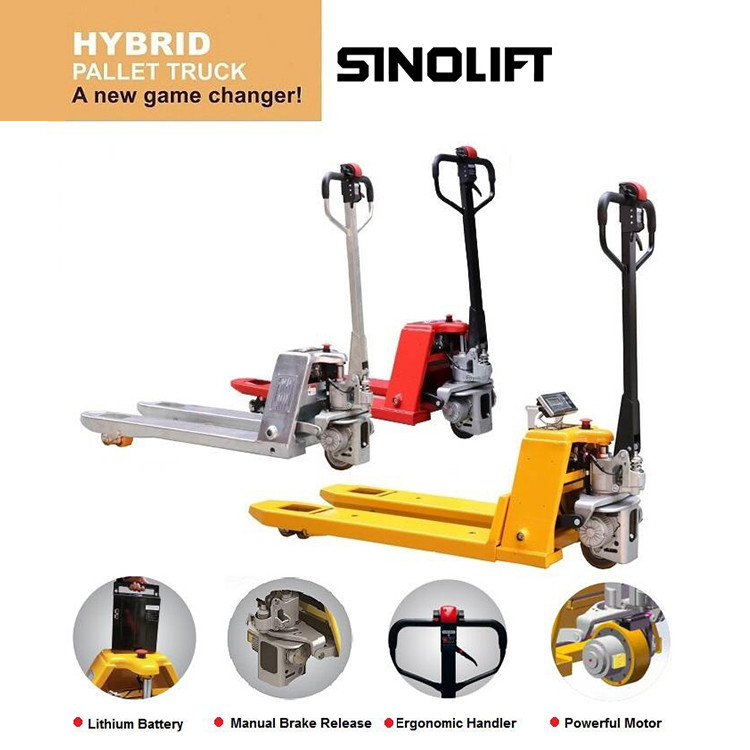

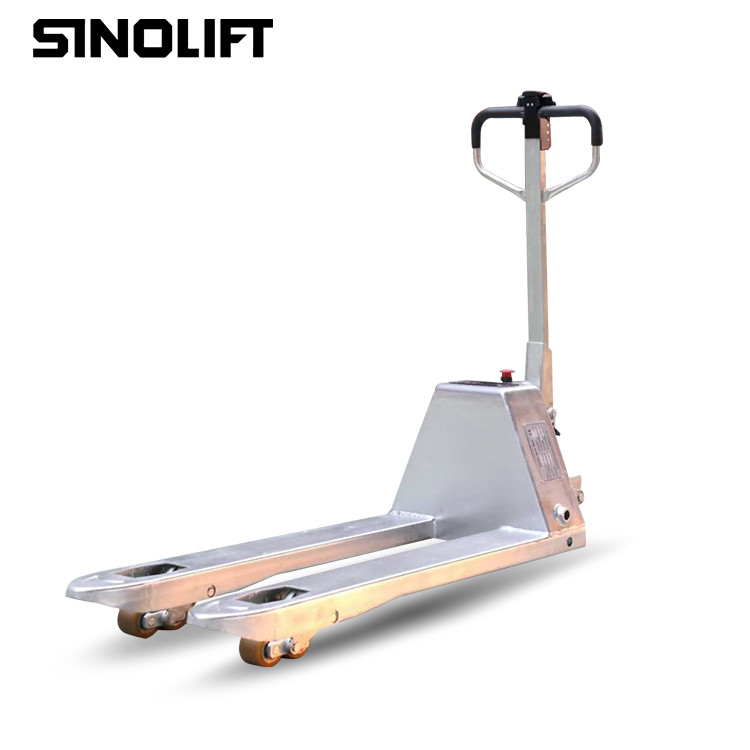

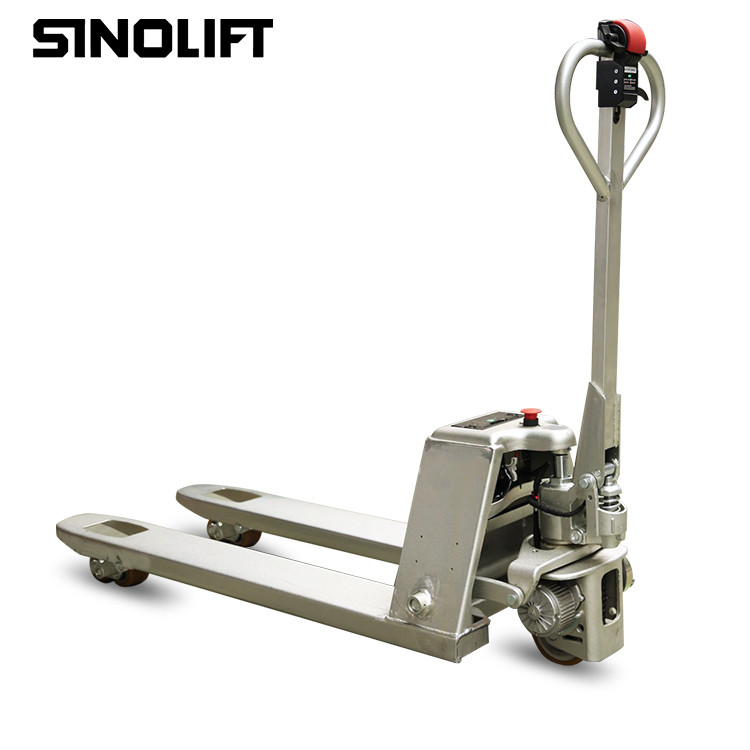

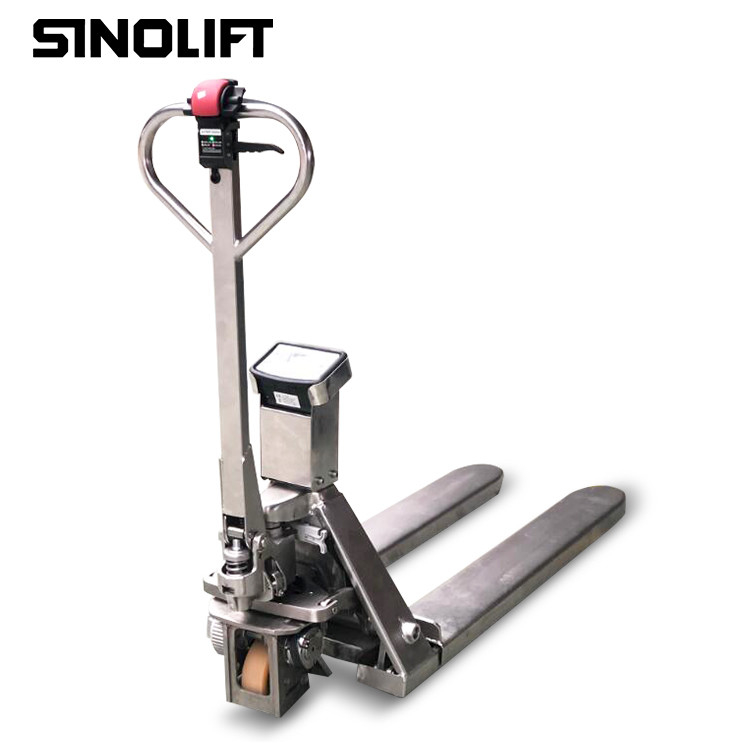

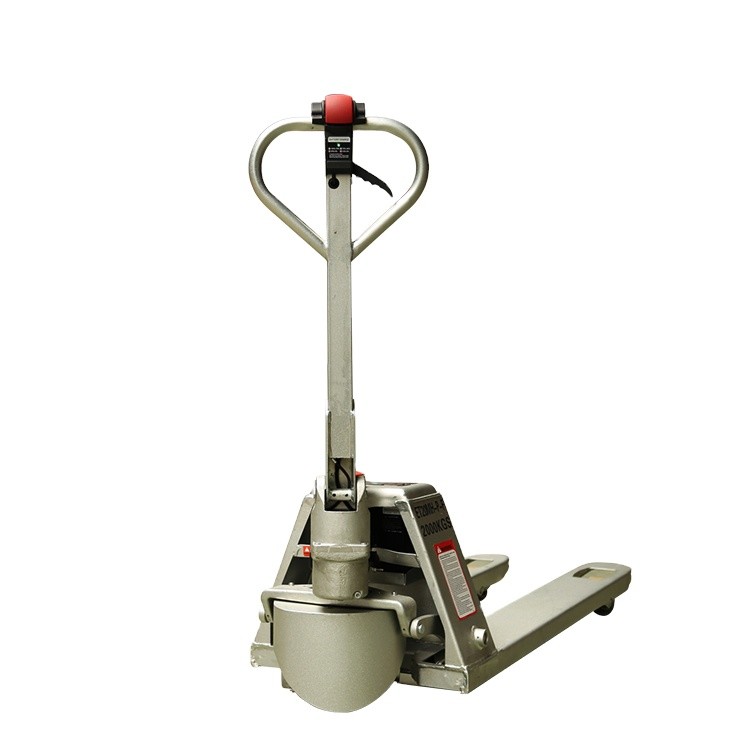

ET20MH-P-F Stainless/Galvanized Steel Electric Hydraulic Pallet Truck
| Model | ET20MH-P-G | ET20MH-P-F | |
| Material | galvanized | stainless steel | |
| Operation type | Walking type | Walking type | |
| Rated Capacity | KG | 2000 | 2000 |
| Load center distance | MM | 600 | 600 |
| Wheelbase | MM | 1240 | 1240 |
| Weight with battery | kg | 135/145 | 135/145 |
| Tyre type | PU | PU | |
| Drive wheel size(D x W ) | mm | 180x70 | 180x70 |
| Carrier wheel size | mm | 80x60 | 80x60 |
| Lifting height | mm | 200 | 200 |
| Vehicle height | mm | 1250 | 1250 |
| Fork height after lowering | mm | 85/76 | 85/76 |
| Vehicle length | mm | 1540/1610 | 1540/1610 |
| Vehicle width | mm | 540/680 | 540/680 |
| Leg width | mm | 540/680 | 540/680 |
| Minimum ground clearance | mm | 30 | 30 |
| Length of vehicle body | 390 | 390 | |
| Turning radius | mm | 1320/1390 | 1320/1390 |
| AST,1000X1200 | mm | 1800 | 1800 |
| AST,800X1200 | mm | 1710 | 1710 |
| Speed (empty/full) | km/h | 4/4.5 | 4/4.5 |
| Gradient(empty/full) | % | 5.0/16.0 | 5.0/16.0 |
| Lifting speed | m/s | 0.025 | 0.025 |
| Lowering speed | m/s | 0.016 | 0.016 |
| Drive motor power | kw | 0.75 | 0.75 |
| Lifting motor power | kw | 0.35 | 0.35 |
| Lithium battery | V/Ah | 24/25 | 24/25 |
| Drive control type | PG | PG | |
| Service brake | Regenerative brake | Regenerative brake | |
| Parking brake | Electromagnetic brake | Electromagnetic brake |
