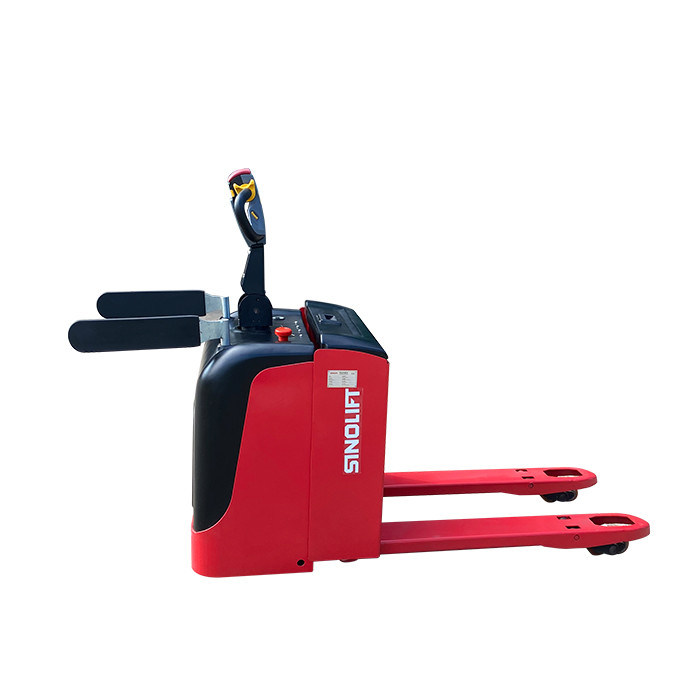

CBD20M Pedestrian Powered Pallet Truck Capacity 2000kg

Basic Information
Place of Origin: China
Brand Name: Sinolift
Certification: CE
Model Number: CBD20M
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sandard Export Package
Delivery Time: 15 days
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 1000 Set/Month
Product Name: CBD20M Pedestrian Powered Pallet Truck Capacity 2000kg Operation Type: Stand-on
Rated Capacity: 2000kg-3000kg Lifting Height: 205mm
Load Center: 600mm Wheelbase: 1410mm
Drive Motor: 1.5kw Battery Voltage: 24V/210Ah
Overall Dimension: 1800X810X1000mm Pump Motor: 0.8kw/2.2kw
Warranty: 1 Year After Service: On-line Service,free Spart Parts
High Light:

205mm electric pedestrian pallet truck


Stand On electric pedestrian pallet truck


205mm pedestrian powered pallet truck




Pedestrian Pallet Truck Highlights:

· Enhanced stability and resistance to wear and torsion thanks to the heavy duty steel drive frame featuring 10 mm thick welded rear plate, robust fork bodies, pull rods and torsion bar

· The enclosed full AC drive motor is vertically mounted with easy service access and is well protected from splashes and debris

· The cover is made of a durable engineered thermoplastic elastomer, which is flexible, resistant to chipping and provides excellent protection of components

· Shortened, mid-mounted handle positions the operator closer to the truck giving excellent visibility of the load and the fork tips when entering a pallet

· Easy to operate and manoeuvre in tight spaces, particularly in a trailer

· Adjustable performance settings to suit the application

· Operators can transport and lift a pallet in one fluid and seamless movement with the exclusive Intelligent Lift™ option

· A ‘creep speed button’ slows the truck’s travel speed for enhanced control and can be selected without having to stop the truck

· The Intelligent Slow Down™ option can further improve load stability and operator confidence by reducing the maximum speed once the angle of cornering has reached 30°

· Battery side extraction is available as an option on the P1.8-2.2 models, making changing the battery a simple and quick operation, to assist in more intensive applications

· Optional on-board charger is enclosed within the drive frame, protected from the harsh elements and washing down

· Excellent serviceability thanks to easily accessible and intelligently designed components, along with a display showing diagnostic service codes, helps to minimise downtime during routine maintenance




Model     CBD20M CBD25M CBD30M
Power Type     Electric Electric Electric
Operation Type     Stand-on Stand-on Stand-on
Steering Mode     Electric Power Steering
Load Capacity Q kg 2000 2500 3000
Load Center C mm 600 600 600
Wheelbase y mm 1410 1410 1410
Total Weight(With Battery)   kg 650 650 650
Axle Load( Loaded):rear/front   kg 900/1750 1070/2080 1245/2425
Axle Load( Unloaded):rear/front   kg 545/105 545/105 545/105
Overall Length L1/L2 mm 1800/2265 1800/2265 1800/2265
Overall Width W1 mm 810 810 810
Fork Size l/e/s mm 1150×170×55 1150×170×55 1150×170×55
Width of Fork b2 mm 540/685 540/685 540/685
Ground Clearance at Fork h3 mm 85 85 85
Lifting Height h2 mm 205 205 205
Ground Clearance at center of wheelbase m1 mm 55 55 55
Height of Operating Handlebar(Min./Max.) h14 mm 1000/1380 1000/1380 1000/1380
Turning Radius(Footboard Fold/Unfold) Wa mm 1660/2100 1660/2100 1660/2100
Right Stack Aisle Width Ast mm 2400/2840 2400/2840 2400/2840
(Pallet size 1000*1200,Footboard Fold/Unfold)
Right Stack Aisle Width Ast mm 2315/2755 2315/2755 2315/2755
(Pallet size 800*1200,Footboard Fold/Unfold)
Tyre Type     Polyurethane Polyurethane Polyurethane
Tyre Size(Front)   mm Φ85*70 Φ85*70 Φ85*70
Tyre Size(Balance Wheel)   mm Φ115*55 Φ115*55 Φ115*55
Tyre Size(Driving Wheel)   mm Φ230*75 Φ230*75 Φ230*75
Tyres Number front/rear(x=drive wheel)     4/1x+2 4/1x+2 4/1x+2
Drive Damping Method     Drive frame integral rail type spring shock absorption
Traveling Speed(Loaded/Unloaded)   Km/h 7.5/8 6.0/7 5.0/7
Lifting Speed(Loaded/Unloaded)   mm/s 22/35 22/30 22/30
Lowering Speed(Loaded/Unloaded)   mm/s 30/26 30/26 30/26
Max. Gradeability(Loaded/Unloaded)   % 8/15 8/15 6/15
Service Brake Type     Electromagnetic/Regeneration
Parking Brake Type     Electromagnetic
Drive Motor Power(AC)   KW 1.5 1.5 1.5
Pump Motor Power(DC)   KW 0.8 0.8 2.2
Battery Voltage/Capacity K5   V/Ah 24V/210 24V/210 24V/240
Battery Weight   kg 188 188 210
Controller Brand     CURTIS CURTIS CURTIS
Controller Model     1232E 1232E 1232E
Noise Level   dB 70 70 70
