| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | NPHE |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

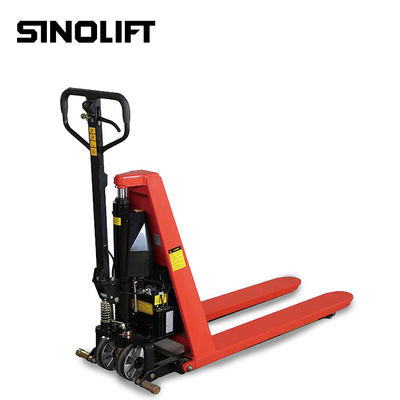

| Product Name: | NPHE Scissors Lift Manual Pallet Truck Load Capacity 1000Kg Or 1500kg | Load Capacity: | 1000Kg/1500Kg |
|---|---|---|---|
| Min.Fork Height: | 85mm | Max. Fork Height: | 800mm |
| Fork Length: | 1140X520 Mm | Fork Width: | 1100X680mm |
| Size Of Fork: | 162X50mm | Battery Volgage: | 12V |
| Electricity Volume: | 63Ah | Working Pressure Of Pump Station: | 21Mpa |
| Charger: | 10A | Warranty: | 1 Year |
Feature:
Powered by 12 voltage battery, Driven by American "Monarch" pump station or French "HPI" Pump station.
Used as both a work table and pallet truck.
10-12 seconds pumping from the bottom to the top.
safety overload system prevents the truck from being used beyond its rated capacity.
The Handle can be restored to its upright position automatically once you let it free.
Lifting motor power is: 1.1kw.
Easy placing of load to correct ergonomic work height.
| Model | NPHE1000 | NPHE1500 |
| Capacity | 1000KG | 1500KG |
| Lowest Fork Height | 85MM | 85MM |
| Max. Fork Height | 800MM | 800MM |
| Fork Length X Fork Width | 1140X520 or 1140X680MM | 1100X520 or 1100X680MM |
| Diameter of front wheel | Ø75X50MM | Ø75X50MM |
| Diameter of Rear Wheel | Ø150X50MM | Ø150X50MM |
| Lifting time in Full Range(s) | 1012 | 18 |
| Size of Fork | 162X50MM | 162X50MM |
| Descending Speed | <0.1M/S | <0.1M/S |
| Motor Working Voltage | 12V | 12V |
| Battery Volgage | 12V | 12V |
| Electricity Volume | 63Ah | 63Ah |
| Working pressure of Pump Station | 15Mpa | 21Mpa |
| Imput/output Voltage of Charger | 200-240/12V | 115-230/12V |
| Service Weight | 118 / 128KG | 145 / 155KG |
| Max. Charging Current of Charger | 10A | 10A |
| Price (FOB Shanghai) | US$1,340 | US$1,380 |
