| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | NPHD |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 5000 sets/mouth |

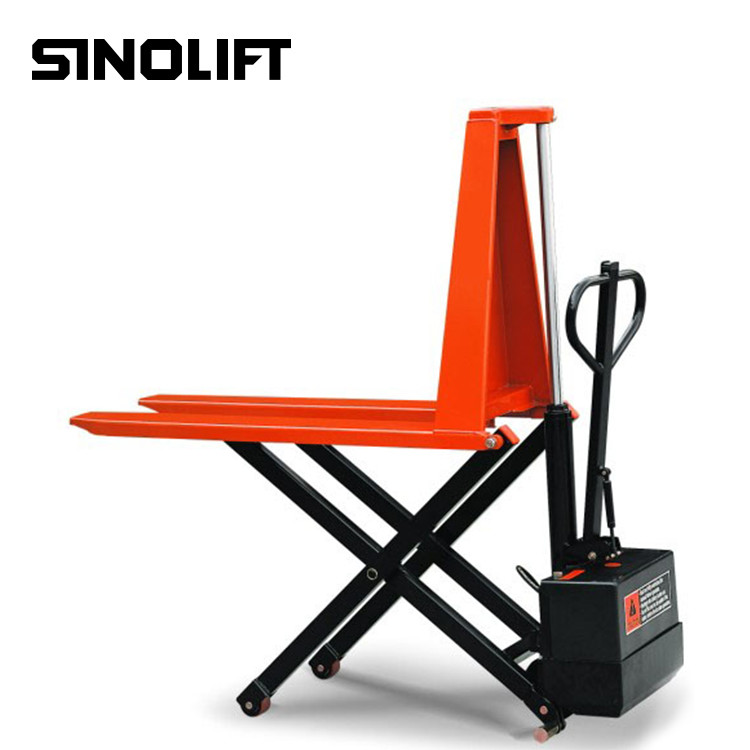

| Product Name: | Industrial Material Handling Equipment NPHD Hi-lift Pallet Truck Loading Capacity 1-1.5 Ton | Load Capacity: | 1-1.5 Ton |
|---|---|---|---|
| Min. Fork Height: | 85mm | Max. Fork Height: | 800mm |
| Fork Length X Fork Width: | 1140X520mm | Size Of Fork: | 162X50mm |
| Motor Working Voltage: | 12V | Battery: | 12V/63Ah |
| Working Pressure Of Pump Station: | 15 Mpa | Charger: | 12V/10A |
| Net Weight: | 118/128Kg | Warranty: | 1 Year |
| High Light: | EN1757-4 Industrial Material Handling Equipment,12v Battery Powered Material Handling Equipment,EN1757-4 high lift pallet truck |
||
Feature:
1. Powered by 12 voltage battery, driven by a good effective pump station
2. Used as both a work table and pallet truck
3. 10-12 seconds pumping from the bottom to the top
4. Safety overload system prevents the truck from being used beyond its rated capacity
5. The handle automatically returns to its upright position when released.
6. Lifting motor power is 1.1kw
7. Conforms to EN1757-4
Economic version but reliable.
High quality power unit made in USA.
Top quality power unit made in Europe.
Safety: Patented safety system on handle to prevent accidental tough of the release handle thus causing suddent sllding down of the fork, you can screw the release handle tight in slow or quick lifting position.
Conforms to EN1757-4.
Specification:
| Model | NPHD1000 | NPHD1500 | |
| Capacity | kg | 1000 | 1500 |
| Min. Fork Height | mm | 85 | 85 |
| Max. Fork Height | mm | 800 | 800 |
| Fork Length X Fork Width | mm | 1140X520 or 1140X680 | 1100X520 or 1100X680 |
| Front wheel | mm | Ø75X50 | Ø75X50 |
| Rear Wheel | mm | Ø150X50 | Ø150X50 |
| Lifting time in Full Range | S | 10/12 | 18 |
| Size of Fork | mm | 162X50 | 162X50 |
| Descending Speed | m/s | <0.1 | <0.1 |
| Motor Working Voltage | V | 12 | 12 |
| Battery | V/Ah | 12/63 | 12/63 |
| Working pressure of Pump Station | Mpa | 15 | 21 |
| Charger | V/A | 12/10 | 12/10 |
| Service Weight | kg | 118 / 128 | 145 / 155 |
| Pcs/20" Container | pcs | 108 | 84 |
