| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | TFL |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

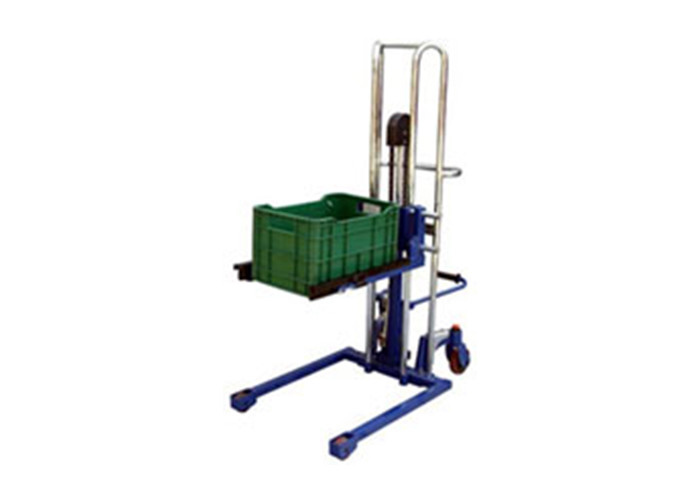

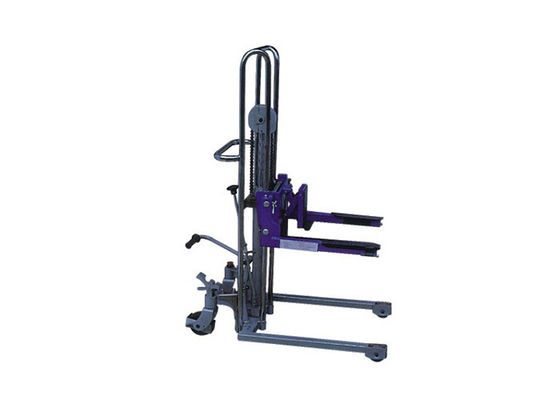

| Product Name: | TFL Container Hydraulic Stacker With Controllable Direction Handle With Capacity 150Kg | Model: | TFL |
|---|---|---|---|
| Capacity: | 150Kg | Lifting Height: | 1220mm |
| Min. Height: | 90mm | Net Weight: | 55Kg |
| Certification: | CE,ISO9001 | Color: | Red,Green,Blue,White Etc |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| High Light: | Controllable Direction Handle Mini Pallet Stacker,150kg Mini Pallet Stacker,dual pump Hydraulic Stacker |
||
Feature:
1.Idear for use in narrow aisles an confined spaces.
2.Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets.etc.
3.Small turning radius make it easier to make sharp turns.
4.Controllable direction handle.
5.Has a dual pump for easier lifting.
Specification:
| Model | TFL150-SL | TFL150-SM | TFL150-LL | TFL150-LM | TFL150-TL | TFL150-TM | |
| Capacity | kg | 150 | 150 | 150 | 150 | 150 | 150 |
| Lifting Height | mm | 850 | 1200 | 787 | 1137 | 870 | 1220 |
| Min. Height | mm | 70 | 70 | 70 | 70 | 90 | 90 |
| L | mm | 500 | 500 | 650 | 650 | 510 | 510 |
| C | mm | 202 | 402 | 254 | 454 | 240 | 440 |
| D | mm | 280 | 280 | 570 | 570 | 200 | 200 |
| E | mm | 450 | 600 | 450 | 600 | 450 | 600 |
| F | mm | 358 | 508 | 358 | 508 | 358 | 508 |
| G | mm | 953 | 953 | 1045 | 1045 | 953 | 953 |
| K | mm | 536 | 536 | 536 | 536 | 536 | 536 |
| A | mm | 1134 | 1484 | 1134 | 1484 | 1134 | 1484 |
| Net Weight | kg | 51 | 56 | 50 | 55 | 50 | 55 |
