| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | LS |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 5000 sets/mouth |

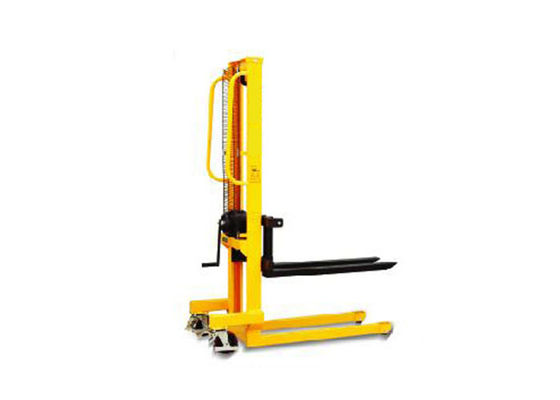

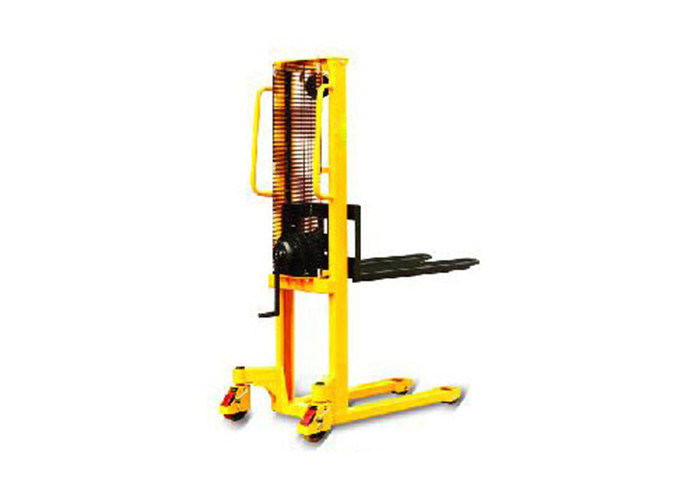

| Product Name: | LS250 LS500 LS1000 Mini Pallet Stacker Capacoty 250-1000Kg | Capacity: | 250-1000Kg |
|---|---|---|---|
| Load Centre: | 575mm | Max.Fork Height: | 1560mm |
| Lowered Fork Height: | 90mm | Fork Adjustable Width: | 160-690mm |
| Fork Width: | 60mm | Fork Length: | 800mm |
| Overall Size: | 1325X725X2030mm | Min.Turning Radius: | 1075mm |
| Effort Force To Rated Load: | 100N | Net Weight: | 140kg |
| High Light: | EN1757-1:2001 Mini Pallet Stacker,Compact Mini Pallet Stacker,C section mast Mini Winch Stacker |
||
Feature:
1.Compact and service free design.
2.Unique design of winch for easier and safe lifting.
3.Heavy duty “C” section mast.
4.Adjustable fork width from 160mm to 690mm (LS250, LS500).
5.Two parking brakes on steering wheels.
6.Conforms to EN1757-1:2001.
Specifiction:
| Model | LS250 | LS500 | LS1000 | |
| Capacity | kg | 250 | 500 | 1000 |
| Load Centre | mm | 400 | 500 | 575 |
| Max.Fork Height | mm | 1560 | 1560 | 1500 |
| Lowered Fork Height | mm | 90 | 90 | 88 |
| Fork Adjustable Width | mm | 150-690 | 160-690 | 540 Fixed |
| Fork Width | mm | 60 | 70 | 160 |
| Fork Length | mm | 800 | 1000 | 1150 |
| Effort Force to Rated Load | N | 100 | 120 | 100 |
| Lifting Height per Stroke | mm | 40 | 22 | 9.5 |
| Ground Clearance | mm | 18 | 18 | 24 |
| Min.Turning Radius (outside) | mm | 1075 | 1075 | 1250 |
| Front Load Roller | mm | Ø80x47 | Ø80x47 | Ø80x94 |
| Steering Wheel | mm | Ø150x40 | Ø150x40 | Ø150x50 |
| Overall Size (LxWxH) | mm | 1325x725x2030 | 1325x725x2030 | 1600x725x1930 |
| Net Weight | kg | 140 | 146 | 182 |
