| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | ALT |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

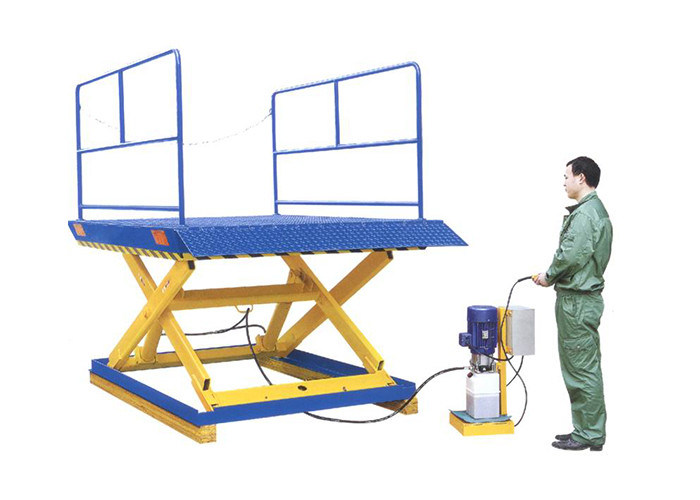

| Product Name: | ALT Electric Load And Unloading Lift Table Lift Platform With Double Acting Hydraulic Cylinders Capacity 1 Ton- 2 Ton | Rated Capacity: | 1Ton-2.7 Ton |
|---|---|---|---|
| Max. Lift Height: | 1700mm | Lifting Height: | 1480mm |
| Table Size: | 2445X1830X195mm | Moter Power: | 1.5/3KW |
| Input Voltage: | 220/380V | Lifting Speed: | 40S |
| Lowering Speed: | <150mm/S | Warranty: | 1 Year |
| After Service: | On-line Service,Spare Parts | ||
| Highlight: | 1.5kw Stationary Lift Platform,3kw Stationary Lift Platform |
||
Feature:
1. Designed for industrial heavy duty applications(as part of a production process,for machine feeding or stacking etc.)
2. Double acting hydraulic cylinders.
3. Lifting limit switch.
4. Alum. table frame protects workers from injury by cutting off power.
Specification:
| MODEL | ALT27 | ALT 10 | ALT 20 | ||
| Capacity | kg | kg | 2700 | 1000 | 2000 |
| Max. lift height | L4 | mm | 1700 | 1080 | 1080 |
| Min. height of table | L3 | mm | 220 | 165 | 165 |
| Lifting height | mm | 1480 | 915 | 915 | |
| Table size | L1 x L2 | mm | 2445x1830x195 | 1220x610x70 | 1220x610x70 |
| Moter power | kw | 3 | 1.5 | 1.5 | |
| Input voltage | V | 220/380 | 220/380 | 220/380 | |
| Lifting speed | S | 40 | 12 | 25 | |
| Lowering speed | mm/s | ＜150 | ＜150 | ＜150 |
