| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | SP |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

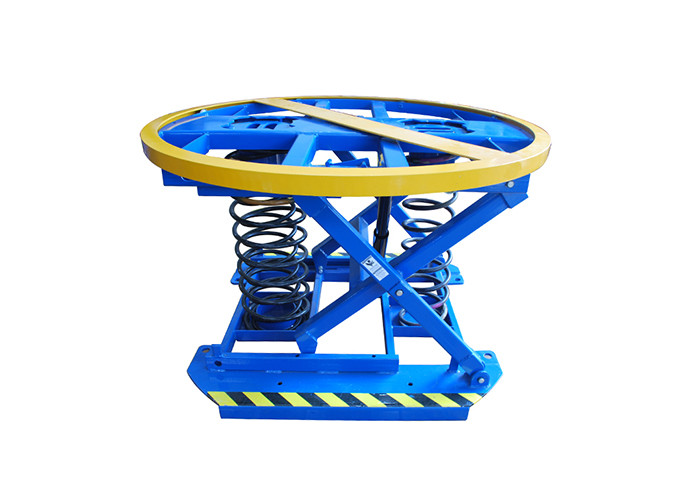

| Product Name: | SP Series Ergonomic Spring Actuated Level Loader 360 Degree Rotating Table Platform Lift Table Capacity 5000Kg-2000Kg | Rated Capacity: | 500-2000kg |
|---|---|---|---|
| Platform Size: | φ1110mm | Base Frame Size: | 915X934mm |
| Color: | Red,Green,Blue,White Etc | Lowered Height: | 240mm |
| Raised Height: | 705mm | Material: | Special Steel |
| Certification: | CE,ISO9001 | Net Weight: | 115/125/150kg |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| High Light: | Spring Actuated Level Loader,360° Rotating Level Loader,Ergonomic Level Loader |
||
Feature:
1. Ergonomic design, easy and efficient stacking operation, saving physical strength
2. When loading, the spring can automatically adjust the height according to the weight of the goods, so that the table top is always kept at a comfortable height for operation;
3. The detachable spring can be used in different combinations and is suitable for stacking with different load
4. scissor structure, better overall stability, and the platform is always horizontal
5. 360 ° rotating table, easy to operate in any direction
6. The base is designed with slotting, which is convenient for the overall movement, handling and loading and unloading
7. Non standard size can be customized according to the demand, and can be made of 304 stainless steel.
Specification:
| Model | SP500 | SP1000 | SP2000 | |
| Rated capacity | kg | 500 | 1000 | 2000 |
| Platform Size | mm | φ1110 | φ1110 | φ1110 |
| Base Frame Size | mm | 915*934 | 915*934 | 915*934 |
| Lowered Height | mm | 240 | 240 | 240 |
| Raised Height | mm | 705 | 705 | 705 |
| Net Weight | kg | 115 | 125 | 150 |
