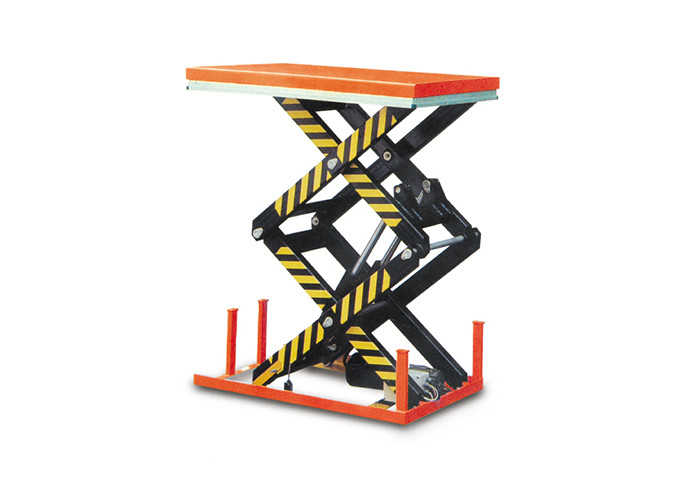

Product Name: | HD Double Scissors Electric Stationary Lift Table Double Scissors Type Stationary Lift Platform Capacity 1 Ton-4 Ton | Model: | HD1000/HD2000/HD4000 |
---|---|---|---|
Loading Capacity: | 1 Ton- 4 Ton | Platform Size: | 1700X1200mm |
Base Size: | 1600X900mm | Min/Max.Height: | 400X2050mm |
Lifting Time: | 55-65mm | Power: | 380V/50Hz,AC2.2KW |
Net Weight: | 520Kg | Material: | Special Steel |
Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
Highlight: | Overload Protection Stationary Lift Platform,380V Stationary Lift Platform,anti clamping hydraulic working platform |
Feature:
1. Heavy duty design, 380V/50HZ AC power source
2. The high quality pump station enables the electric lifting platform to lift goods stably.
3. This hydraulic platform is provided with anti-clamping function and overload protection function.
4. It is fitted with safety wedge block for easy maintenance.
5. The electric lifting platform can be used to facilitate warehousing, transporting, manufacturing and repairing works.
Specification:
Model | HD1000 | HD2000 | HD4000 | |
Capacity | Kg | 1000 | 2000 | 4000 |
Platform Size | mm | 820×1300 | 850×1300 | 1700×1200 |
Base Size | mm | 640×1240 | 478×1220 | 1600×900 |
Table-board | mm | 305/1700 | 360/1780 | 400/2050 |
Min/Max.height | ||||
Lifting time | s | 35-45 | 35-45 | 55-65 |
Power | 380V/50Hz,AC2.2KW | 380V/50Hz,AC2.2KW | 380V/50Hz,AC2.2KW | |
N.W | Kg | 210 | 295 | 520 |
