| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | DTF450C-1 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 5000 sets/mouth |

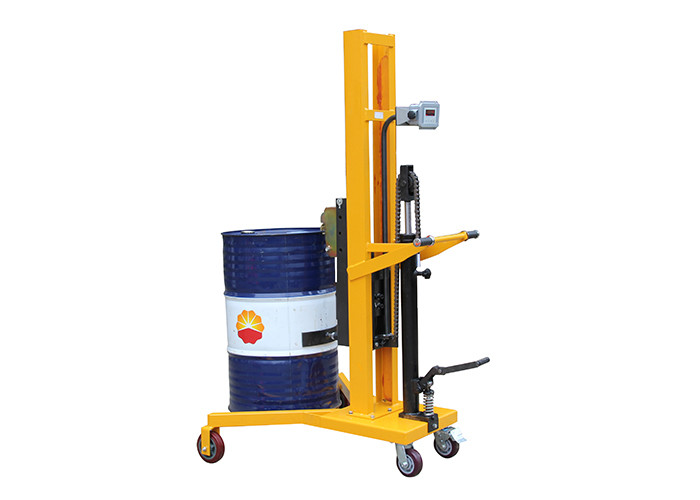

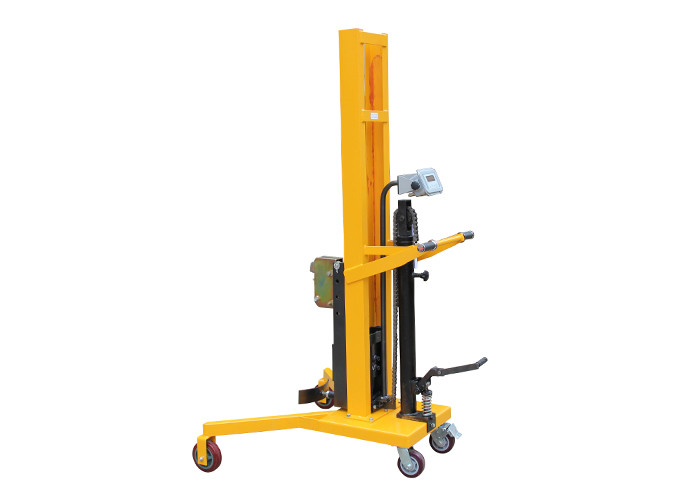

| Product Name: | DTF450C-1 Portable Drum Truck With Scale Loading Capacity 450kg | Model: | DTF450C-1 |
|---|---|---|---|
| Load Capacity: | 450kg | Drum Size: | 30 Gallon Steel Drum (Ø450x700), Gallon Steel Drum (Ø572x900), Or 210L Plastic Drum |
| Lifting Height: | 1100mm | Outline Dimensions: | 1140×950×1870mm |
| Inner Width Of Front Leg: | 920mm | Outer Width Of Front Leg: | 1140mm |
| Net Weight: | 135Kg | Certification: | CE,ISO9001 |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
Feature:

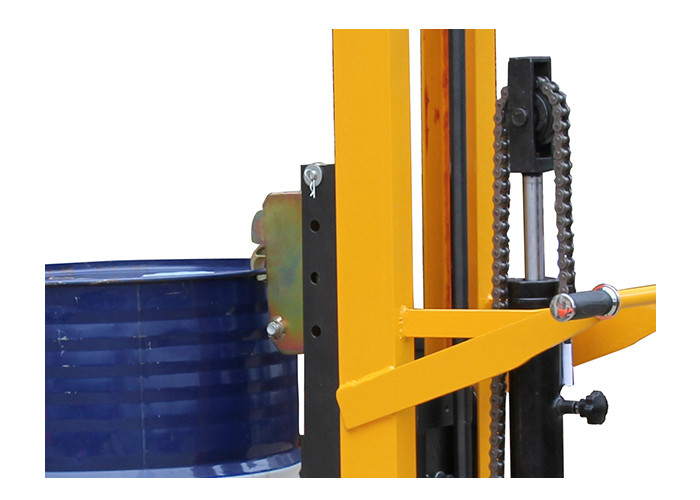

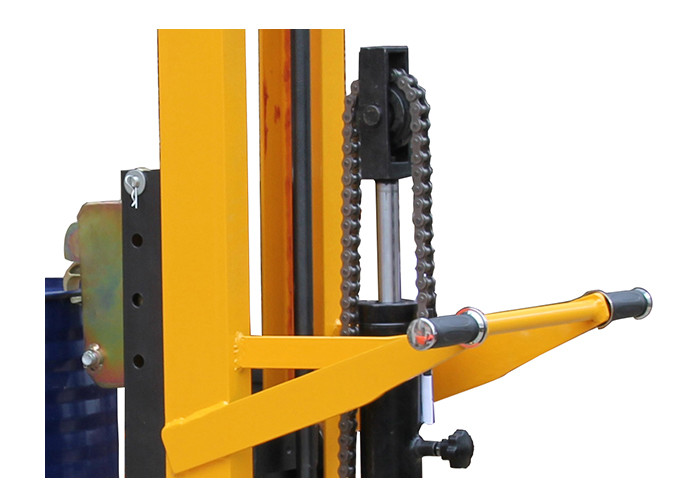

1.Heavy-duty design of 450 KG loading weight; lift with pedals; Ergonomic handle is easy and safe to operate with Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder, maximum lifting height:1100mm
2.Automatic clamping tight the oil drum during lifting which is safety and reliable
3.Fit for handling oil drums placed along pallet edges or corners; carry oil drums from the direction of diagonal line of pallet

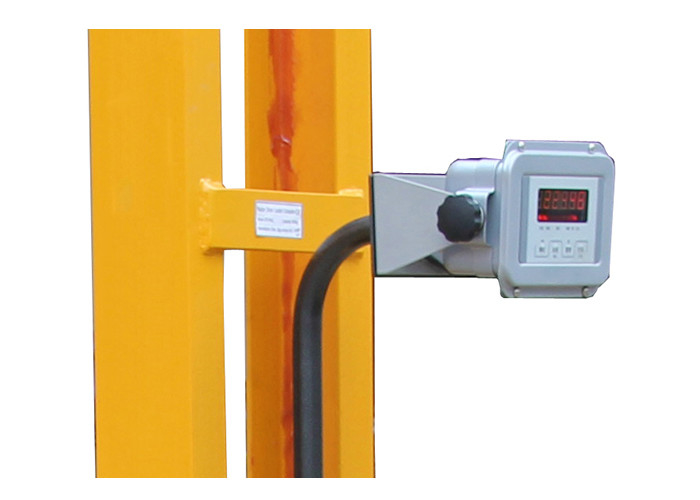

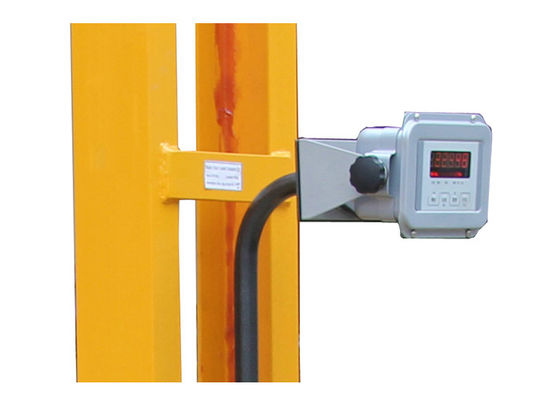

4.With electronic scale built-in; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰
5.Applicable for transferring, weighting, stacking and pallet loading & unloading, etc. of all kinds of oil drums.
Note: Electronic weighting device is built in DTF450C-1; eagle gripper is optional to equip
Specification:
| Model | DTF450C-1 | |
| Load Capacity | kg | 450 |
| Drum Size | 30 Gallon Steel Drum (Ø450x700), Gallon Steel Drum (Ø572x900), or 210L Plastic Drum | |
| Lifting Height | mm | 1100 |
| Outline Dimensions | mm | 1140×950×1870 |
| Front Wheel | mm | Φ150×50(PU) |
| Rear Wheel | mm | Φ125×50(PU) |
| Inner width of Front Leg | mm | 920 |
| Outer Width of Front Leg | mm | 1140 |
| Self-Weight | kg | 135 |
