| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | YL420B |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

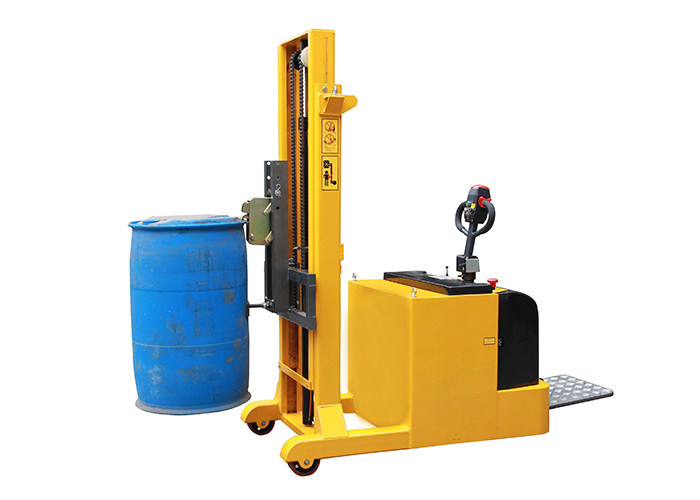

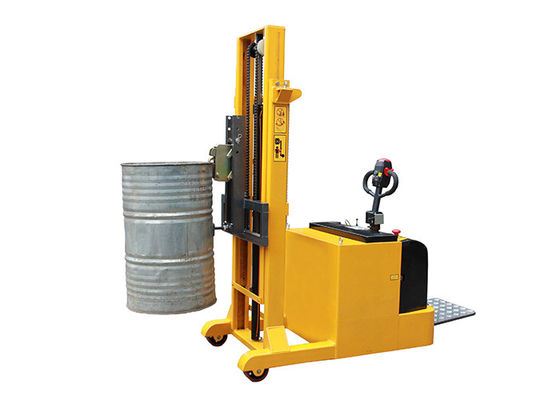

| Product Name: | YL420B Counter Balance Electric Drum Handler Labor Saving Electric Drum Handler Capacity 420Kg | Drive Type: | Electric |
|---|---|---|---|
| Rated Capacity: | 420kg | Lifting Height: | 2400mm |
| Battery Charger: | 24V/30A | Turning Radious: | 2150mm |
| Overall Height: | 1860mm | Drive Motor: | 1.2kw |
| Lifting Motor: | 2.2kw | Service Weight: | 990kg |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| High Light: | counterbalance electric drum handler,one people operated drum transporter,420kg Electric Drum Handler |
||
Feature:
1. Power drive, lift, transport and stack steel drums & Plastic drums.
2. Imported electrical vehicle exclusive walking control system.
3. Manned pedal, can be operated by one people, labor saving and high efficiency.
4. With stepless speed regulator, high power reversing switch, integrated hydraulic pump stations, and power walking driving wheels.
Specification:
| Model | YL420B | |
| Drive Type | / | Electric |
| Operating Type | / | Pedestrian |
| Rated Capacity | kg | 420 |
| Lifting Height | mm | 2400 |
| Overall height | mm | 1860 |
| Overall Length | mm | 2270 |
| Overall Width | mm | 1170 |
| Turning Radious | mm | 2150 |
| Max. Graeability (Landen/unladen) | % | 3/5 |
| Drive Wheel Size | mm | Ø250*80 |
| Wheel material | / | PU |
| Brake | / | Electromagnetic Brake |
| Drive Motor | kw | 1.2 |
| Lifting Motor | kw | 2.2 |
| Noise Level | db(A) | ＜70 |
| Battery Charger | V/A | 24/30 |
| Battery | V/Ah | 24/210 |
| Service Weight | kg | 990 |
| Drum Rotating Range | ° | 135 |
