Place of Origin: | China |
---|---|
Brand Name: | Sinolift |
Certification: | CE |
Model Number: | DTF350A |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Sandard Export Package |
Delivery Time: | 15 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 5000 sets/mouth |

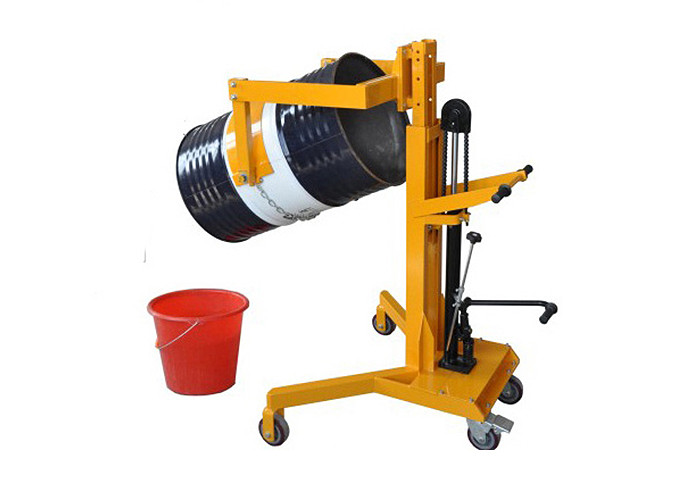

Product Name: | DTF350A Manual Drum Rotating Drum Handler Safe Loading Capacity 350kg | Capacity: | 350Kg |
---|---|---|---|
Lifting Type: | Manual & Pedal | Drum Size: | 30 Gallon (Ø450x700)-55 Gallon ( (Ø572x900) Steel, 210L Plastic |
Drum Tilting Degree: | 90°~180°~360° | Wheel Size: | Φ125×20 |
Outline Dimension: | 1180x1150x1260mm | Net Weight: | 195kg |
Rotating Type: | Manual | Vertical Lifting Height: | 600mm |
Horizontal Lifting Height: | 800mm | Leg Width: | 950mm |
Feature:
A truly quality-built drum handler.
1. Remarkable versatility! Mobile-carrier raises, transports. rotates, tilts and drains fully loaded drums.
2. It carries the full weight of the drum.
3. Dual, fingertip operated locks secure the raised drum. It can lock a drum in vertical position to avoid spills or horizontal position for draining through a faucet. When unlocked, the drum may be turned end-over-end to agitate contents or tipped and held manually at any angle. And it is very simple to move and steer on its polyurethane roller bearing wheels and swivel caster.
4.It is shipped partly disassembled to save freight costs.
Specification:
Model | DTF350A | |
Capacity | kg | 350 |
Drum size | 30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic | |
Rotating type | Manual | |
Lifting type | Manual & Pedal | |
Vertical lifting height | mm | 600 |
Horizontal lifting height | mm | 800 |
Leg Width | mm | 950 |
Wheel | Φ125×20 | |
Drum tilting degree | degree | 90°~180°~360° |
Outline dimension | mm | 1180x1150x1260 |
Net weight | kg | 195 |
