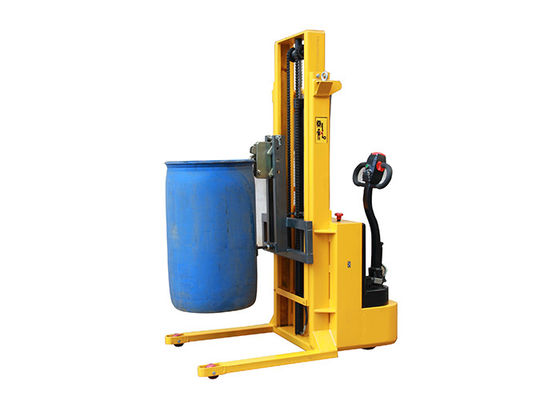

SINOLIFT YL650B Full Electric Drum Lifter Suitable For Transportation and Lifting Load Capcity 650Kg

Basic Information
Place of Origin: China
Brand Name: Sinolift
Certification: CE
Model Number: YL650B
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sandard Export Package
Delivery Time: 15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 sets/mouth
Product Name: SINOLIFT YL650B Full Electric Drum Lifter Suitable For Transportation And Lifting Load Capcity 650Kg Power: Electric
Operating Type: Walkie Load Capacity: 650Kg
Turning Radius: 1650mm Lifting Height: 2400mm
Overall Size: 1450X865X185mm Brake: Electromagnetic Brake
Drive Motor: 1.2KW Lift Motor: 2.2KW
Battery Voltage: 24V/30A Net Weight: 470Kg

1. The snap-on eagle mouth structure is suitable for the transportation, lifting, loading and unloading operations of steel drums. It adopts the imported walking control series for electric vehicles.
2. Walking stepless speed governor, high power reversing switch, integrated hydraulic pump station, high power walking driving wheel.


Model   YL650B
Power / Electric
Operating Type / Walking
Load Capacity Kg 650
Turning Radius mm 1650
Drive Wheel mm 250*80
Tire / PU
Brake / Electromagnetic Brake
Drive Motor kw 1.2
Lift Motor kw 2.2
Battery Voltage V/A 24/30
Battery V/Ah 24/120
Net Weight kg 470
Lifting Height mm 2400
Overall Size mm 1450*865*185
